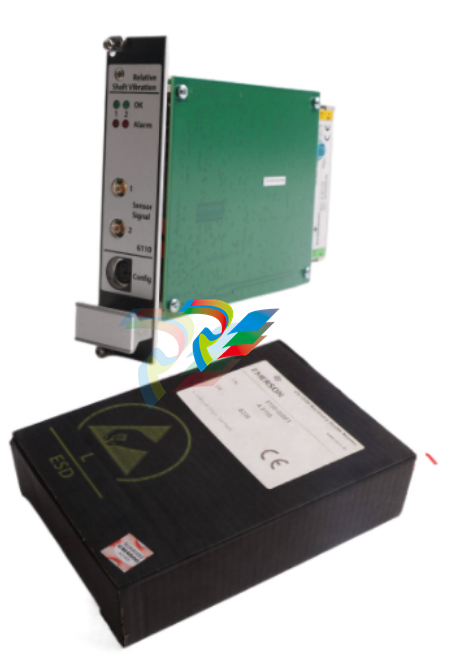

Emerson A6110 shaft Relative Vibration Monitor

The 16-Channel Output Relay Module is designed for high reliability for the plant’s

most critical rotating machinery. This 2-slot monitor is used together with the

AMS 6500 to build a complete API 670 machinery protection monitor. Applications

include steam, gas, compressors and hydro turbo machinery.

Any channel clear, alert or alarm signal can be selected as input to the 16-Channel

Output Relay Module. Use Boolean logic, apply time delay, and select an output relay

to complete the configuration. Easy-to-use software provides graphical logic displays

that guide the user pictorially through configuration.

The AMS 6500 Machinery Health Monitor is an integral part of PlantWeb® and

AMS software. PlantWeb provides operations integrated machinery health combined

with the Ovation® and DeltaV™ process control system. AMS software provides

maintenance personnel advanced predictive and performance diagnostic tools

to confidently and accurately determine machine malfunctions early.

Two separate output schemes are available:

▪ 24 VDC / 10 A / 240 W main and 24 VDC / 10 A / 240 W auxiliary power

▪ 24 VDC / 20 A / 480 W main and 24 VDC / 20 A / 480 W auxiliary power

Benefits of the Ovation power supply scheme include:

▪ Separate main and auxiliary power supplies allow easy replacement

▪ Elimination of cooling fans greatly reduces failure risks

▪ Diode auctioneered power feeds assure continuous power availability

▪ New design increases efficiency, reduces heat generation and enhances equipment life expectancy

▪ Dual input (AC and DC) capability reduces spare parts

▪ Hot-swappable power supplies enable on-line replacement

▪ Quick installation of the power supplies minimizes downtime and production loss ▪ Power factor correction reduces power consumption

Embedding DeltaV InSight into the automation system improves both ease of use and calculation performance.

InSight is easy to use because there is no additional configuration required. InSight configuration is automatic:

every time a control loop is added, deleted, or modified in the control system,

InSight configuration is automatically updated with the latest configuration.
