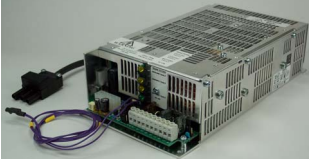

TYCOPSU830 POWER SUPPLY AND BATTERY CHARGER

PRODUCT APPLICATION AND DESIGN INFORMATION

INTRODUCTION

The PSU830 power supply is intended for use in MX/ZX/

ZXF/T2000/MX2 fire panels. It is a functional replacement for the PSB800, PSM800, PSB820 and PSB821.

The PSU830 provides the following features:

„ Power factor correction (PFC) to minimise loading

effects on the AC supply and allows operation from 120

- 240V ac.

„ Temperature compensated, battery charger for sealed

lead acid batteries:

„ Battery disconnection (load shed) when operating from

battery supply to provide deep discharge protection to

battery set

„ Fault monitoring includes:-

– battery disconnected, battery wiring short, battery

high resistance, battery voltage low, battery reverse,

temperature compensation fault, ac supply low,

internal charger fault

„ Common fault output - volt free relay contacts

„ Diagnostic LEDs for

– AC ok

– Battery fault

– Charger fault

– Ground (earth) fault

„ Two 27VDC fused field supply outputs with short circuit

protection, one output may be reset (turned off) under

command from fire panel

„ 40VDC 2.2.A output for supplying up to 4 fully loaded

MX Digital loops, typically a single PSU830 may

replace two PSB800 40V 1.2A supplies

„ 5VDC output for use within fire panel/repeater

„ Selectable Ground (earth) fault monitoring

„ Battery charging function of two PSU830 may be connected in parallel

TECHNICAL SPECIFICATION

The PSU830 complies with the requirements of:

„ EN 54-4/1997:A2-2006 Fire Detection and fire alarm

systems; part 4, Power supply equipment

SYSTEM COMPATIBILITY:

„ Use only with MX/MX2/ZX/ ZXF/T2000 Fire Alarm

Controllers

ENVIRONMENT

„ Indoor Application only, Land and Marine

„ Operating Temperature: -10o

 to +55oC

„ Storage Temperature: -20o to +70oC

„ Operating Humidity: Up to 95% non-condensing

NOTICE

Sealed lead acid batteries cannot be reliably

charged when ambient air temperature

around them (the battery ambient) exceeds

50° C.

DIMENSIONS (HWD):

„ 62 x 132 x 242mm

EMC

„ The PSU830 complies with the following:

„ Product family standard EN50130-4 in respect of Conducted Disturbances, Radiated Immunity, Electrostatic

Discharge, Fast Transients and Slow High Energy

„ EN 61000-6-3 for Emissions

ELECTRICAL CHARACTERISTICS

„ Input Voltage: 120-240Vac 50/60Hz (autoranging)

„ Input Current Rated Load: 0.8-2.2ARMS

„ Rated input power: 200W maximum

„ Outputs

– Non-reset:

27V dc @ 2A

5V dc @ 2.2A Rated, 3.0A max

40V dc @ 2.2 Rated, 2.3A max

– Reset: 27V dc @ 2A

„ +27V: 21-28.8Vdc (typically 27.3V with battery fully

charged)

„ +40V: 39.5-40.3Vdc

„ +5V: 4.8-5.25Vdc

„ Rated Output

„ Rated output of 5A to supply the panel, fire system

loads and charge 24V battery. De-rate to 4.5A when

used at 120VAC and ambient above 40ºC, e.g. some

T2000 Marine applications.

„ Maximum Alarm current 5A for 30 minutes

„ Maximum continuous load current (excluding charging) 2.5A

„ Rated output power: 136W

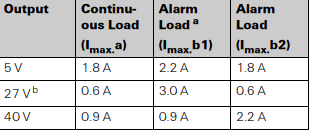

The PSU830 cannot support all outputs fully loaded, the

following output load combinations are possible in MX

panel application:

BATTERY CHARGER

A PSU830 may be used to charge 17Ah or 38Ah battery

sets. To meet the requirements of charge to 80% rated

capacity within 24 hours with a 38Ah battery set it is recommended that 2A or greater be allocated for battery

charging. Points to note:

„ Trickle charge determined by battery capacity, typically

100mA at 27.3Vdc.

„ Maximum charging voltage 28.8V, battery at -5ºC.

„ Minimum charging voltage 21V, condition battery discharged.

„ Deep discharge protection, battery disconnection voltage < 20V.

The PSU830 is not recommended for use with batteries

that have been deep discharged.

Recommended temperature for charging battery -5 to+

40ºC measured in the battery housing with thermistor lead

assembly within 2cms from battery. Sealed lead acid batteries cannot be reliably charged when ambient air temperature around them (the battery ambient) exceeds 50ºC.

Two PSU830 may be connected in parallel (dual PSU configuration) to provide charger output of up to 10A. All other

outputs remain separate, i.e. 2 x 5V, 4 x 27V, 2 x 40V and

must not be connected together. To meet the requirements

of charge to 80% rated capacity within 24 hours with a

65Ah battery set it is recommended that 3.4A or greater

be allocated for battery charging.

BATTERY REQUIREMENTS

17Ah or 38Ah single PSU830.

38Ah dual PSU830. Do not charge 17Ah batteries with

dual PSU830s.

„ Standby Current Consumption: 90mA @ 24V dc

FAULT MONITORING AND RESPONSE

FAULT CONDITIONS THRESHOLDS

„ Low AC, < 100VAC.

„ Battery low <22VDC

„ Battery disconnect < 20VDC

„ Battery High Resistance:

– Single PSU: 0.6Ω

– Dual PSU: 0.3Ω

This is the maximum resistance of the battery circuit including battery, wiring and connections to the charger.
