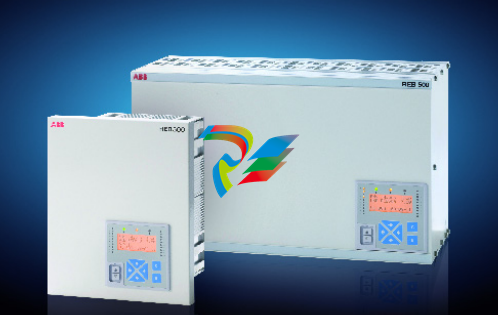

ABBDistributed busbar protection REB500 including line and transformer protection Product Guide

Distributed busbar protection REB500

including line and transformer protection

Main features • Low-impedance busbar protection

• Stub and T-zone protection

• High functional reliability due to two independent measurement criteria:

- stabilized differential current algorithm

- directional current comparison algorithm

• Phase-by-phase measurement

• Reduced CT performance requirements

• High through-fault stability even in case of

CT saturation

• Full solid-state busbar replica

• No switching of CT circuits

• Only one hardware version for

- 1 and 5 A rated currents

- all auxiliary supply voltages between

48 V DC and 250 V DC

- nominal frequencies of 50, 60 and

16.7 Hz

• Short tripping times independent of the

plant’s size or configuration

• Centralized layout: Installation of hardware

in one or several cubicles

• Distributed layout: Bay units distributed

and, in the case of location close to the

feeders, with short connections to CTs, isolators, circuit breakers, etc.

• Connections between bay units and central

unit by fiber-optic cables

- maximum permissible length 1200 m

- for distributed and centralized layout

• fiber-optic connections mean interferenceproof data transfer even close to HV power

cables

• Replacement of existing busbar protection

schemes can be accomplished without restrictions (centralized layout) in the case of

substation extensions e.g. by a mixture of

centralized and distributed layout

• Easily extensible

• User-friendly, PC-based human machine

interface (HMI)

• Fully numerical signal processing

• Comprehensive self-supervision

• Binary logic and timer in the bay unit

• Integrated event recording

• Integrated disturbance recording for power

system currents

• A minimum of spare parts needed due to

standardization and a low number of varying units

• Communication facilities for substation

monitoring and control systems via

IEC 61850-8-1, IEC 60870-5-103 and LON

• IEC 62439 standard redundant station bus

communication

• IEC 61850-9-2 LE process bus communication

• Cyber security to support

- User Access Management

- User Activity Logging

Options

• Breaker failure protection (also separately

operable without busbar protection)

• End fault protection

• Definite time overcurrent protection

• Breaker pole discrepancy

• Current and voltage release criteria

• Disturbance recording for power system

voltages

• Separate I0 measurement for impedancegrounded networks

• Communication with substation monitoring

and control system (IEC 61850-8-1 /

IEC 60870-5-103 / LON)

• Internal user-friendly human machine interface with display

• Redundant power supply for central units

and/or bay units

Additional

main features

REB500sys combines the well-proven numerical busbar and breaker failure protection

REB500 of ABB with Main 2 or back-up protection for line or transformer feeders. The

Main 2 / Group 1 or back-up protection is

based on the well-proven protection function

library of ABB line and transformer protection

for 50, 60 and 16.7 Hz.

Main 2 / back-up bay protection

• Definite and inverse time over- and undercurrent protection

• Directional overcurrent definite and inverse

time protection

• Inverse time earth fault overcurrent protection

• Definite time over- and undervoltage protection

Distributed busbar protection REB500

including line and transformer protection

Page 3

• Three-phase current and three-phase voltage plausibility

Main 2 / back-up bay protection:

Line protection

• High-speed distance protection

• Directional sensitive earth fault protection

for grounded systems against high resistive faults in solidly grounded networks

• Directional sensitive earth fault protection

for ungrounded or compensated systems

• Autoreclosure for

- single-pole / three-pole reclosure

- up to four reclosure sequences

• Synchrocheck with

- measurement of amplitudes, phase

angles and frequency of two voltage

vectors

- checks for dead line, dead bus, dead

line and bus

Group 1 / back-up bay protection:

Transformer protection

• High-speed transformer differential protection for 2- and 3-winding and auto-transformers

• Thermal overload

• Peak value over- and undercurrent protection

• Peak value over- and undervoltage protection

• Overfluxing protection

• Rate of change frequency protection

• Frequency protection

• Independent T-Zone protection with transformer differential protection

• Power protection

Application REB500

The numerical busbar protection REB500 is

designed for the high-speed, selective protection of MV, HV and EHV busbar installations

at a nominal frequency of 50, 60 and 16.7 Hz.

The structure of both hardware and software

is modular enabling the protection to be easily

configured to suit the layout of the primary

system.

The flexibility of the system enables all configurations of busbars from single busbars to

quadruple busbars with transfer buses, ring

busbars and 1½ breaker schemes to be protected.

In 1½ breaker schemes the busbars and the

entire diameters, including Stub/T-Zone can
