TEWSTPMC871 1 Socket PC Card Interface

Application Information

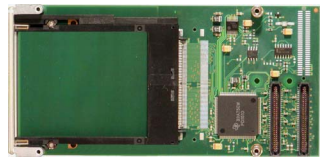

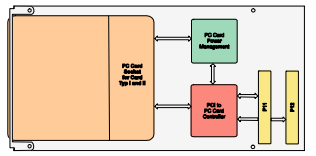

The TPMC871 is a standard single-width 32 bit PMC

module with one interface for 16 bit PC Card or 32 bit

Cardbus cards using a PC Card controller and a power

management unit. The register map of the PC Card

controller is Intel 82365-DF compatible.

The power management unit provides 3.3V or 5.0V

PC Card power supply and 3.3V, 5.0V or 12V PC Card

programming voltage. Due to the short circuit and thermal

protection of the power management unit no external

fuses are needed on the module.

The TPMC871 provides full ExCA register implementation

of one 16 bit PC Card compatible with PCMCIA 2.1/JEIDA

4.2 standards. Both memory and I/O cards are supported.

Up to five memory windows and up to two I/O windows are

available for PC Card 16 accesses. For 32 bit Cardbus

cards two memory windows and two I/O windows are

supported by the controller. Cardbus card status

information can be accessed in five Cardbus socket

registers which can be mapped in the host memory space

For First Time Users the Engineering Documentation

TPMC871-ED is recommended. The Engineering

Documentation includes TPMC871-DOC, schematics and

data sheets.

Software Support:

o Software Support (TPMC871-SW-xx) for different

operating systems is available.

o The TPMC871 is directly supported from

WindowsXP/2000 and Linux.

Technical Information

 Standard single-width 32 bit PMC module conforming

to IEEE P1386.1

 PCI 2.1 compliant interface

 3.3V and 5V PCI Signaling Voltage

 Board size: 149mm x 74mm

 1 PC Card Slot with hot insertion and removal

 Supports memory and I/O cards of type I and II

Note: The PC Card assembly has a maximum

component height of 5.6mm which is 0.9mm above the

specified component height (4.7mm) according to

IEEE1386.1

Order Information

RoHS Compliant

TPMC871-10R 1 Socket PC Card Interface, PC

Card accessible through front panel

TPMC871-11R 1 Socket PC Card Interface, PC

Card not accessible through front

panel

TPMC871-50R 1 Socket PC Card Interface, PC

Card accessible through front panel,

inserted PC Card behind front panel

None RoHS Compliant

TPMC871-10 None RoHS compliant version of

TPMC871-10R

TPMC871-11 None RoHS compliant version of

TPMC871-11R

TPMC871-50 None RoHS compliant version of

TPMC871-50R

Documentation

TPMC871-DOC User Manual

TPMC871-ED Engineering Documentation, includes

TPMC871-DOC

Software

TPMC871-SW-42 VxWorks Software Support

(Legacy and VxBus-Enabled

Software Support)

For other operating systems please contact TEWS.
