Velocitykvm System - 34, Transmitter and Receiver, Multi-Mode Fiber

KVM Extension System -34

Four Single-Link DVI Displays

Extension Options Include:

 USB 1.1

 USB 1.1 with Ethernet Network Extension

 USB 1.1 and USB 2.0

 USB 1.0 HID (ONLY)

Fiber Options Include:

 Single Mode

 Multi-Mode

The Velocitykvm System - 34 series is comprised of four different models, all of which are designed to support four

Single-Link DVI displays, PS2, full duplex stereo audio, and serial (RS-232). Depending on your requirements model options

feature either USB 1.0 HID (only), USB 1.1, USB 1.1 with Ethernet 10/100 Base-T network extension, or USB 1.1 and USB 2.0 (up

to 480 Mbps) device ports. Using multi-mode or single-mode fiber, the system allows users to locate a DVI monitor and

peripherals via fiber from just a few meters up to 10 kilometers away from the controlling computer securely without the loss

of resolution.

Powered by Thinklogical’s cutting edge, patent-pending MRTS (Multi Rate Transmission System) technology, this extension

system transports every frame of a DVI video stream seamlessly, with no compression, or dropped frames. In addition, all high

speed peripherals function with no latency making it ideally suited for a wide range of applications in the broadcast and

post-production field, as well as command and control centers, universities, large scale digital signage, and any other

commercial KVM applications.

The System

The Velocitykvm System - 34 has a simple transmitter/receiver design which allows for ease of installation and straight

forward deployment. Depending on the user's infrastructure, the transmitter and the receiver can be connected by

multi-mode or single-mode fiber optic cable. The transmitter unit connects to the CPU with the supplied peripheral

cables. In addition, local keyboard and mouse ports are on the transmitter (local video when used with Thinklogical’s

DVI Splitter). The receiver unit provides connections to the user interface devices.

Leveraging standard SFP+ transceivers, the system allows for the usage of either multi-mode or single-mode fiber optic

cable. The Velocitykvm Extender - 34 requires five fibers for a multi-mode configuration. Four fibers are dedicated to the

video and USB while the fifth fiber is the back channel for the USB and DDC. The DDC (Display Data Channel) or EDID

(Extended Display Identification Data) information is provided to the CPU by either a generic table stored inside the

transmitter, or from a display connected to the transmitters local port. Also, the added capability of active DDC allows the

remote monitor to send its display capabilities to the CPU. Multi-mode and single-mode models are available with SC, ST,

or LC type fiber connectors. Standard fiber count is five, however models with fewer fibers are available.

The VelocityKVM System - 34 extension system offers best-in-class fiber optic performance with advanced peripheral and

interface capability. The entire line of VelocityKVM products offer the following four model options:

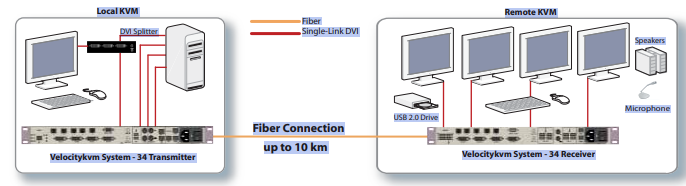

Typical application extending DVI video and peripheral devices using the Velocitykvm System - 34

KVM EXTENSION - Velocity Series

Fiber

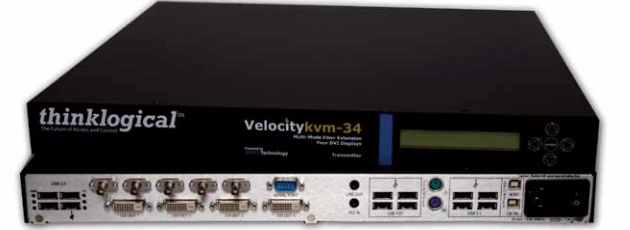

Velocitykvm System - 34 Transmitter

Fiber Connection

Velocitykvm System - 34 Receiver

Remote KVM

Microphone

Local KVM

USB 2.0 Drive

Speakers

up to 10 km

DVI Splitter Single-Link DVI

USB 1.1, PS2, Serial (RS-232), and Analog Stereo Audio (bi-directional)

For general purpose use, supports any full speed USB (1.1) peripheral, including thumb drives and tablets.

USB 1.1 with Ethernet 10/100 Base-T Network Extension, PS2, Serial (RS-232), and Analog Stereo Audio (bi-directional)

Extend Ethernet network (10/100 Base-T) through the VelocityKVM Transmitters via single mode or multi-mode fiber

optics to the VelocityKVM Receivers. This expanded network connectivity will provide for greater peripheral capability

with no increase in fiber or port counts.

USB 1.1, USB 2.0, PS2, Serial (RS-232), and Analog Stereo Audio (bi-directional)

Full support for USB high speed (2.0) devices (along with USB 1.1 support), ideal use for DVD drives, CDROM, Memory

Stick, and other high speed storage and desktop peripherals. Supports full 480Mb/second transfer rates.

USB 1.0 (HID ONLY), PS2, Serial (RS-232), and Analog Stereo Audio (bi-directional)

Designed for security conscious customers. No physical support for USB thumb drives or other full speed devices.

Supports human interface devices only, such as keyboard, mouse, and tablets.

Key Features

Supports all Single-Link DVI video resolutions and

one DVI display

MRTS technology 6.25Gbps allows for full frame rate

transmission of uncompressed DVI

Requires one or two fiber optic cables

depending on application

Flawless image quality with no frame dropping

Single mode or multi-mode fiber options extend

signals up to:

- 750 meters using SX+ multi-mode fiber

- 1000 meters using eSX+ multi-mode fiber
