UniOP ePAD03 and ePAD04

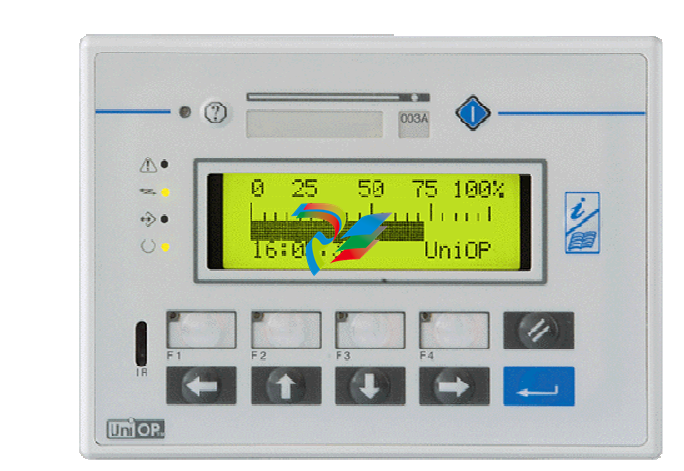

Compact low-cost HMI with graphic display. The ePAD03 and ePAD04 panels are defining a new

standard for entry-level HMI products. They are the ideal replacement for the successful MD00

Series.

These products are also available with extended operating temperature range for use in extreme

environmental conditions.

Highlights

• Monochrome graphic display 120x32 pixels

• Downloadable fonts

• Scalable text

• 4 user programmable function keys with slide

in legends

• 5 user programmable LED indicators

• Dual-driver communication

• Connection to industrial bus systems and

Ethernet with optional modules

• IP65 front panel protection

• Version with extended operating temperature

available

The ePAD03 and ePAD04 HMI panels are compact low cost products yet extremely rich in

functionality. The ePAD03 and ePAD04 are the ideal replacement for panels of the MD00 Series.

They generally outperform the equivalent products and can be used in all cases except when the 20

mA current loop interface is needed.

The products support the rich common functionality of the UniOP operator panels:

• Powerful and intuitive programming with

the UniOP Designer 6 software

• Dual-driver communication capability

• Support of more than 130 communication

drivers for industrial devices

• Optional modules for fieldbus systems

(Profibus DP, CANopen, DeviceNet,

Interbus) and Ethernet. Ethernet modules

allow connection to field devices as well

as programming the HMI from Designer.

• Scalable fonts for effective presentation of

information.

• Display dynamic data in numerical, text,

bargraph and graphic image formats

• Recipe data storage. Recipe data can be

transferred to an host computer using the

Ethernet connection.

• Multilanguage applications. The number

of runtime languages is limited only by the

available memory. All text information in

tn187-8.doc - 10.01.2012

UniOP ePAD03 and ePAD04

the application can be exported in Unicode

format for easier translation.

• Powerful macro editor to configure

keypad operation

• Alarms and historical alarm list. Alarm

and event information can be printed or

transferred to an host computer using the

Ethernet connection.

• Eight level password protection.

• Ethernet-based UniNet network to share

data between UniOP HMIs and to serve

data using UniNet OPC Server.

Technical Data

Display

Type Monochrome LCD

Resolution 120x32

Rows/columns 4x20

Scalable fonts Yes

Active display area 70x21 mm

User definable

characters

256

Backlight LED

Contrast regulation Software

Memory

User memory 512 KB Flash

User memory

expansion -

Front panel

Touch screen -

Function keys 4. with slide-in legend

System keys 7

User LED’s  5

System LED’s  4

Interfaces

PC/Printer port -

PLC port RS-232. RS-485. RS-422

Aux port (fieldbus and

Ethernet)

Yes, with optional modules

Serial programming

speed

ePAD03 9600 – 38400 bps

ePAD04 9600 bps

Functionality

Number of variables

per page

Unlimited

Dual driver capability ePAD03 Yes

ePAD04 No

Recipe memory ePAD03 16 KB

ePAD04 -

UniNet network ePAD03 Client/Server

ePAD04 Client

Alarms 1024

Event list ePAD03 256

ePAD04 -

Password Yes

Hardware RTC ePAD03 Yes, battery back-up

ePAD04 -

Screen saver -

Buzzer -

Battery ePAD03 3 V 270 mA Lithium,

non rechargeable, user

replaceable, model CR2430.

Replace with same component

or equivalent compatible with

the operating temperature of

the product.

ePAD04 -

Ratings

Power supply voltage 18 - 30 VDC

Current consumption 0.25 A at 24 VDC

Fuse Automatic

Weight 1 Kg

Environmental

Conditions

Operating temperature -0046 0 to 50 °C -00B6 0 to 60 °C -00B7 -20 to 60 °C

Storage temperature -20 to +70 °C

Operating and storage

humidity

5 – 85 % RH non-condensing

Protection class IP65 (front panel)

Dimensions

Faceplate LxH 149x109 mm (5.86”x4.29”)

Cutout AxB 136x96 mm (5.35”x3.78”)

Cutout depth 53 mm (2.08”)

The product is designed for installation in industrial environments in compliance with the regulations:

Emitted interference EN 61000-6-4. 2001

Noise immunity EN 61000-6-2. 2001

Ordering Information

ePAD03-0046 Compact low-cost HMI with graphic display, recipes and Real Time Clock

ePAD03-00B6 Compact low-cost HMI with graphic display, recipes and Real Time Clock,

extended operating temperature range

ePAD03-00B7 Compact low-cost HMI with graphic display, recipes and Real Time Clock,

extended operating temperature range

ePAD04-0046 Compact low-cost HMI with graphic display

ePAD04-00B6 Compact low-cost HMI with graphic display, extended operating temperature

range

ePAD04-00B7 Compact low-cost HMI with graphic display, extended operating temperature

range

R-PRINT2298 Printable legends (5 A4 foils, 8 sets of legend per foil)
