EMERSONDeltaV™ Electronic Marshalling for Migrations

„ CHARM Baseplate (DIN-rail mounted with interleaving power

and bus connectors. Supports 12 CHARMs and their terminal

blocks, as well as connection for injected field power).

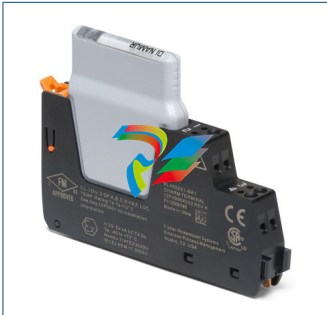

„ CHARM Terminal Block (removable terminal block

providing terminal connections to field wiring and

physical latch for CHARM).

„ CHARMs (Characterization Module for each field signal.

Provides basic analog to digital conversion, connectivity

to redundant communication bus, and fault isolation)

Replaces legacy I/O in place: DeltaV Electronic Marshalling

goes where no one else’s I/O can. Install the CHARMs migration

panel above, below, or even in front of your legacy termination

panel and move your wires inches to complete your migration

to DeltaV. Since the CHARMs migration panel is a standard

CHARMs baseplate, it talks to the CIOC the same as the

standard vertical installation through the cable interface.

This allows you to mount the migration panel in the best

location to facilitate a clean system cutover and not have to

“stretch” your I/O cables to a new termination. As an added

bonus, install CHARMs vertical if your wiring allows for it in

certain areas. Now you can mount your I/O in any orientation

as best fits your current migration layout and needs.

Fully redundant communications: The CIOC architecture is

fully redundant. This starts with the two I/O cards on a carrier.

The carrier has redundant communication modules for primary

and secondary network connections. There are two 24 V DC

input power connections. The carrier connects to the CHARMs

Baseplates and provides redundant power and communication

buses to the CHARMs. Everything is redundant down to the

individual channel.

Complete DeltaV solution: Migrate from your legacy system

with the comfort that when complete you will have a complete

DeltaV solution, not a combination of standard and custom

hardware/software to support. Every piece of the migration

panel is standard DeltaV hardware and can be supported with

the same personnel and spare equipment that every other

CHARMs and DeltaV installation uses.

Plug and play I/O: The DeltaV CIOC has been designed for

ease of use, both in physical installation and its software tools.

Components snap together with secure DIN-rail latches and

interlocking carrier connectors. Insert the CHARMs and auto

sense the node to create the I/O definition automatically in

your DeltaV configuration database. CHARMs use a self-keying

system to automatically set a channel for a specific CHARM

type. Users cannot mistakenly insert a CHARM into the wrong

terminal block. Assign all, one, or any number of channels to a

controller with a simple click and drag.

CHARM and Terminal Block.

Field power is provided through a redundant 24V DC bus to

each CHARM, with up to 100 mA per CHARM. Higher current

Discrete Channels can be powered through integrated power

injection bus local to each CHARM Baseplate.

Product Description

Electronic Marshalling for Migrations hardware includes:

„ CHARM I/O Carrier (DIN-rail mounted and supports

redundant pair of CHARM I/O Cards).

„ CHARM I/O Card (CIOC) provides communication between

CHARMs and the Ethernet I/O network to M-series, S-series,

and PK controllers. The CIOC has Achilles Communications

Certification Level 1 and the redesigned CIOC2 has more

computing power and Achilles Communications Certification

Level 2. The CIOC2 is a drop-in replacement for the CIOC.

„ CHARM Baseplate (DIN-rail mounted with interleaving power

and bus connectors. Supports 12 CHARMs and their terminal

blocks, as well as connection for injected field power).

„ CHARM Terminal Block (removable terminal block

providing terminal connections to field wiring and

physical latch for CHARM).

„ CHARMs (Characterization Module for each field signal.

Provides basic analog to digital conversion, connectivity

to redundant communication bus, and fault isolation)

„ Cable Extenders that provide flexibility in carrier mounting.

„ Baseplate terminators (provides bus terminations for

redundant I/O bus).

„ 19” Migration Panels (provides DIN-rail mounting for two

migration CIOC’s or two baseplates and cable extenders

for installation into your standard 19” legacy cabinets).

CIOC Migration Panel

The CHARM I/O card carrier is supposed to be mounted

on a vertical DIN-rail and can communicate with up to

eight CHARM Baseplates mounted vertically or on migration

panels and connected to each other through extender cables.

The bus terminators are attached to the last baseplate.

Baseplate Migration Panel

Each CHARMs Migration Baseplate Assembly is

ordered pre-loaded with 24 terminal blocks that are

ready to receive field wires from 2-, 3- , and 4-wire devices.

Electronic Marshalling eliminates the need to scramble the

field wiring or to partition the I/O to match signals to channel

types of specific cards. Simply connect field signals in an orderly
