EMERSONOvation™ Power Supply System(5X00785G09)

From:EMERSON | Author:LIAO | Time :2025-08-05 | 357 Browse: | 🔊 Click to read aloud ❚❚ ▶ | Share:

Ovation™ Power Supply System(5X00785G09)

Features.

▪ Redundant power configurations, each with separate external wide-range AC or DC feeds

▪ Separate main and auxiliary supplies in both the primary and secondary configurations

▪ Dual wide-range input capabilities ▪ Diode auctioneered power feeds

▪ High-efficiency power supplies ▪ Modular fanless systems

▪ Redundant power feeds to each controller chassis and to the I/O modules

▪ Continuous system monitoring

Overview Emerson has developed a DIN-rail mounted power supply incorporating four modular fanless powering systems to provide reliable and stable power to the Ovation™ controller and I/O modules. The Ovation controller powering system uses redundant configurations, each with separate, external wide-range AC and/or DC input feeds. Dual diode auctioneered 24 VDC outputs are used to power each controller chassis and associated I/O modules, as well as loops and contact wetting to the I/O modules. If required a 48 VDC auxiliary power for loops and contact wetting can also be provided. Two separate output schemes are available: ▪ 24 VDC / 10 A / 240 W main and 24 VDC / 10 A / 240 W auxiliary power ▪ 24 VDC / 20 A / 480 W main and 24 VDC / 20 A / 480 W auxiliary power

Benefits Benefits of the Ovation power supply scheme include:

▪ Separate main and auxiliary power supplies allow easy replacement

▪ Elimination of cooling fans greatly reduces failure risks

▪ Diode auctioneered power feeds assure continuous power availability

▪ New design increases efficiency, reduces heat generation and enhances equipment life expectancy

▪ Dual input (AC and DC) capability reduces spare parts

▪ Hot-swappable power supplies enable on-line replacement

▪ Quick installation of the power supplies minimizes downtime and production loss

▪ Power factor correction reduces power consumption

10-Amp Power Scheme

The 10-amp powering scheme includes:

▪ Redundant power supply configurations (primary and secondary) that contain separate 10-amp main and auxiliary power supplies and support a wide range of input voltages (85-264 VAC @ 43- 67 Hz or 90-375 VDC) with an output power of 240 W. ▪ A power distribution module that distributes diode auctioneered outputs to both the controller and I/O busses. The 10-amp scheme consists of a back-plate with pre-mounted DIN-rails to which the power distribution module, circuit breakers and four 10-amp power supplies are attached. Life expectancy of the 10-amp power supply is 8-years @ 40°C.

20-Amp Power Scheme

The 20-amp powering scheme includes:

▪ Redundant supply configurations (primary and secondary) that contain separate 20 A main and auxiliary power supplies that support a wide range of input voltages (85-264 VAC @ 43-67 Hz or 90- 375 VDC) with an output power of 480 W. ▪ An auctioneering diode to ensure continuous power availability ▪ A power distribution terminal strip

The 20-amp scheme consists of a back-plate with premounted DIN-rails, to which the power distribution terminals strip, auctioneering diode, circuit breakers and four 20-amp power supplies are attached. The 20-amp power scheme increases the power available to the Ovation controller and I/Os to 480 W. Life expectancy of the 20-amp power supply is 15- years @ 40°C and 10-amp loading.

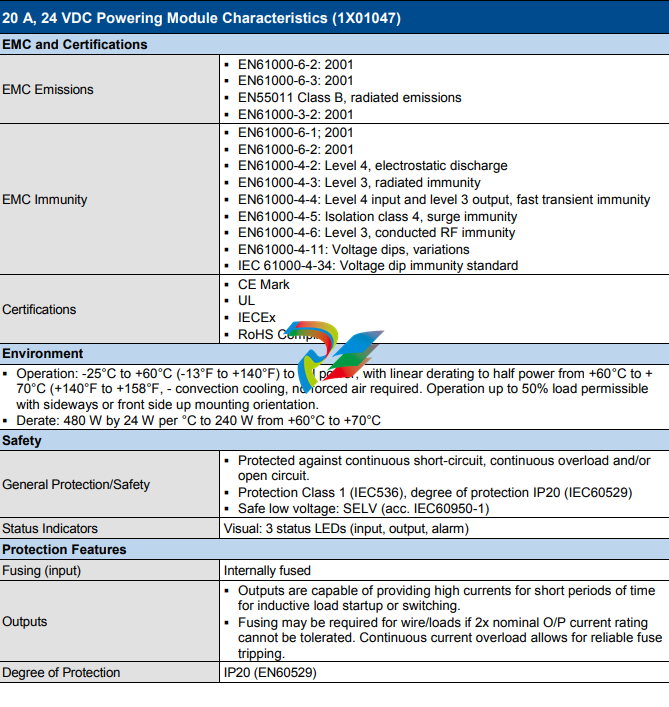

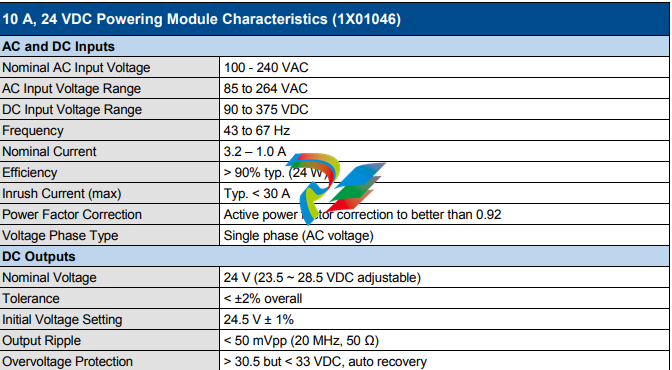

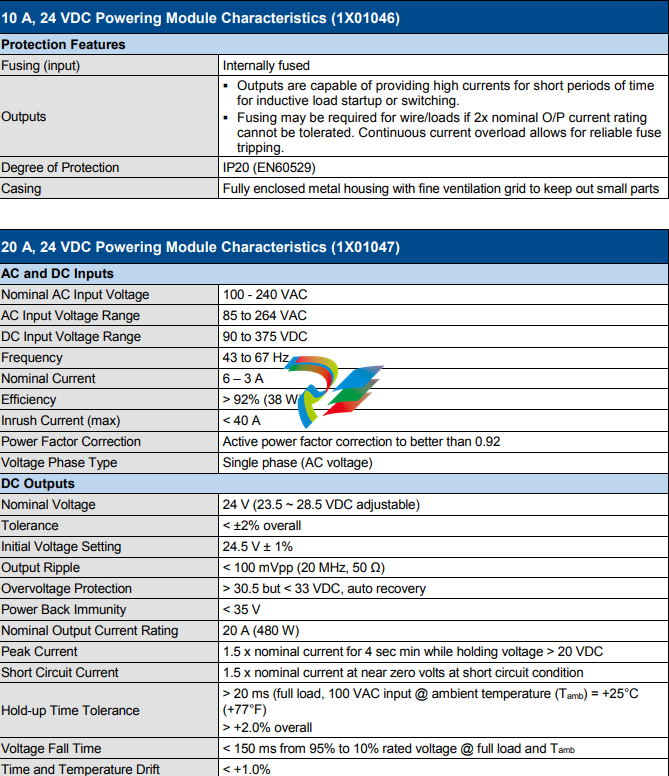

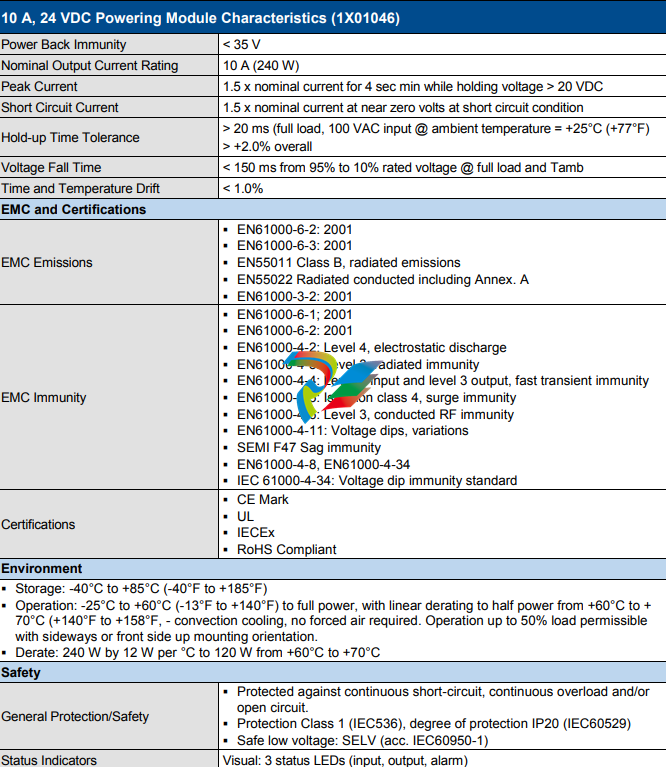

Powering Module Characteristics

Ovation™ Power Supply System

Ovation™ Power Supply System

Ovation™ Power Supply System
