EATONXVH300 MICRO PANEL

General

Purpose of these Operating Instructions

These Operating Instructions contain the information required for the correct and safe use of the MICRO PANELs XVH300; MH2. The Operating Instructions are part of the devices and must therefore be kept nearby. These Operating Instructions describe all aspects of the devices: transport, installation, commissioning, operation, maintenance, storage and disposal. The operating system and the application software are not described.

Read Chapter 3 Safety regulations,  11 before working with the device. This contains important information for your personal safety. This chapter must be read and understood by all persons working with this device

Additional documentation

The following documents may be helpful in the use of the device in addition to this document: [1] MN05010007Z-EN System Description Windows CE (operation of the Windows CE operating system on MICRO PANELs) [2] MN05010009Z-EN System Description Networks in Brief (information on networks in general and on the integration of PCs and MICRO PANELs in networks) The documents can be downloaded from:  www.moeller.net, «Support» section  www.eaton.eu (search document No. via search field of the home page)  www.eaton-automation.com, «DOWNLOADS» section

Device names

XVH300 and MH2 are two different names of equivalent products

Function

MICRO PANELs XVH300; MH2 are used as HMI devices.

Intended use

MICRO PANELs XVH300; MH2 are primarily used in machine and system building. They are designed exclusively for the visualization and operation of machines and systems. Any other use must be agreed beforehand with the manufacturer.

Device versions

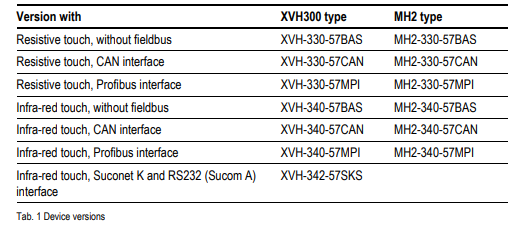

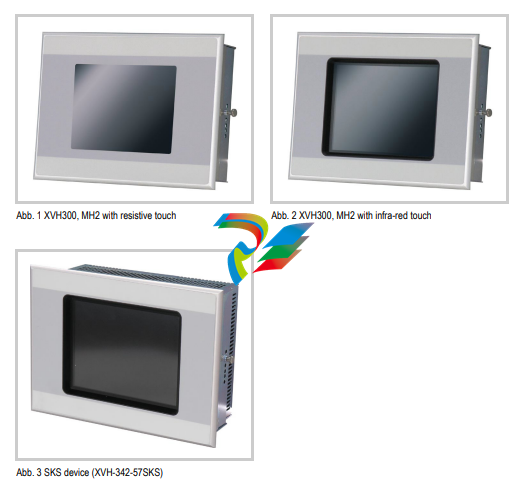

MICRO PANELs XVH300; MH2 are available in the following versions:

2 Device description 2.4 Device versions

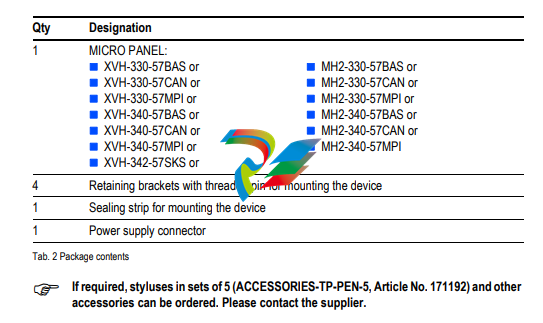

Package contents The package contents of the MICRO PANELs XVH300; MH2 consist of the following

Accessories

Different accessories are available. Use only original accessories.

 Order the accessories required from your supplier. Required accessories for:  Mounting with increased protection class: See Chapter 9.6 Enclosure ratings,  61.  Use in a potentially explosive atmosphere: See Chapter 9.7 Agency approvals and standards,  62

Designation

A nameplate is fixed on the rear of the device in order to identify it. The nameplate contains the following information:

 Manufacturer address  Type designation  Power supply required  Part no. (Part-No or Art.-No)  Serial no.  Time of manufacturing (week/year)  Approval mark and information to the approval  Arrangement of interfaces and operating elements  Permissible mounting options (top edge «Top»)

2 Device description 2.7 Designation

To ensure fast and optimum support always provide the support personnel with the following information on the nameplate:  Part no. (Part-No or Art.-No)  Serial no.

Safety regulations

General Hazards may still occur even though the device meets the current state of the art and complies with all recognized safety requirements. The device must only be installed and commissioned in perfect technical condition and in compliance with this document.

 Read this chapter before working with the device. This contains important information for your personal safety. This chapter must be read and understood by all persons working with this device

3 Safety regulations 3.2 Meaning of symbols

Meaning of symbols The following symbols are used in this document according to the hazard level described:

 Indicates useful information.

The danger symbol used and the text indicate the actual danger and the related preventative measures

Work safety All applicable work safety regulations (in-house and national) must be observed.

Qualification of personnel The personnel responsible for installation, operation, maintenance and service must be adequately qualified. These persons must be sufficiently trained or instructed and they must be informed of all hazards and risks associated with the device.

Operating Instructions It must be ensured that any person working with the device in any phase of its lifespan has read and understood the relevant sections of the Operating Instructions

Installation, maintenance and disposal It must be ensured that the device is properly connected, mounted, maintained and disposed of in compliance with all relevant standards and safety regulations

Prohibited use The implementation of safety functions (relating to the protection of personnel and machinery) using the device is prohibited

3 Safety regulations 3.3 Mandatory requirements, personnel

Requirements for proper operation The following points must be observed so that the device meets the contractual requirements:

 Only qualified personnel may work with the device.  These persons must have read the Operating Instructions and must observe the requirements described.  The ambient conditions stated must be observed. See Chapter 9.9 Ambient conditions,  63.  The maintenance work must be carried out correctly.  Potentially explosive atmosphere, Zone 22: The ground resistance of accessible metal parts must be less than 109 ohms. No liability is accepted for damage, consequential damage and accidents caused by the following:  Failure to observe work safety regulations  Failure or malfunction of the device  Improper handling or use  Failure to observe the Operating Instructions  Conversions, modifications and repairs to the device  Repairs, see Chapter 7.3.1 Repairs,  52.
