The UniOP ePAD04-0046 is a compact, entry-level HMI (Human Machine Interface) designed to replace the legacy MD00 series.

It is a cost-effective solution for providing graphic visualization and operator control in industrial environments where space and budget are limited.

Part of the ePAD family, it focuses on delivering essential data monitoring through a high-contrast monochrome display and a tactile keypad.

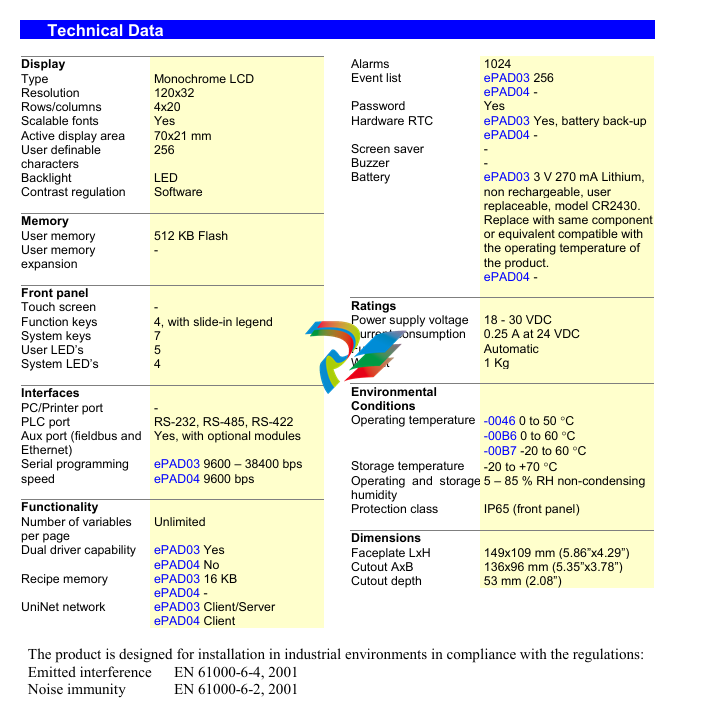

Technical Parameter Table

Parameter    Specification

Model    ePAD04-0046

Display Type    Monochrome Graphic LCD

Resolution    $120 times 32$ pixels

Display Rows/Cols    4 rows of 20 characters

Backlight    LED

User Memory    512 KB Flash

Keypad    4 Programmable Function Keys + 7 System Keys

LED Indicators    5 User-Programmable LEDs, 4 System LEDs

Operating Voltage    18–30 VDC (0.25 A @ 24V)

Communication    1x PLC Port (RS-232. RS-422. RS-485)

Auxiliary Port    Supports optional Fieldbus/Ethernet modules

Operating Temp    0°C to +50°C

Protection Class    IP65 (Front Panel)

Product Advantages and Features

High Legibility: The graphic LCD supports scalable fonts and downloadable icons, making it more flexible than standard character displays.

Low Profile: With a cutout depth of only 53 mm, it is ideal for shallow enclosures and thin cabinet doors.

Vast Protocol Library: Compatible with over 130 communication drivers (Siemens, Allen-Bradley, Omron, etc.) via UniOP Designer software.

Tactile Reliability: The mechanical keys provide distinct feedback, making it safer for use in environments where operators wear gloves.

Customization: Features "slide-in" legends for the function keys, allowing users to label buttons specifically for their application.

Unique Product Description

The UniOP ePAD04-0046 is the "minimalist workhorse" of the HMI world. While modern touchscreens often fail in high-vibration or dirty environments, the ePAD04 thrives.

Its unique dual-driver capability (when used with optional modules) allows it to bridge two different PLC networks simultaneously, acting as a small gateway. It is designed for engineers who need a "set it and forget it" interface that prioritizes data reliability over flashy graphics.

Application Cases

HVAC Systems: Monitoring temperature setpoints and alarm statuses in building automation.

Pumping Stations: Controlling flow rates and viewing pressure bargraphs in water treatment facilities.

Material Handling: Interfacing with small conveyors or lift systems for simple start/stop and fault diagnostics.

Packaging Machinery: Managing recipe selection for small-scale labeling or capping machines.

Installation and Maintenance

Installation

Panel Cutout: Prepare a cutout of $136 times 96$ mm.

Mounting: Insert the unit into the cutout and secure it using the provided mounting clips. Ensure the gasket is compressed to maintain the IP65 seal.

Power: Connect a 24V DC supply. Use a dedicated ground wire to the chassis terminal to ensure stable communication.

Maintenance

Battery: The ePAD04-0046 does not have a battery-backed Real-Time Clock (RTC). If time-stamping is required, it must be synced with the connected PLC.

Software: Configuration is handled via UniOP Designer (Version 6 or later).

Cleaning: Clean the front overlay with a soft, damp cloth. Avoid abrasive cleaners that could scratch the protective membrane over the LCD.

Other Models in the Same Series

Model    Difference

ePAD03    Includes Battery-backed RTC and Recipe Memory

ePAD04-00B6    Extended Temp Range (0°C to +60°C)

ePAD04-00B7    Industrial Temp Range (-20°C to +60°C)

ePAD05    Larger Keypad (9 Function Keys)
