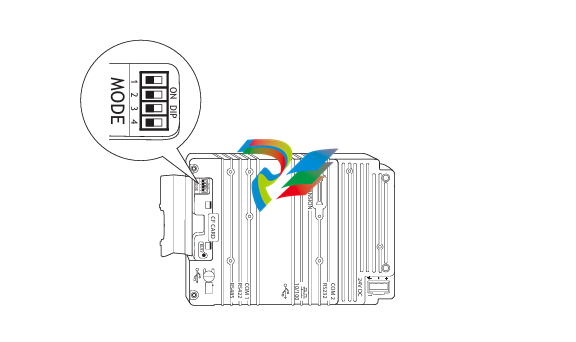

ABB IndustrialIT Panel 800 - PP846 Version 5.1

The Panel 800 operator panel is developed to satisfy the demands of human

machine communication. Built-in functions such as displaying and controlling text,

dynamic indication, time channels, alarm and recipe handling are included.

 The operator panel work, for the most part, in an object-oriented way, making it

easy to understand and use. The configuration operation of the panel is made in a

personal computer, using the configuration tool Panel Builder 800. The project is

then transferred and stored in the operator panel.

 The operator panel can be connected to many types of automation equipment, such

as PLCs, servos or drives. In this manual the expression “the controller“ is used as a

general term for the connected equipment

 Both the installer and the owner and/or operator of the operator panel must read and

understand this installation manual.

 UL and cUL Installation

 • This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D

OR non-hazardous locations only. [Combinations of equipment in your system

are subject to investigation by the local Authority Having Jurisdiction at the

time of installation].

 • Maximum ambient temperature 40 °C when mounted horizontal or 50 °C when

mounted vertical.

 • WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless

power has been removed or the area is known to be non-hazardous.

 • For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – AVANT

DE DECONNECTER L’EQUIPEMENT, COUPER LE COURANT

OUS’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON

DANGEREUX.

 • WARNING – EXPLOSION HAZARD - Substitution of components may

impair suitability for Class I, Division 2.

 • For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – LA

SUBSTITUTION DE COMPOSANTS PEUT RENDRE CE MATERIEL

INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVISION

2.

 • WARNING – EXPLOSION HAZARD – only UL and cUL approved

expansion units are allowed to be connected to the port designated

“EXPANSION”. At the moment there are no such units evaluated or allowed.

 • WARNING – EXPLOSION HAZARD - Do not replace expansion unit unless

power has been switched off or the area is known to be non-hazardous.

 • This product contains battery, this must only be changed in an area known to be

non-hazardous. Permitted types are shown in the Section 4, Technical Data.

 • For use on a flat surface of a type 4X enclosure indoor use only.

 • To make wiring connections to the power supply connector, use an AWG 28-12

cable and a tightening torque of min. 0.5 Nm.

 General

 • Read the safety precautions carefully.

 • Check the delivery for transportation damage. If damage is found, notify the

supplier as soon as possible.

 • Do not use the operator panel in an environment with high explosive hazards.

 • The supplier is not responsible for modified, altered or reconstructed

equipment.

 • Use only parts and accessories manufactured according to specifications of the

supplier.

 • Read the installation and operating instructions carefully before installing,

using or repairing the operator panel.

 • Never allow fluids, metal filings or wiring debris to enter any openings in the

operator panel. This may cause fire or electrical shock.

 • Only qualified personnel may operate the operator panel.

 • Storing the operator panel where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to

congeal/become isotopic.

 • The LCD display liquid contains a powerful irritant. In case of skin contact,

wash immediately with plenty of water. In case of eye contact, hold the eye

open, flush with plenty of water and get medical attention

• The figures in this manual serves an illustrative purpose. Because of the many

variables associated with any particular installation, the supplier cannot assume

responsibility for actual use based on the figures.

 • The supplier neither guarantees that the operator panel is suitable for your

particular application, nor assumes responsibility for your product design,

installation or operation.
