The redesigned AC SERVOPACK CACR-SR BF model was developed to replace the traditional SERVOPACK models that were introduced before the Σ series. Its circuit configuration adopts the latest technology.
The redesigned AC SERVOPACK supports all types of encoders used for AC servo drives: serial encoders and encoders that preceded serial encoders.
The redesigned AC SERVOPACK provides the operating environment for the following traditional SERVOPACK models: CACR-SR
BA
( Speed control / Analog control, applicable to incremental encoders, base type ) CACR-SR
BB
( Speed control / Simulation control, applicable to incremental encoders, base type ) CACR-SRBZ
( Speed control / Analog control, applicable to absolute encoders, pedestal type )
CACR-SRBE (This is the abbreviation of "Be" in English)
( Speed control / Digital control, applicable to incremental encoders, pedestal type )
CACR-SR
( Speed control / Digital control, applicable to absolute encoders, pedestal type )
1.2 Features
1.2.1 Compatible with the previous SERVOPACK working environment of the Σ series
Working environment:
• External dimensions / installation method
(For some models, additional components are required.)
• Main circuit terminals
• Control connectors and signal layout
• The encoder type of the previous Σ series can be identified through switch settings
(There is an encoder signal converter built-in.)
• Important adjustments such as speed gain adjustment can be made using potentiometer VR
(Just like the traditional model CACR-SR.)
1.2.2 Updates of the latest technology
BB and BZ)
• Basic functions and performance are comparable to the Σ-III series SERVOPACK
• Parameters of the Σ-III series SERVOPACK can be applied.
(Parameters are set using a digital operator.)
1.2.3 Servo motors with a wide range of applications
The redesigned AC SERVOPACK can be combined with various servo motor models by setting internal parameters: C series, M series,
F series, G series, D series, S series, Σ series, Σ-II series, and Σ-III series servo motors USAMED-03 CACR-SR03BE1M CACR-SR03BF1ME
CACR-SR03BY1M CACR-SR03BF1MYUSAMED-06 CACR-SR07BE1M CACR-SR07BF1ME CACR-SR07BY1M CACR-SR07BF1MY
USAMED-09 CACR-SR10BE1M CACR-SR10BF1ME CACR-SR10BY1M CACR-SR10BF1MY
USAMED-12 CACR-SR15BE1M CACR-SR15BF1ME CACR-SR15BY1M CACR-SR15BF1MY
USAMED-20 CACR-SR20BE1M CACR-SR20BF1ME CACR-SR20BY1M CACR-SR20BF1MY
USAMED-30 CACR-SR30BE1M CACR-SR30BF1ME CACR-SR30BY1M CACR-SR30BF1MY
USAMED-44 CACR-SR44BE1M CACR-SR44BF1ME CACR-SR44BY1M CACR-SR44BF1MY
USAMED-60 CACR-SR60BE1M CACR-SR60BF1ME CACR-SR60BY1M CACR-SR60BF1MYF
USAFED-02 CACR-SR03BE1F CACR-SR03BF1FE CACR-SR03BY1F CACR-SR03BF1FY
USAFED-03 CACR-SR03BE1F CACR-SR03BF1FE CACR-SR03BY1F CACR-SR03BF1FY
USAFED-05 CACR-SR05BE1F CACR-SR05BF1FE CACR-SR05BY1F CACR-SR05BF1FY
USAFED-09 CACR-SR10BE1F CACR-SR10BF1FE CACR-SR10BY1F CACR-SR10BF1FY
USAFED-13 CACR-SR15BE1F CACR-SR15BF1FE CACR-SR15BY1F CACR-SR15BF1FY
USAFED-20 CACR-SR20BE1F CACR-SR20BF1FE CACR-SR20BY1F CACR-SR20BF1FY
USAFED-30 CACR-SR30BE1F CACR-SR30BF1FE CACR-SR30BY1F CACR-SR30BF1FY
USAFED-44 CACR-SR44BE1F CACR-SR44BF1FE CACR-SR44BY1F CACR-SR44BF1FYG
USAGED-02A CACR-SR02BE1G CACR-SR02BF1GE CACR-SR02BY1G CACR-SR02BF1GY
USAGED-03A CACR-SR03BE1G CACR-SR03BF1GE CACR-SR03BY1G CACR-SR03BF1GY
USAGED-05A CACR-SR05BE1G CACR-SR05BF1GE CACR-SR05BY1G CACR-SR05BF1GY
USAGED-09A CACR-SR10BE1G CACR-SR10BF1GE CACR-SR10BY1G CACR-SR10BF1GY
USAGED-13A CACR-SR15BE1G CACR-SR15BF1GE CACR-SR15BY1G CACR-SR15BF1GY
USAGED-20A CACR-SR20BE1G CACR-SR20BF1GE CACR-SR20BY1G CACR-SR20BF1GY
USAGED-30A CACR-SR30BE1G CACR-SR30BF1GE CACR-SR30BY1G CACR-SR30BF1GY
USAGED-44A CACR-SR44BE1G CACR-SR44BF1GE CACR-SR44BY1G CACR-SR44BF1GYD
USADED-05E CACR-SR05BE1D CACR-SR05BF1DE CACR-SR05BY1D CACR-SR05BF1DY
USADED-10E CACR-SR10BE1D CACR-SR10BF1DE CACR-SR10BY1D CACR-SR10BF1DY
USADED-15E CACR-SR20BE1D CACR-SR20BF1DE CACR-SR20BY1D CACR-SR20BF1DY
USADED-22E CACR-SR30BE1D CACR-SR30BF1DE CACR-SR30BY1D CACR-SR30BF1DY
USADED-37E CACR-SR44BE1D CACR-SR44BF1DE CACR-SR44BY1D CACR-SR44BF1DYS
USASEM-02A CACR-SR02BE1S CACR-SR02BF1SE CACR-SR02BY1S CACR-SR02BF1SY
USASEM-03A CACR-SR03BE1S CACR-SR03BF1SE CACR-SR03BY1S CACR-SR03BF1SY
USASEM-05A CACR-SR05BE1S CACR-SR05BF1SE CACR-SR05BY1S CACR-SR05BF1SY
USASEM-08A CACR-SR10BE1S CACR-SR10BF1SE CACR-SR10BY1S CACR-SR10BF1SY
USASEM-15A CACR-SR15BE1S CACR-SR15BF1SE CACR-SR15BY1S CACR-SR15BF1SY
USASEM-30A CACR-SR30BE1S CACR-SR30BF1SE CACR-SR30BY1S CACR-SR30BF1SY
| User name | Member Level | Quantity | Specification | Purchase Date |
|---|
-
Motorola MVME162 Embedded Controller -
HIMatrix Safety-Related Controller System Manual for the Modular Systems -
Motorola MVME2400 Series VME Processor Module -
Sieger System 57 -
KONGSBERG MRU product line continuation -
Woodward easYgen-3100/3200 Genset Control for Multiple Unit Operation -
Woodward MFR 300 Multifunction Relay / Measuring -
ABB AX410, AX411, AX413, AX416, AX418, AX450, AX455 and AX456 Single and dual input analyzers for low level conductivity -
ABB AX410, AX411, AX416, AX450 and AX455 Single and dual input analyzers -
Woodward easYgen-1400 Technical Manual Genset Control -
Woodward easYgen-400 Operation Manual Genset Control -
Woodward High Output Digital Valve Positioner (DVP）DVP5000/DVP10000/DVP12000 -
Woodward High Output Digital Valve Positioner DVP5000 and DVP10000 -
Woodward TG611-13/-17 Overspeed Test Device Conversion Kit -
Woodward MicroNet Safety Module (MSM) -
Woodward 2301A Electronic Load Sharing and Speed Control 9905/9907 Series -
Woodward-Service Bulletin 01671 -
UniOP eTOP40B 12.1” TFT color display -
UniOP eTOP40 TFT Color display -
UniOP eTOP33B 10.4” TFT color display -
UniOP eTOP33C eTOP33-0050 Resistive touchscreen -
UniOP eTOP30. eTOP32 eTOP32-0050 Human-machine interface equipment
-
UniOP eTOP20B and eTOP21B eTOP20B-0050 -
UniOP eTOP12 eTOP12-0050 Advanced human-machine interface equipment -
UniOP eTOP11 eTOP11-0050 HMI -
UniOP eTOP06C HMI -
UniOP eTOP06 HMI -
UniOP eTOP05EB eTOP05EB-DF45 HMI -
UniOP eTOP05. eTOP05P Human-machine interface equipment -
UniOP eTOP03 eTOP03-0046 -
UniOP eTOP507 507U2P1 eTOP Series 500 Human-Machine Interface -
UniOP eTOP307 -
UniOP ETT-VGA Human-machine interface touch unit -
UniOP ePAD32B, ePAD33B and ePAD33BT ePAD33B-0350 -
UniOP ePAD05 and ePAD06 -
UniOP CP02R-04 Human-machine interface -
UniOP ERT-16 - Industrial PLC Workstation -
UniOP ePAD03 and ePAD04 -
UNIOP EPALM10-DA71 state-of-the-art handheld HMI -
Watlow SERIES CLS200 SPECIFICATION SHEET -
Detailed Explanation of B&R Power Panel 300/400: The Core of Industrial Automation Control -

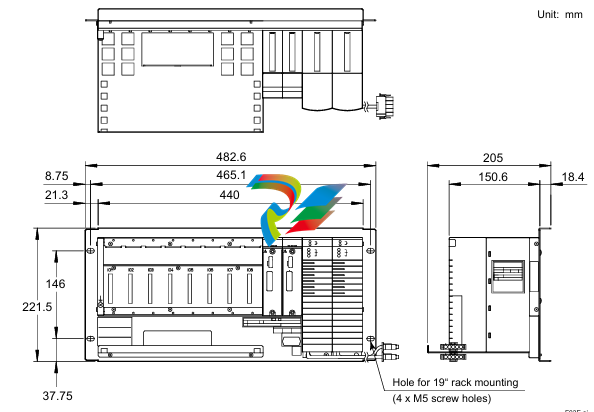

YOKOGAWA Models ANB10S, ANB10D, ANR10S, ANR10D Node Units (for FIO) -
