ABB PCS6000 medium voltage wind turbine converter

 PCS6000 medium voltage

wind turbine converter

Proven technology for efficient operation of large wind turbines

 and lowest levelized cost of energy

 Medium voltage converters for

large wind turbines

 The growing importance of regenerative energy

is accompanied by a rise in the demand for wind

power. Wind turbines are today attaining such

high power ratings that a medium voltage system

 is the optimum choice. It allows a higher energy

production through reduced losses in the

electrical drivetrain and lower installation costs

by eliminating expensive cable runs.

 Perfect match for large-scale wind turbines

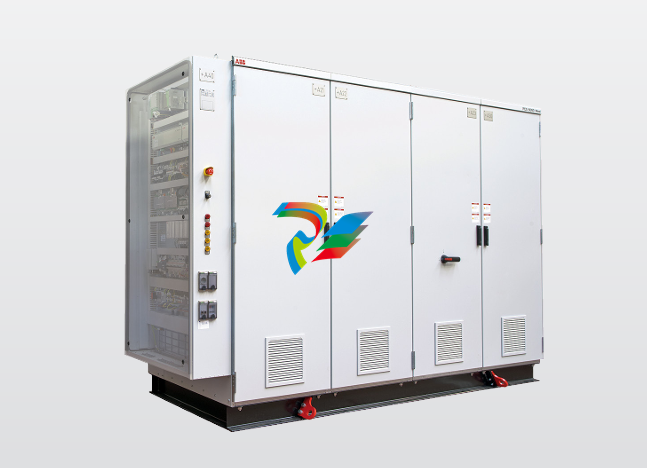

 ABB’s medium voltage wind turbine converter

is the perfect match for large-scale offshore

wind turbines. Available up to 15 MW, it can be

operated with permanent magnet and

 induction generators. Its compact footprint

allows nacelle or tower installations.

 Lowest cost of energy

 The PCS6000 helps to utilize the full potential of

wind energy, reliably and economically. It lowers

the levelized cost of energy (LCoE) through

maximum availability, high efficiency, advanced

grid code compliance and easy maintenance.

 Technology proven worldwide

 The PCS6000 wind turbine converter is based on

ABB’s medium voltage frequency converters

which are installed in thousands of applications

worldwide. With their excellent reputation for

 reliable operation in the harshest environments,

the converters are used in industrial and

propulsion drive systems, railway grid entities,

static VAr compensators, battery storage, tidal power plants and many other demanding

applications. The first PCS6000 Wind was

delivered in 2006

 The ABB approach – more than delivering

a product

 From the early evaluation phase of a new wind

turbine to final operation in the wind farm, ABB

provides first-class customer consulting,

support, training and services.

 ABB’s converter specialists are experts in all

aspects of the electrical system and will build

a drivetrain that functions perfectly – from the

generator through to grid integration.

 ABB’s life cycle management involves a highly

qualified service team and supporting software

tools for remote monitoring. They will maximize

the value of the equipment by maintaining

 trouble-free operation and ensuring maximum

availability.

 PCS6000 features

 • Full power converter for wind turbines

up to 15 MW

 • High efficiency due to medium voltage

technology

 • High availability due to low parts count and

long-life components

 • Low life-cycle costs

 • Modular design for easy customization

 • Advanced support and remote service tools

for enhanced reliability, availability and

performance
