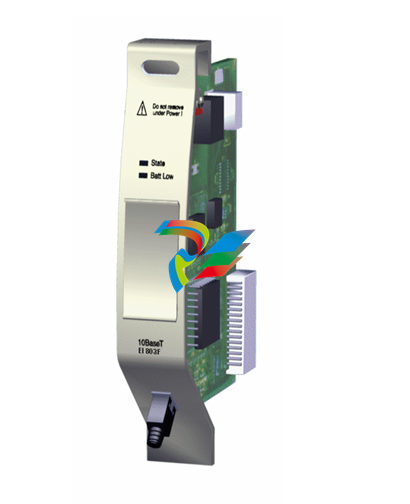

Ethernet Module EI 803F ABB

Features

 IEEE802.3 Ethernet standard

 provides 10BaseT compliant communication (10MBit)

 32-bit data bus

 Transmission rate 10 MBit/s

 Direct memory access to main memory, < 4% CPU over

head for operation

 Optional battery for redundant battery backup of main

memory

Description

These communication modules provide Ethernet communica

tions to the system bus compliant with IEEE802.3 standard.

Communications module, compliant with 10BaseT shielded

Twisted Pair (STP, cable category 3, 4 or 5 advanced)

LED Displays

State

 Off No supply voltage, module is isolated

 Green Power supply on, module identified and

ready to operate as configured.

 Orange Power supply on,

module identified and either:

  — normal transitory state after module

startup

  — configuration mode of Boot Loader

 Orange flashing Power supply on, module identified; mod

ule not connected to proper bus structure.

 Red Power supply on and either:

  — module not yet identified (normal for

short time during module startup)

  — error occurred during module test

Batt. Low

 Off Sufficient buffer battery voltage.

 Orange Buffer battery not found or low (insufficient

voltage).

Front Panel Connections

RJ-45 female connector (shielded).There are two integrated

LEDs indicating the current communication status. The LEDs

are not labeled but can be identified by their color. The upper

yellow LED indicates the link state, the lower green LED indi

cates active communication.

LED 10BaseT link

 off No active link. No communication possible.

 static yellow  Active link. Communication possible.

LED 10BaseT active

 off No communication.

Technical Data

Rated voltage 3.3 V / 5 V, ±3%, from CPU board

Power consumption max. 1.8 W

STP 10BaseT cable category 3, 4 or 5 ad

vanced

RAM and real-time-clock buffering time

  PM 802F  PM 803F

New battery inserted ≥ 1,5 years  without buffering

After “Low” warning ≥ 10 days

Battery 3.6 V lithium battery, 950 mAh

(not in the delivery)

Weight approx. 0.150 kg (without battery)

 flashing green Active communication.
