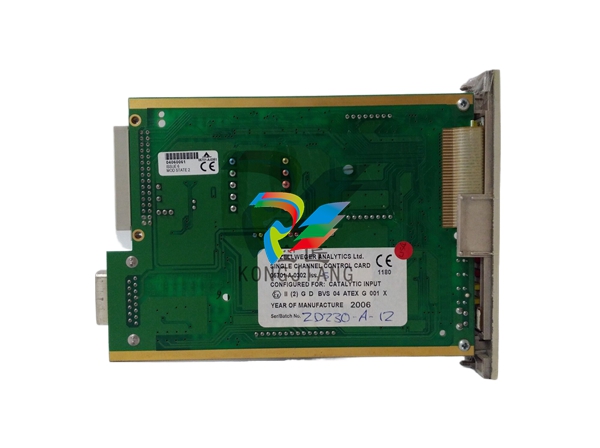

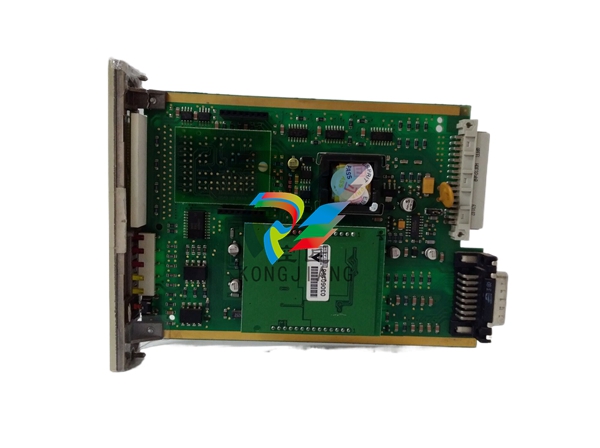

Honeywell 05701-A-0302

The Honeywell 05701-A-0302 is a remarkable single-channel control card engineered for various industrial applications. Manufactured by Honeywell, a trusted brand in industrial control, it guarantees top-notch quality and reliability. In terms of physical attributes, it has a compact form with dimensions approximately 17 cm in length, 2.5 cm in width, and 11.2 cm in height. This makes it suitable for installation within standard industrial control cabinets. Weighing around 0.165 kg, it's lightweight, facilitating easy handling during installation and maintenance. The shipping weight is about 1.5 kg.

The control card features a sophisticated four-part liquid crystal display. The analogue display, segmented into 25 parts, offers a detailed visual representation of the input signal. The four-character digital display provides clear numerical readings, while the four-character message display shows relevant status and error information. It comes equipped with a push-button that serves multiple functions like alarm reset and card selection, enhancing user convenience. Regarding signal processing, it efficiently manages incoming sensor drive module signals. It compares these signals with predefined alarm limits. When the signals exceed the limits, it activates alarms via front panel LEDs and can operate connected relays for further actions. It also exhibits excellent compatibility, working well with 4–20 mA and catalytic sensor drive modules. An optional analogue output module allows for remote data output. Overall, the Honeywell 05701-A-0302 is a versatile and dependable option for industrial applications demanding precise single-channel control and monitoring, especially in gas detection and related areas.
