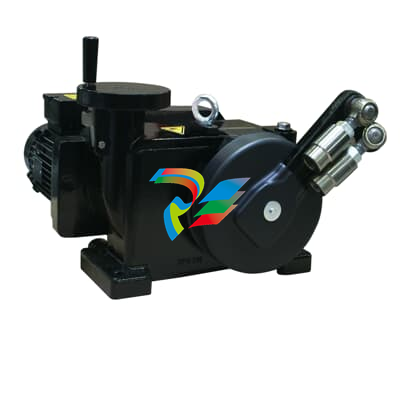

Electrical rotary actuator RHD250 (Contrac)

From:ABB | Author:yang | Time :2025-09-23 | 191 Browse: | 🔊 Click to read aloud ❚❚ ▶ | Share:

Electrical rotary actuator

RHD250 (Contrac)

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 250 Nm (200 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Process optimization thanks to maximum control precision

Maintenance-free up to 10 years

Electrical actuator for continuous positioning, three-point position control, or bus control

Stallproof without the need for position- or torque-dependent shut-off

Adjustable mechanical limit stops for defined operating range

Handwheel for emergency operation

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

Mounting rack installation

– Medium power range EBS852
