Communicate securely across your network with fast performance and versatile connectivity.

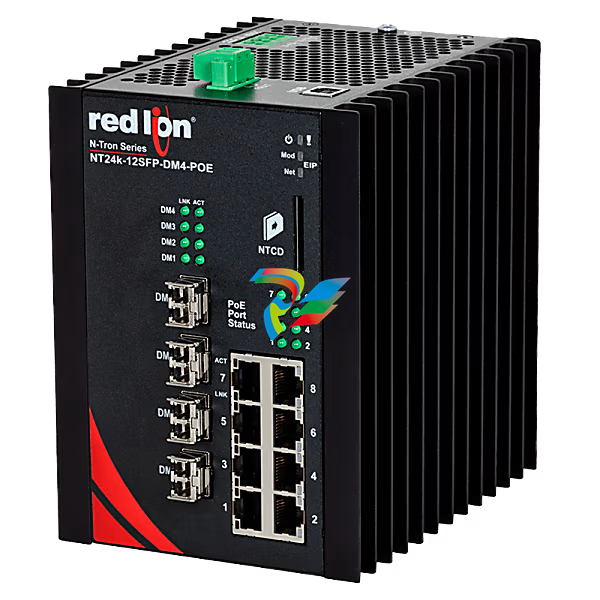

N-Tron® NT24K-12SFP-DM4-POE Managed 12-Port Gigabit Industrial Ethernet Switch

Item number NT24K-12SFP-DM4-POE

The N-Tron® NT24k 12-Port Managed Gigabit Industrial Ethernet Switch is one of the easiest to deploy Ethernet switches in the industry. Simplified use, uncompromised performance and multiple configurations to fit your automation and industrial needs. Eight copper 10/100/1000BaseTX ports that each support PoE+ and four dual mode (100/1000Base) SFP expansion slots.

Features and benefits

• Rugged and durable design

  Operates in extreme temperatures from -40° C to 80° C along with high shock and vibration tolerance. Designed to handle the most demanding environments.

• Flexibility with both copper and fiber ports

  Eight 10/100/1000BaseTX RJ-45 ports that support PoE+ on each port and four dual mode (100/1000Base) SFP expansion slots. SFP transceivers sold separately.

• Easy to use 10/100/1000BaseTX ports

  Auto-sensing for MDIX, speed and flow control. Supports full/half duplex operation and full wire speed.

• Reliable connectivity to industrial data

  The N-Tron NT24k managed Ethernet switch connects industrial operations to data reliably and efficiently. It provides an industry-ready way to move data across industrial networks.

• Robust security for your network switches

  Protect against unauthorized access with built-in security features: IEEE 802.1X port and user authentication (RADIUS), SNMP communication protocols, SSH/SSL/HTTPS, 16,000 MAC addresses and support for event logs and syslogs.

• Designed with network redundancy to maximize uptime

  High availability protocols (SNTP/RSTP, N-Ring), VLANs, Quality of Service (QoS), port trunking and mirroring, and IGMP auto-configuration maximize uptime and keep mission critical operations running.

• Fast Healing Ring network redundancy

  Comes with N-Tron’s N-Ring™ ~30ms healing technology. Pre-configured N-Ring ports make it easy to add new NT24k-series switches. Reconfigure by changing the ring from “auto-member” to “manager.”

• Design enhancements to simplify VLAN configuration

  Ease of use enhancements make VLAN configurations easier than ever. The graphical display shows a logical view of the switch, including the VLAN port and tag configuration.

• N-View™ monitoring technology

  Monitor multiple N-View™-capable switches from a single window. This Windows-based software reduces downtime by centralizing firmware management, grouping devices and scheduling firmware updates.

• Advanced features designed to meet future needs

  With advanced management, performance and security features provided right out of the box, you have tools you need now—and as your network needs grow.

• Leading certifications for industrial environments

  Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. IEEE 1613 and NEMA TS1/TS2 compliance. ABS Type approval for shipboard applications. Over 2 million hours MTBF.

• Redundant power inputs and surge protection

  Redundant power input (22-49 VDC). ESD and surge protection diodes on all copper ports.
