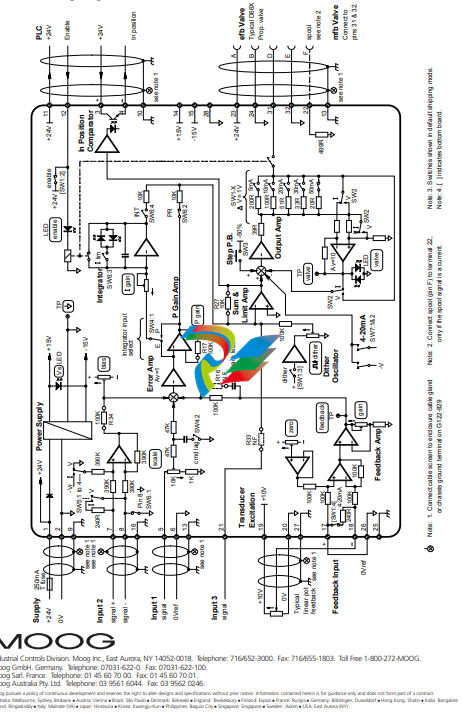

MOOGP-I Servoamplifier G122-829A001

From:MOOG | Author:LIAO | Time :2025-08-20 | 707 Browse: | 🔊 Click to read aloud ❚❚ ▶ | Share:

selectable lag of 55mS.

Input 2: Differential 4-20mA or ±10V,

switch selectable.

Connects to error amp via R34.

±15V max.

Rin = 390k – ±10V.

Rin = 240R – 4-20mA.

R34 is plug-in, 100K (default).

Input 3: Connects to summing amp via R33.

R33 plug-in. ±10V gives ±100% valve

drive when R33 = 10k Ohm, ±10% when

R33 = 100k Ohm.

Feedback input: Differential 4-20mA or ±10V,

switch selectable.

±15V max.

Rin 100k – ±10V.

Rin 240R – 4-20mA.

Feedback amp: Zero, ±10V.

Gain, 1 to 10.

Derivative (velocity) feedback via

plug-in resistor R16 and fixed capacitor.

Transducer excitation: +10V @ 10mA max.

Error amp: Unity gain.

Bias ±1.5V.

Proportional amp gain: 1 to 20 with R17 = 100k (default).

Max gain 2000 with R17 = 10M.

Integrator gain: 1 to 45 per second.

Integrator input: Switch selectable from output of unity

gain error amp or proportional gain amp.

Enable: Relay, +24V @ 8mA, 17 to 32V.

Output amp: Switch selectable voltage, current or

4-20mA, single ended output, return

to ground.

 V. ±10V, minimum load = 200 Ohm.

 I. ±5, 10, 20, 30, 50mA to a maximum

of ±100mA.

max load = 11V – 39 Ohm

I (Amp)

 4-20mA. Max load 500R.

Step push button: -50% valve drive disturbance.

Valve supply: Terminal 23, 300mA max.

In position: ±10% of valve drive. 20mA and 40V max

output to PLC.

Front panel Vs, internal supply – green

indicators: Valve drive positive – red

negative – green

Enable – yellow

In position – green

Front panel Valve ±10V (regardless of output

test points: signal selection)

Feedback amplifier output

signal 0V

Front panel Input 1 scale

trimpots: Error amp bias

(15 turns) P gain

I gain

Dither level

Feedback amp gain

Feedback amp zero

( )

Dither: 200 Hz fixed frequency.

±10% valve drive. Switch selectable

on/off.

Supply: Terminal 1,

24V nominal, 22 to 28V

75mA @ 24V, no valve current,

200mA @ 100mA valve current.

±15V output: Terminals 14 and 15,

± (110mA – max valve current).

Wire size range: 0.2mm2 to 2.5mm2

(24AWG to 12AWG).

Recommended M205, 250mA T (slow blow) fuse

supply protection: compliant to IEC127-2 sheet 3.

If terminal 23 is used to power a

proportional valve, the fuse should be

increased to cater for the extra current.

Mounting: DIN rail

IP 20

Temperature: 0 to +40ºC

Dimensions: 100W x 108H x 45D

Weight: 180g

CE mark: EN50081.1 emission

EN61000-6-2 immunity

C tick: AS4251.1 emission

19 Internet

www.moog.com/dinmodules
