ABBProduct Summary of Advant Controller 110

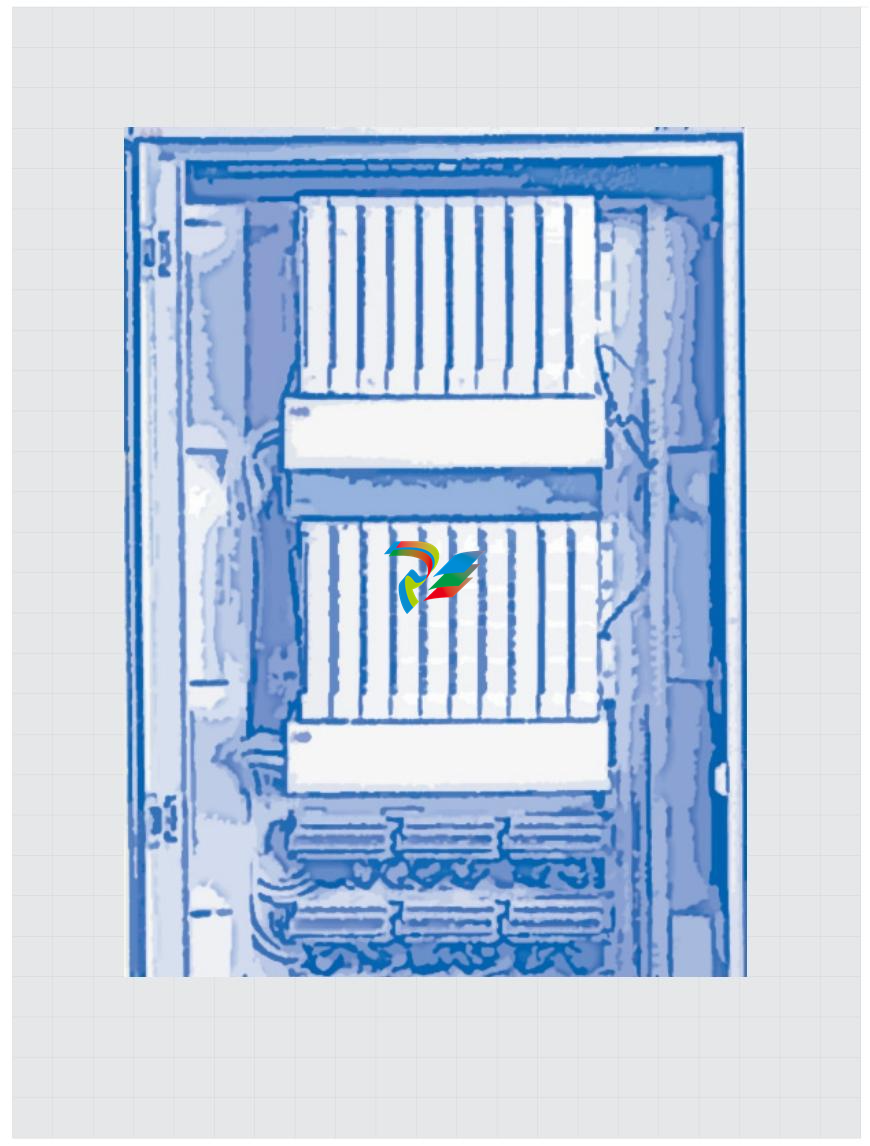

# Product Summary of Advant Controller 110   ## I. Product Positioning and Core Features   Advant Controller 110 is a mid-performance programmable processing station, specifically designed for control and regulation tasks in small and medium-sized industrial applications. It offers cost-effective solutions and significant expansion potential. It can operate as an autonomous workstation or be integrated into the **Advant OCS Open Control System**, suitable for control, sequence logic, regulation, counting, and data calculation tasks in various small and medium-sized industrial scenarios. It also supports event sequence recording based on timestamps.   ## II. Programming and Configuration   - **Programming Language and Tools**: Developed using ABB's proprietary graphical programming language **AMPL (ABB Master Programming Language)** and configured via the **Advant Station 100 Engineering Station**. Programs are created graphically by selecting function blocks and connecting them. Printed documents are consistent with on-screen displays, facilitating debugging.   - **Program Storage**: Application programs are stored in non-volatile electrically erasable memory, supporting immediate reprogramming without the need for battery backup.   ## III. Hardware and I/O Support   1. **Basic Interfaces**: Equipped with a standard RS 232 interface supporting MODBUS I or RCOM data remote transmission; an optional PROFIBUS interface is available to enhance distributed communication capabilities.   2. **I/O Device Compatibility**:     - Supports **S600 series I/O devices**, covering digital/analog signals and AC/DC voltage types, including standard and custom models with high contact density, high power, and high isolation voltage. All S600 devices feature a steel plate housing (IP20) for electromagnetic interference resistance and easy installation.     - Supports distributed I/O: Up to 32 S800 I/O stations can be connected via **Advant Fieldbus 100**; up to 126 third-party I/O stations can be connected via PROFIBUS, adapting to various factory topologies.   3. **Expansion Capability**: Supports flexible expansion, including hot-swappable modules (addable without shutdown), adding complete I/O racks, or expanding into a multi-station distributed control system.   ## IV. Communication Capabilities   Advant Controller 110 features strong cross-system communication capabilities, supporting multiple protocols and buses:   - **Core Bus**: Up to 80 stations can be connected via **Advant Fieldbus 100** (supporting redundant configuration), using twisted-pair or fiber optic cables with a maximum transmission distance of 1700 meters (depending on cable type).   - **Compatible Protocols**: Supports protocols such as PROFIBUS, RCOM/RCOM+, and MasterFieldbus, enabling seamless integration with other ABB controllers, distributed I/O, operator stations, and speed-controlled drives.   - **Third-Party Compatibility**: Can communicate with monitoring systems from other manufacturers via Modbus I and Siemens 3964R protocols.   ## V. Central Processing Unit Options   Three central processing units (CPUs) are available to meet different performance requirements:   | Processor Model | Frequency | Storage Capacity | Core Features |   |-----------------|-----------|------------------|---------------|   | PM632 (Basic)   | 16 MHz    | 256 kB           | Cost-effective, meeting basic control needs |   | PM633 (Extended)| 25 MHz    | 512 kB           | Double processing speed and storage capacity, supporting complex applications and future upgrades |   | PM634 (High-End)| 25 MHz    | 512 kB           | Equipped with PROFIBUS-DP master interface for field device integration, occupying two module slots |   ## VI. I/O Specifications and Functions   - **Digital I/O**: Supports various voltages (24 V DC, 48 V DC, 110-250 V AC/DC, etc.) with 16-32 channels. Features group isolation and short-circuit protection; some models support event recognition and timestamp recording.   - **Analog I/O**: Analog input resolution reaches 12-13 bits, supporting signals such as ±10 V/±20 mA; analog output resolution is 12 bits, supporting 0-20 mA, 4-20 mA, ±10 V, etc. Some models feature independent isolation.   - **Pulse Counting**: Supports pulse frequencies up to 100 kHz, including 5 counters (2 inputs per counter), with modes such as up/down counting, frequency/position/speed measurement.   ## VII. Software and Hardware Options   - **Software Functions**: Basic software supports program structured control, logical operations, timing, counting, code conversion, and calculation; optional functions include regulatory control, event handling, and multi-protocol communication (RCOM/RCOM+, MODBUS, Siemens 3964R).   - **Hardware Options**: Include Advant Fieldbus 100 interface modules (CI626V01 for coaxial cable, CI627 for twisted-pair), MasterFieldbus master/slave modules (CI671/CI670), and multi-channel communication modules (CI532V01 supporting RCOM+, CI532V02 supporting MODBUS, etc.).
