Tech-note tn105-3.doc - 10.01.2012 UniOP MKDG-06 1 UniOP MKDG-06

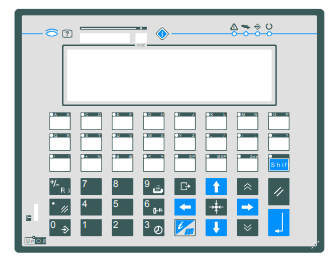

Low cost HMI unit with monochrome graphic LCD display
• Graphic monochrome display
• 8 rows, 40 columns of text
• Downloadable fonts
• Scalable text
• 23 function keys
• 24 user LEDs
• ASCII keyboard
• Multilanguage project capability
• Connection to bus systems
• New plastic bezel with flat design
Technical Data Display Monochrome LCD Backlight LED Graphics 240x64 pixels Display dimensions 127x34 mm Rows/columns 8x40 Character height - Scalable fonts Yes User definable characters 256 Contrast regulation Software User memory 512 KB (64 reserved to the protocol) User memory expansion 512 KB Function keys 23 System keys 24 Touch screen No User LEDs 24 System LEDs 5 PC/Printer port Yes PLC port RS-232, RS-422, RS-485, CL 20 mA Aux port (fieldbus connection) Yes, with optional module External keyboard port No Programming speed 9600 ÷ 38400 bps Page size 32 rows Number of variables per page Unlimited Recipe memory 16 KB UniNet network Client/Server Alarms 1024 Event list 256 Alarm info page Yes Password Yes Battery Yes Hardware RTC Yes Screen saver No Buzzer No Fuse 2 A (user replaceable) Power supply voltage 18 ÷ 30 VDC Max power consumption at 24VDC ~ 400 mA Max panel thickness 5 mm Weight Operating temperature 0 ÷ 50 °C Storage temperature -20 ÷ 70 °C Operating and storage humidity 5 ÷ 95 % UR non-condensing

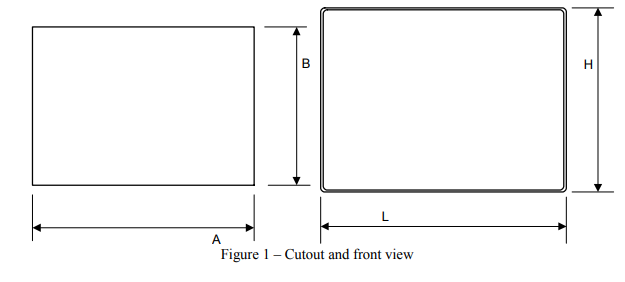

Front dimensions and cutout
Front dimensions LxH 220 x 176 mm 8.66 x 6.93 ”
Cutout AxB 207 x 163 mm 8.15 x 6.42 ”
Cutout depth – version –0045 76 mm 2.99 “
Cutout depth – version –0050 (Snap-top) 79.7 mm 3.14 “
Ordering Information
MKDG-06-0045 Graphic LCD display, 260x64 pixel, 8lines 40 characters, 23 function
keys, alphanumeric keypad. PLC, PC/Printer and Aux Ports
-
