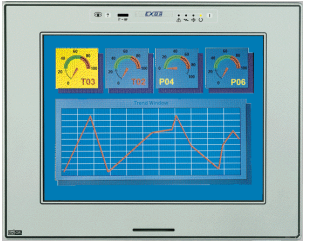

Tech-noteUniOP eTOP40

• 12.1” diagonal graphic display

• TFT Color display

• SVGA (800x600 pixels) resolution

• Shows up to 40 rows, 100 characters

of information

• Resistive touch screen

• Connection to industrial bus systems

• Connection to Ethernet

• Compatible with HMIcontrol and local

I/O subsystems

• Large memory size (8 MB Flash)

• IP65 front panel protection

• Programmable with UniOP Designer

version 5.08

The eTOP HMI panels are part of the eTOUCH family of touch screen products. All of the eTOUCH

products support the rich common functionality of the UniOP operator panels:

• Powerful and intuitive programming with the UniOP Designer software

• Support of more than 130 communication drivers for industrial devices

• Optional modules for fieldbus systems (Profibus DP, DeviceNet, Interbus, CANopen) and Ethernet

• Display data in numerical, text and bargraph format

• Dynamic graphic objects

• Data acquisition and trend presentation

• Analog gauges

• Recipe data storage

• Keyboard/Touch macro editor

• Alarms and historical alarm list

• Eight level password protection

• Report printing to serial printer

Technical data

Display Colors Backlight Lifetime

eTOP40 TFT color LCD 256 CCFL 50000 h (typ)

Display

Graphic resolution 800x600 pixels

Active display area 246x184 mm (12.1”diagonal)

Rows/columns 40x100

Character height -

Scalable fonts Yes

User definable characters 256

Contrast regulation -

Memory

User memory 8 MB SSFDC memory card

User memory expansion -

Front panel

Function keys -

System keys -

Touch screen Resistive (guaranteed 3 M operations)

User LED’s -

System LED’s 5

Connections

PC/Printer port Yes

PLC port RS-232, RS-485, RS-422, 20 mA CL

Aux port (fieldbus and Ethernet

connection)

Yes, with optional modules

External keyboard port No

Programming speed 9600 - 38400 bps

Functionality

Page size -

Number of variables per page Unlimited

Recipe memory 32 KB

UniNet network Client/Server

Alarms 1024

Event list 1024

Alarm info page Yes

Password Yes

Battery Yes

Hardware RTC Yes, battery backed

Screen saver Yes

Buzzer Yes, audible feedback for touch screen

Power supply voltage 18 - 30 VDC

Max power consumption ~ 800 mA at 24 VDC

Fuse Automatic

Weight ~ 2.85 Kg

Operating temperature 0 to 45 °C

Storage temperature -20 to +70 °C

Operating and storage humidity 5 – 95 % RH non-condensing

Protection class IP65 (front panel)

The product is designed for installation in an industrial environment in compliance with the regulations:

Emitted interference EN 61000-6-4, 2001

Noise immunity EN 61000-6-2, 2001

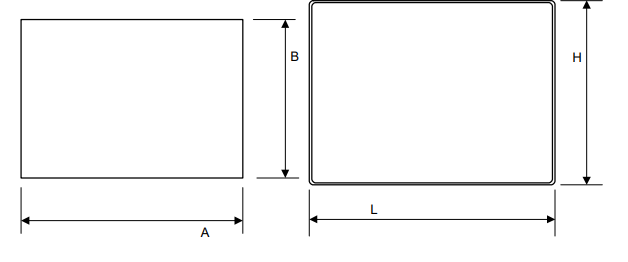

Front dimensions and cutout

Faceplate LxH 337x267 mm 13.26x10.51“

Cutout AxB 326x256 mm 12.83x10.08“

Cutout depth (version -0050) 91 mm 3.58”

Max panel thickness 5 mm 0.2”
