schneiderFoxboro Evo™ Process Automation System Product Specifications

Critical software processes are often placed onto stand-alone workstations, with redundancy provided

through replicating that configuration. This permits continued plant operation during maintenance as well as

in the unusual event of a workstation failure. Workstations can be remotely mounted in secure enclosures

and/or spaces with the operator interface equipment installed through the use of Remote Graphics Units.

OVERVIEW

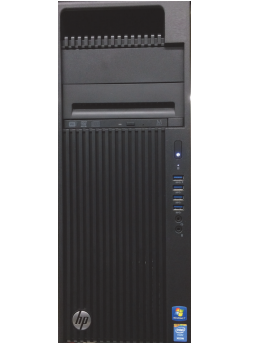

The Model H92 workstation can be used with

Foxboro Evo™ Control Core Services software and

Foxboro Evo Control Software, and can also provide

a platform for Foxboro®, third-party, and user-written

applications.

As a multipurpose workstation running the

Windows 7 64-bit operating system, the H92

workstation supports execution of system

applications, data communications for a

broad range of applications, file serving

capabilities, and display of graphics and text. It also

interfaces with corporate networks at a local or

worldwide level.

The workstation supports a mouse or optional

trackball, an alphanumeric keyboard, up to four USB

annunciator or annunciator/numeric keyboards, and

one to four monitors. The H92 workstation also

supports an optional USB touchscreen (purchased

separately with the monitor) and an optional USB

speaker set (purchased separately).

The workstation features up to three internal serial

ATA hard disk drives, which may be optionally

configured as RAID1, and comes with 4 GB of ECC

RAM memory (expandable to 16 GB). The processor

supports an internal DVD+RW drive.

Client/server communication is accomplished using

the TCP/IP networking protocol with the integrated

Ethernet network port or optional Ethernet network

interface cards (NICs).

As indicated by the CE logo, the Model H92

workstation conforms to the applicable European

Union directives.

Workstation Security

The Foxboro Evo workstation supports optional

product features to allow customers to meet plant

requirements for enhanced workstation security.

Plant requirements for enhanced Foxboro Evo

workstation security can be met through a

combination of new product security enhancements

as well as implementing best security policies,

practices, and procedures.

Foxboro Evo workstation enhanced product security

requirements are supported in two broad categories,

namely, workstation software including passwords,

and workstation platform hardening.

Workstation software supports:

 Changeable log-on passwords

 Individual user passwords

 Password lock-out after a user-configurable

number of unsuccessful log-in attempts and

secured mechanisms to reset login

 Password aging that requires password change

on a periodic basis

 Password support of alphanumeric and symbol

characters as per Microsoft convention

 Password file protection

 User accounts and optional McAfee or Symantec

firewalls for Microsoft Windows 7-based

workstations managed from a central location

through Microsoft Domains and Active Directory

 User account creation, deletion, and modification

tracking

 User logon/ logoff tracking

 Least privilege file and account access

 Necessary system services running in non-admin

accounts where possible

 Security patches from software suppliers,

including Microsoft, with patch status reporting

 Anti-virus software, including malware protection

supported as well as Anti-Spyware software

support

Workstation platform hardening supports:

 Unnecessary services, software, and programs

removed

 Unneeded software ports disabled

 Optional host intrusion prevention to protect the

use of software ports that may be used,

depending on the software configuration

 Documentation on how to re-enable services and

ports where required by special circumstances

 Secure BIOS changes

Installation Considerations

These new security enhancements are supported

only on Microsoft Windows 7 and Windows Server

2008 R2 stations which support the control network

and require a software update to the latest Foxboro

Evo software release to obtain these security

features. The security enhancements can be

deployed on a subset of workstations to increase

security, but in order to maximize security protection,

all workstations need to be updated to the latest

software release to obtain the full benefits.

Optional McAfee® Software Packages

Refer to PSS 31S-4McAfee for the product

specifications for the optional McAfee products.

Optional Symantec™ Software Packages

Refer to PSS 31S-4SYMANTC for the product

specifications for optional Symantec endpoint

protection.

FEATURES

The Model H92 workstation, available with a Foxboro

Evo S10 software license, can:

 Host Foxboro Evo control stations

 Support data communications to directly

connected process I/O devices

 Serve as an application platform

 Serve as a human to machine interface (HMI)

station

 Function on Ethernet control systems
