schneiderFoxboro Evo™ Process Automation System Product Specifications

Critical software processes are often placed onto stand-alone workstations, with redundancy provided

through replicating that configuration. This permits continued plant operation during maintenance as well as

in the unusual event of a workstation failure. Workstations can be remotely mounted in secure enclosures

and/or spaces with the operator interface equipment installed through the use of Remote Graphics Units.

OVERVIEW

The Model H92 workstation can be used with

Foxboro Evo™ Control Core Services software and

Foxboro Evo Control Software, and can also provide

a platform for Foxboro®, third-party, and user-written

applications.

As a multipurpose workstation running the

Windows 7 64-bit operating system, the H92

workstation supports execution of system

applications, data communications for a

broad range of applications, file serving

capabilities, and display of graphics and text. It also

interfaces with corporate networks at a local or

worldwide level.

The workstation supports a mouse or optional

trackball, an alphanumeric keyboard, up to four USB

annunciator or annunciator/numeric keyboards, and

one to four monitors. The H92 workstation also

supports an optional USB touchscreen (purchased

separately with the monitor) and an optional USB

speaker set (purchased separately).

The workstation features up to three internal serial

ATA hard disk drives, which may be optionally

configured as RAID1, and comes with 4 GB of ECC

RAM memory (expandable to 16 GB). The processor

supports an internal DVD+RW drive.

Client/server communication is accomplished using

the TCP/IP networking protocol with the integrated

Ethernet network port or optional Ethernet network

interface cards (NICs).

As indicated by the CE logo, the Model H92

workstation conforms to the applicable European

Union directives.

Workstation Security

The Foxboro Evo workstation supports optional

product features to allow customers to meet plant

requirements for enhanced workstation security.

Plant requirements for enhanced Foxboro Evo

workstation security can be met through a

combination of new product security enhancements

as well as implementing best security policies,

practices, and procedures.

Foxboro Evo workstation enhanced product security

requirements are supported in two broad categories,

namely, workstation software including passwords,

and workstation platform hardening.

Workstation software supports:

 Changeable log-on passwords

 Individual user passwords

 Password lock-out after a user-configurable

number of unsuccessful log-in attempts and

secured mechanisms to reset login

 Password aging that requires password change

on a periodic basis

 Password support of alphanumeric and symbol

characters as per Microsoft convention

 Password file protection

 User accounts and optional McAfee or Symantec

firewalls for Microsoft Windows 7-based

workstations managed from a central location

through Microsoft Domains and Active Directory

 User account creation, deletion, and modification

tracking

 User logon/ logoff tracking

 Least privilege file and account access

 Necessary system services running in non-admin

accounts where possible

 Security patches from software suppliers,

including Microsoft, with patch status reporting

 Anti-virus software, including malware protection

supported as well as Anti-Spyware software

support

Workstation platform hardening supports:

 Unnecessary services, software, and programs

removed

 Unneeded software ports disabled

 Optional host intrusion prevention to protect the

use of software ports that may be used,

depending on the software configuration

 Documentation on how to re-enable services and

ports where required by special circumstances

 Secure BIOS changes

Installation Considerations

These new security enhancements are supported

only on Microsoft Windows 7 and Windows Server

2008 R2 stations which support the control network

and require a software update to the latest Foxboro

Evo software release to obtain these security

features. The security enhancements can be

deployed on a subset of workstations to increase

security, but in order to maximize security protection,

all workstations need to be updated to the latest

software release to obtain the full benefits.

Optional McAfee® Software Packages

Refer to PSS 31S-4McAfee for the product

specifications for the optional McAfee products.

Optional Symantec™ Software Packages

Refer to PSS 31S-4SYMANTC for the product

specifications for optional Symantec endpoint

protection.

FEATURES

The Model H92 workstation, available with a Foxboro

Evo S10 software license, can:

 Host Foxboro Evo control stations

 Support data communications to directly

connected process I/O devices

 Serve as an application platform

 Serve as a human to machine interface (HMI)

station

 Function on Ethernet control systems

Model H92 Base Configuration

The Model H92 workstation contains the following

elements:

 Intel Xeon® processor

 4 GB DDR-3 ECC RAM (expandable to 16 GB)

 500 GB SATA hard drive (expandable to up to

1.5 TB with a third hard drive)

 PCI Express™ x16 video slot

 Internal DVD+RW/CD drive

 Dual monitor graphics card – supports one or

two monitors, digital only (optional DisplayPort to

VGA adapter is available)

 Integrated 10/100/1000BaseT Ethernet port

 Universal Serial Bus (USB) interface ports for:

• Mouse

• Keyboard

• Audio speakers (optional)

• Touchscreens (optional)

• USB annunciator keyboard (optional)

Model H92 Additional Options

The Model H92 workstation offers the following

options:

 Add up to 16 GB of system RAM

 A second or third SATA hard drive

 An internal SATA RAID1 system with an optional

configuration of a hot spare with a third hard drive

 Up to three Ethernet network interface cards

 GPS Time Synchronization card

 USB annunciator keyboards

 Trackball

 Analog monitor graphics card (supports one to

four analog monitors)

 A Human Interface extension unit (RGU) up to

150 m (492 ft) servicing the following devices:

• Up to four video monitors

• Up to five USB devices

Mounting Options

With dual or quad PCIe video cards, the Model H92

workstation can be located up to 30 m (100 ft) from

the monitor, using direct connect, analog video and

other human interface cables available from Foxboro.

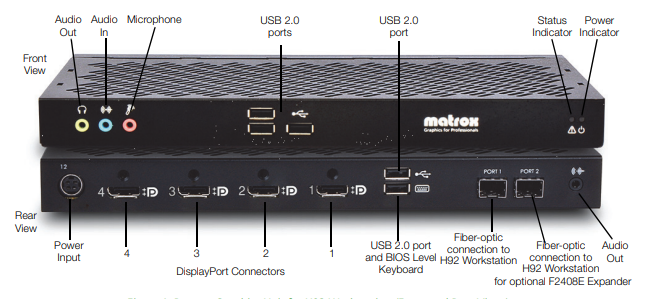

Two optional Remote Graphics Unit (RGU) offerings

are provided for each workstation to enable video,

USB, and FireWire devices to be located at a

distance from the workstation (refer to “REMOTE

GRAPHICS UNIT FOR H92 WORKSTATION

OVERVIEW” on page 8). Devices that can be remote

mounted via the RGU include monitors, the keyboard

and mouse (or trackball), audio via USB speakers,

USB touchscreens, and external USB floppy drives.

FUNCTIONAL SPECIFICATIONS (H92)

Processor Type

Intel Xeon

Memory

4 GB DDR4 ECC Registered Memory standard

(expandable to 16 GB)

Devices Served

PERIPHERALS

One, two, or three 500 GB SATA hard drives, and

DVD+RW (SATA)

VIDEO DISPLAYS (UP TO 4)

23-inch LCD USB Touchscreen Monitor

23-inch LCD Monitor

40-inch LCD Overview Monitor.

INTERFACES TO EXTERNAL DEVICES

USB

Mouse or optional trackball

QWERTY

Up to four USB annunciator keyboards via

an optional USB hub, local (up to 1.8 m

(6 ft)) or up to 30.5 m (100 ft) away – for

these extended connections, refer to the

USB extension kits in Annunciator

Keyboard/Panel (PSS 31H-4E1)

Up to four optional touchscreens (via RGU,

hub, or direct)

External speakers

Internal Diagnostics

Self-checking is performed at power-up.

Video

OUTPUT TYPE

Dual Digital DisplayPort with Digital Visual

Interface (DVI) adapters (standard)

Quad Digital DisplayPort with Digital Visual

Interface (DVI) adapters (optional)

DisplayPort to Analog VGA adapters (optional)

OUTPUT TYPE (CONT.)

Remote Graphics Unit (optional) supports dual or

quad analog or DVI graphics

OPTIONAL PCI express VIDEO INTERFACE(1)

Quad card – supports up to four analog monitors

SCREEN PRESENTATION

Refresh Rate

Up to 85 Hz

Colors

Over 65,000(2)

Resolution

Up to 1600x1200 pixels (maximum)

Widescreen (16:9) (Supported by

23-Inch LCD Monitor)

Up to 1920x1080 pixels

Serial Interface Ports

No onboard serial ports

GPS Time Synchronization

Optional card provides GPS support. Refer to Time

Synchronization Overview (PSS 31H-1TIME).

Ethernet Interface Communications

Up to three PCIe Ethernet network interface cards

provide connection to Ethernet data bus

(10/100Base-TX or 100Base-FX).

As well, the H92 has one Integrated Ethernet port

(10/100/1000Base-T).

Power Requirements

INPUT VOLTAGE

100 or 240 V ac (nominal) @ 8.0 A, auto select

47 to 66 Hz Operating Line Frequency Range

POWER CONSUMPTION

525 W maximum output power supply

ENVIRONMENTAL SPECIFICATIONS (H92)

Operating

TEMPERATURE

5° to 35°C (40 to 95°F)(3)

RELATIVE HUMIDITY

8% to 85%, noncondensing

ALTITUDE

+3,048 m (10,000 ft)

DYNAMIC

Shock

Operating: ½-sine: 40g, 2-3ms (~62 cm/sec)

NOTE: Values represent individual shock events

and do not indicate repetitive shock events.

Vibration

Operating random: 0.5g (rms), 5-300 Hz up

to 0.0025g2/Hz

NOTE: Values do not indicate continuous

vibration.

Storage

COOLING

Above 1524 m (5,000 ft.) altitude, maximum

operating temperature is derated by 1°C (1.8° F)

per 305 m (1,000 ft.) elevation increase

TEMPERATURE

-40° to +60°C (-40° to +140°F)

RELATIVE HUMIDITY

8% to 90%, noncondensing

ALTITUDE

-15.2 to +9,144 m (-50 to +30,000 ft)

DYNAMIC

Non-Operating

½-sine: 160 cm/s, 2-3ms (~100g)

square: 422 cm/s, 20g

NOTE: Values represent individual shock events

and do not indicate repetitive shock events.

Non-Operating Random

2.0g (rms), 10-500 Hz

NOTE: Values do not indicate continuous

vibration.

Location

UL/UL-C listed as suitable for use in ordinary

locations and meets ordinary safety standards for fire

and shock hazards.

Contamination

Class G1 (Mild) as defined in ISA Standard S71.0

Safety Certifications

USA, CANADA

UL Listed to UL 60950-1:2007 and CSA Certified

to C22.2 No. 60950-1-07

EUROPE

Complies with the Low Voltage Directive

2014/35/EU and the following Harmonized

Standards:

EN 60950-

1:2006+A11:2009+A1:2010+A12:2011

EN 60825-1:2007 Class 1

Complies with the following International

Standards:

IEC 60950-1:2005 2nd ED+A1:2009+A2:2013

IEC 60825-1:2007 Class 1

GB4943.1-2011 (China)

EMC

USA, CANADA

Complies with FCC Part 15, Class B

ICES-003, Issue 5

EUROPE

Complies with the EU EMC Directive 2014/30/EU

and the following Harmonized Standards:

EN 55022:2010 / CISPR 22:2008 Class B

EN 55024:2010 / CISPR 24: 2010

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2013

Other Regulations

Complies with EU Energy Use Regulation (EC) No.

1275/2008 and the Harmonized Standard EN

50564:2011

Complies with EU RoHS Directive 2011/65/EU under

the following Harmonized Standard: EN 50581:2012

Dimensions

PROCESSOR

Height

431 mm (17.0 in)

Width

168.91 mm (6.65 in)

Depth

444.7 mm (17.5 in) measured to the rear of

the service panel

Mounting

Tabletop, Metal Enclosure (1000x1000 mm) or

Modular Industrial Enclosure (MIC)

4U rack dimensions

Weight

Exact weights depend upon configuration.

MINIMUM

11.0 kg (24.3 lbs.)

STANDARD

13.5 kg (29.8 lbs.)

MAXIMUM

17.5 kg (38.5 lbs.)

Heat Dissipation

525 WATTS WIDE-RANGING, ACTIVE POWER

FACTOR CORRECTION, 85% EFFICIENT

POWER SUPPLY

Typical: 1311 btu/hr (330 kg-cal/hr)

Maximum: 2185 btu/hr (551 kg-cal/hr)

REMOTE GRAPHICS UNIT FOR H92 WORKSTATION OVERVIEW

The H92 workstation can be configured with a

Remote Graphics Unit PCIe card that connects to a

Remote Graphics Unit (RGU) by way of fiber-optic

cabling. The USB keyboard, mouse, trackball,

touchscreens, floppy drive, and audio can be

connected through the RGU, which may be located

at distances from the H92 of up to 70 m (230 ft) with

62.5/125 μm fiber or 150 m (492 ft) with 50/125 μm

fiber cable. Fiber cable with LC/LC connections

greater than 50 m (164 ft) is user-supplied.

The RGU (see Figure 1) features five USB 2.0 ports

(one which supports a BIOS level keyboard), and

passive (fanless) cooling. The RGU also includes a

universal input power supply.

For video connections, the RGU includes four

DisplayPort ports, which can directly connect to up

to four DisplayPort monitors.

Interfaces to External Devices  Five USB 2.0 ports for mouse, optional trackball, keyboard, USB speakers, floppy drive, or up to four optional touchscreens  Audio connections, including microphone, audio input, and audio output connections NOTE If four USB touchscreens are to be utilized, a USB hub must be selected for use with this server. (Refer to part numbers P0928EH, P0928EJ, P0923FS, and P0923FT for the touchscreens.)  RGU includes four DisplayPort ports, and can directly support connections to up to four DisplayPort monitors. Distance Specifications The RGU allows distances between the H92 workstation and attached devices of up to 70 m (230 ft) with 62.5/125 μm fiber or 150 m (492 ft) with 50/125 μm fiber cable. Fiber cable with LC/LC connections greater than 50 m is user-supplied. Kit Contents REMOTE GRAPHICS UNIT KIT, DUAL (P0928DU) Remote Graphics Unit (P0928DR) PCIe card for RGU (P0928DT) 15 m (50 ft) starter LC/LC fiber cable (P0972TP) REMOTE GRAPHICS UNIT KIT, QUAD (P0928DV) Remote Graphics Unit (P0928DS) PCIe card for RGU (P0928DT) 15 m (50 ft) starter LC/LC fiber cable (P0972TP)

Operational

TEMPERATURE (INDOORS, IN CABINET)

0° to 55°C (32° to 131°F)

RELATIVE HUMIDITY (INDOORS)

20% to 80%, noncondensing

VIBRATION

NEBS level 3 Seismic Zone 4(4)

MAXIMUM ATMOSPHERIC PRESSURE

650hPa (3,580 m / 11,745 ft) to

1013hPa (0 m / 0 ft)

Non-Operational, Storage, and Transportation

TEMPERATURE

-40° to + 75°C (-40° to +167°F)

RELATIVE HUMIDITY (IN PACKAGED

CONFIGURATION)

5% to 95%

VIBRATION

NEBS level 3 Seismic Zone 4(4)

MAXIMUM ATMOSPHERIC PRESSURE

192hPa (12,000 m / 39,370 ft) to

1020hPa (-50 m / -164 ft)

EMC Certifications

Class A (commercial, industrial, or business)

Laser Emissions

850 nm laser compliant to 21CFR, Subpart J, Class 1

RGU Environmental

LOCATION

Is suitable for use in ordinary locations and is

designed to meet ordinary safety standards for

fire and shock hazards

CONTAMINATION

Class G1 (Mild) as defined in ISA Standard

S71.04

Interface Card

F2208 F2408 F2408E EXPANDER

Provided with an OM2 multi-mode 50/125 μm

optical cable – 5 m (16 ft).

MONITORS SUPPORTED

2, 4, 4

DIGITAL MONITOR SUPPORT

DVI, DisplayPort

MEMORY

1 GB

MAXIMUM ANALOG RESOLUTION

1920 × 1200 - DisplayPort to HD-15 adapter sold

separately.

MAXIMUM DIGITAL (DVI) RESOLUTION

Up to 2048 × 1152

MAXIMUM DISPLAYPORT RESOLUTION

Up to 2048 × 1152, and 2560 × 1600

OPERATING SYSTEMS SUPPORTED

(64-bit) Windows 7, Windows Server 2008 R2,

Windows Server 2008, (32-bit) Windows Vista,

Windows XP, and Windows Server 2003

DIMENSIONS

Height

29 mm (1.15 in)

Width

300 mm (11.8 in)

Depth

147 mm (5.8 in)

LASER EMISSIONS

850 μm laser compliant to 21CFR, Subpart J,

Class 1

EMC CERTIFICATIONS

Class A: ACMA, CE, FCC, VCCI

INTERFACE CARD

Optical

CARD TYPE

PCIe ×1

FORM FACTOR

Low-profile

CABLE TYPE SUPPORTED

LC-LC optical, Duplex

MAXIMUM DISTANCES

NOTE

Fiber cable with LC/LC connections greater than

50 m is user-supplied.

OM1(5) multimode 62.5/125 μm (max. 70 m /

230 ft)

OM2(5) multi-mode 50/125 μm cable (max.

150 m / 492 ft)

OM3(5) multi-mode 50/125 μm cable (max.

380 m / 1247 ft)

OM4(5) multi-mode 50/125 μm cable (max.

400 m / 1312 ft)

OS1, OS2(6) Single-mode 9/125 μm cable (max.

1000 m / 3280 ft)*

EMC CERTIFICATIONS

Class A: ACMA, CE, FCC, VCCI

Power Consumption and Supply Voltage

TEMPERATURE, OPERATIONAL

0° to 55 ºC (32° to 131 ºF)

TEMPERATURE, NON-OPERATIONAL,

STORAGE AND TRANSPORTATION

-40° to 70 ºC (-40° to 158 ºF)

HUMIDITY, OPERATIONAL (INDOOR)

20% to 80% (non-condensing)

HUMIDITY, NON-OPERATIONAL STORAGE

AND TRANSPORTATION

5% to 95% (non-condensing)

ATMOSPHERIC PRESSURE, OPERATIONAL

650hPa (3,580 m / 11,745 ft)

to 1013hPa (0 m / 0 ft)

ATMOSPHERIC PRESSURE, NONOPERATIONAL AND TRANSPORTATION

192hPa (12,000 m / 39,370 ft)

to 1020hPa (-50 m / -164 ft)

Power Consumption and Supply Voltage

(Continued)

ESTIMATED MTBF (MEAN TIME BEFORE

FAILURE)

Interface Card

70.81 years @ 40 ºC

Extio F2208 Unit

26.87 years @ 40 ºC (excluding power

supply)

Extio F2408 Unit

23.20 years @ 40 ºC (excluding power

supply)

Extio F2408E Expander Unit

22.68 years @ 40 ºC (excluding power

supply)

INTERFACE CARD

Maximum Power Consumption

6.5 W

EXTIO UNIT

Power Requirements

12 V dc, maximum 5 A

(5 A fuse for overcurrent protection)

Power Connector

Mini-DIN 4 female (4-pin)

MAXIMUM POWER CONSUMPTION

Calculated for the following configuration: a USB

keyboard and mouse, two other USB devices,

and four DisplayPort monitors.

External Power Supply

Input ac Voltage Range

90 to 264 V ac

Input Frequency

47/63 Hz

Input Connector

IEC 60320-C14

Output Voltage

12 V dc

Output Connector

Mini-DIN 4 male (4-pin) with lock

Maximum Power Output

60 W
