HITECHPWS-1711 Series PLC Workstation

Pws-1711, a sister series of PWS-3000 PLC Workstation, is ready to serve for your applications now. The

PWS-1711 is equipped with a 5.7" quarter VGA (320Hx240V) liquid crystal display and analog resistive

touch screen. The IP 65 (NEMA 4) rated front panel seal and INDUSTRIAL GRADE touch screen make the

product rugged and durable. With the CE mark on the product, you can count on the PWS-1711 as a

dependable partner of your applications.

ADP3, the configuration software for all the PWS500S, PWS-700T, PWS-1700, PWS3100 and PWS-3700, is

a Windows program to help you design screens and set up the Workstation. The various static and

dynamic objects provided by the ADP3 allows you to create practical and beautiful screens without

increasing your effort of PLC programming. The available types of dynamic objects include: Push Button,

Numeric Display/Entry, Character Display/Entry, Multistate Indicator, Range Indicator, Prestored Message

Display, Moving Sign, Time Display, Date Display, Bar Graph, Deviation Bar Graph, Trend Graph, Pie

Graph, X-Y Chart, Panel Meter, State Graphic, Animated Graphic, Dynamic Rectangle, Dynamic Circle,

Historical Trend Graph, Historical Data Table, Historical Event Table, Alarm History Table, Active Alarm

List, Alarm Frequency Table, Password User Level, Macro Function, and Multi-lingual Support.

Over 75 kinds of PLC are supported now and the number is still increasing. A special multidrop

configuration allows you to connect up to 8 units of PWS-1711 to one PLC without extra cost

· Hardware Specification

Item PWS1711-STN

Display Type Monochrome blue mode STN LCD , 4 gray Levels

Display Size 5.7" (diagonal)

Number of Pixels 320x240

Display Adjustment Contrast adjustable from touch screen

Back Light CCFL; Life time is 20,000 hours under normal temperature and humidity

Touch Screen

Analog resistive type; Max. Number of switches are 40x30

 Chemically strengthened glass backing panel;

Over 1 million point activations;

Hard coat is resistant to most solvents and chemicals

CPU Type CPU : INTEL 80188XL20

Input Power 24VDC±10%; under 10W

Flash Memory 1M byte (BIOS 64K byte, Firmware 128K byte, User memory 640K byte)

System RAM 64K byte

Battery Backed Memory x

Communication Ports COM1: RS232/ RS485 9Pin female

COM2: RS232/RS422/RS485 25Pin male

EPP Printer Port x

Front Panel Seal IP65 / NEMA 4

Operating Temperature 0~50°C

Storage Temperature -20~60°C

Ambient Humidity 20-90% RH (non-condensing)

Vibration Endurance 0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions

Shock Endurance 10G, 11ms three times in each direction of X, Y, and Z axes

RF Emissions CISPR 22, Class A

Electrostatic Discharge EN61000-4-2/1995

RF Susceptibility ENV50140/1993

High Frequency Transients EN61000-4-4/1995

Weight 1.25 Kg

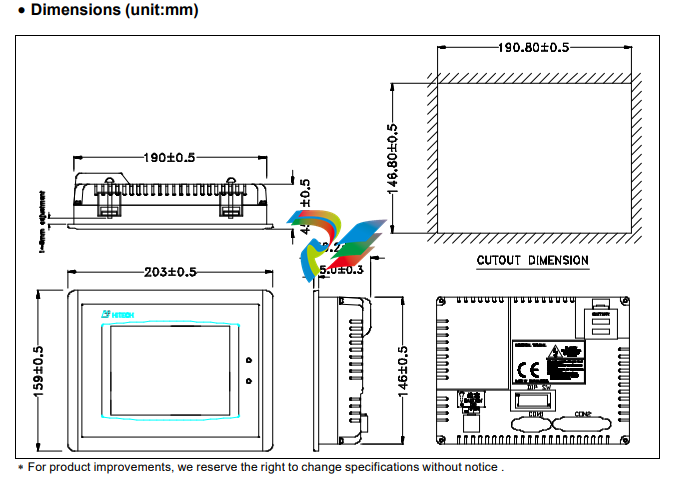

Cooling Natural cooling
