NIDECUnimotor hd, Unimotor fm, NT Series and XV Series 0.9 - 1,204 lb-in (0.11 - 136 Nm) 230 V | 460 V Servo Motors

used to automatically optimize the drive settings. This feature

simplifies commissioning and maintenance, ensures consistent

performance and saves time

Example

using the NT motor family and Digitax ST servo drive family

Step 1: The application requires 12 lb-in continuous torque.

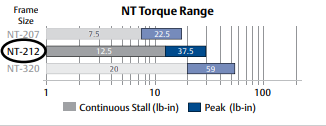

Step 2: The Servo Motors brochure lists the NT-212 motor

with 2.7 A stall current.

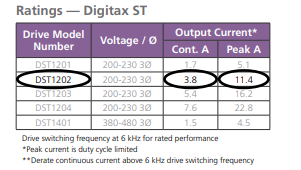

Step 3: Select the Digitax ST drive with adequate current rating.

Unimotor fm 230 V / 460 V

Flexible Configuration AC Servo Motors

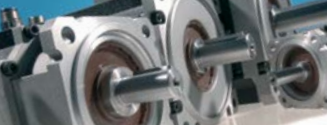

Unimotor fm is a high performance, brushless AC Servo

motor range matched for use with Control Techniques' brand

drives. “FM” stands for “Flexible Motor” and is designed to

accommodate a wide range of applications. The motors are

available in six frame sizes with various mounting arrangements

and motor lengths. Control Techniques' drives and motors are

designed to function as an optimized system. Unimotor fm is the

perfect partner for Unidrive M, Digitax ST and Epsilon EP servo

drives.

Key Features

• Torque range: 12.4 to 1204 lb-in (1.4 to 136.0 Nm)

• Medium inertia design with high inertia option available

• Connector styles include vertical, low profile and

90° rotatable

• Variety of flange possibilities (IEC/NEMA)

• Holding brake option

• IP65 conformance

• Winding to suit 230 V and 460 V

• Speed options include 2000, 3000, 4000 and 6000 rpm

• Multiple feedback options:

• Resolver: Robust for extreme applications and

conditions — lower accuracy, medium resolution

• Incremental encoder: High accuracy, medium resolution

• Absolute: Medium accuracy, medium resolution, single-turn

and multi-turns

• SinCos/Absolute: High accuracy, high resolution, single-turn

and multi-turn

• HIPERFACE (SICK) and EnDat (Heidenhain) protocols

supported

NOW WITH EVEN HIGHER PERFORMANCE!

Electronic Nameplate Capability

When a Unidrive M, Unidrive SP or Digitax ST servo drive is

connected to a SinCos or absolute encoder, it can recognize and

communicate with the motor to obtain the “electronic nameplate”

data. This motor data can then be used to automatically optimize

the drive settings. This feature simplifies commissioning and

maintenance, ensures consistent performance and saves time.

Unimotor fm Order Information
