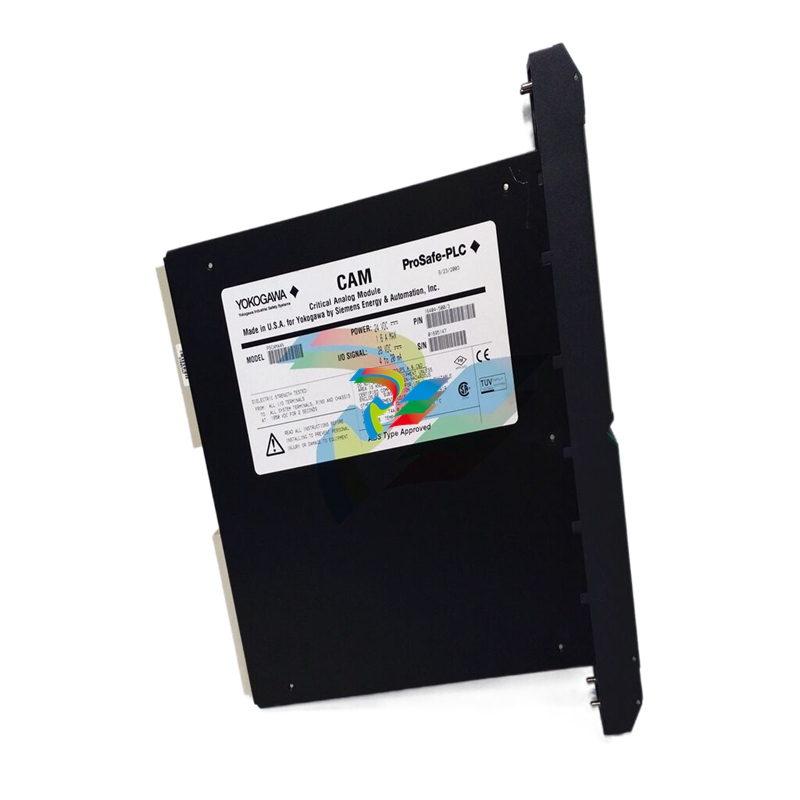

YOKOGAWA JPSCAMAAN 16404-5003

The PSCAMAAN 16404-5003 is a critical analog module by Yokogawa. Here is a detailed description of this product: 1. **General Information**:    - **Manufacturer**: Yokogawa, a renowned name in the industrial automation and control field, ensures high-quality manufacturing and reliable performance.    - **Model Number**: Specifically identified as 16404-5003, which is a unique identifier for this particular module within Yokogawa's product range. 2. **Technical Specifications**:    - **Power Requirements**: Operates with a power supply of 24 VDC, with a maximum current consumption of 1.6 A. This power input enables the module to function effectively within various industrial power setups.    - **I/O Signal**: Accepts an input signal range of 28 VDC and is capable of handling 4 to 20 mA signals. This makes it suitable for a wide range of industrial process monitoring and control applications where such signal ranges are common.

   - **Display and Indication**: It may have relevant display elements or indicators to provide visual feedback on the status of the analog signals being processed. For example, it could have a display for showing the current analog value or certain status indicators for signal strength or errors. 3. **Physical Characteristics**:    - **Dimensions**: With specific dimensions of 5.1 cm x 25.4 cm x 30.5 cm, it has a relatively compact form factor that allows for convenient installation in control panels or other industrial equipment enclosures.    - **Weight**: Weighs approximately 1.9 kilograms, which is a manageable weight for installation and handling, but also indicates the robustness of the internal components. 4. **Environmental Parameters**:    - **Operating Temperature**: Can operate within a temperature range of 0°C to 60°C, enabling it to function in a wide variety of industrial environments with normal temperature variations.    - **Storage Temperature**: Has a storage temperature range of -20°C to 70°C, allowing for safe storage even in environments with extreme temperature fluctuations when the module is not in use.    - **Humidity**: Can handle a high level of humidity, with a non-condensing relative humidity of up to 90% at 40°C, ensuring reliable operation in humid industrial settings.

5. **Other Features and Benefits**:    - **Interference Resistance**: Incorporates features such as shielding and filtering to resist external interference. For instance, it has shielding for major components like the power transformer, CPU, and programmer to prevent interference from external electromagnetic fields. Filtering is also applied to the power supply system and input lines to eliminate or suppress high-frequency interference.    - **Isolation**: Utilizes photoelectric isolation between the CPU and I/O circuits, which effectively isolates the electrical connection between the input and output, reducing the risk of fault misoperations caused by electrical interference between different parts of the system.    - **Module Structure**: It has a modular structure, which offers several advantages. In case of a module failure, it can be quickly replaced, minimizing downtime for maintenance and repair. This also helps in troubleshooting as individual modules can be easily identified and replaced if found to be faulty.    - **Certifications and Compliance**: May have relevant certifications such as UL, ensuring that it meets certain safety and quality standards for use in industrial applications.
