GEOperation ManualBently Nevada™ Asset Condition Monitoring

Additional Information

Notice:

This manual does not contain all the information required to operate and maintain

the product. Refer to the following manuals for other required information.

3300 System Overview (Part Number 80171-01)

3300 System Installation Instructions (Part Number 80172-01)

3300 System Troubleshooting (Part Number 80173-01)

3300/12 AC Power Supply (Part Number 89602-01)

3300/14 DC Power Supply,(Part Number 101256-01)

3300/02 TDe System Monitor (Part Number 167388-01)

3300/03 SDI/DDI System Monitor (Part Number 89604-01)

3300 Internal Barrier Manual (Part Number 88837-01)

Product Disposal Statement

Customers and third parties, who are not member states of the European Union, who are

in control of the product at the end of its life or at the end of its use, are solely

responsible for the proper disposal of the product. No person, firm, corporation,

association or agency that is in control of product shall dispose of it in a manner that is

in violation of any applicable federal, state, local or international law. Bently Nevada LLC

is not responsible for the disposal of the product at the end of its life or at the end of its

use.

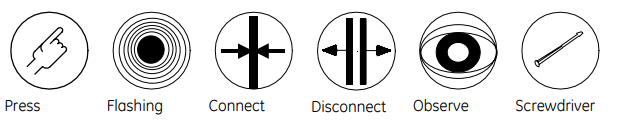

SYMBOLS

Special symbols are used in the manual to illustrate specifics in the step-by-step

processes. For example:

1. Purpose

Since the original design of the 3300 monitoring system, the Serial Data

Interface/Dynamic Data Interface (SDI/DDI) communication protocols have been added.

As a result, there are now three different 3300 configurations in the field: Original, Mixed,

and SDI/DDI configurations. The purpose of this Compatibility Guide is to assist field

personnel with the identification of each configuration and to explain the differences

between these configurations. This document is not intended to be an upgrade guide to

change from one configuration to another.

The 3300 system has been enhanced to upgrade the computer/communications

interface options. The 3300/03 SDI/DDI communication protocols were released in April

1992 with external SDIX/DDIX, TDIX and TDXnet™ communication processors released in

August 1992, July 1993 and December 1997, respectively. The internal Transient Data

enabled (TDe) communications processor was released in July 2004. 3300 components

that have been changed to implement these interface options are the System Monitor,

AC and DC Power Supply, Rack Backplane, and individual monitor firmware. 3300

systems that consist of all the upgraded components are referred to as an SDI/DDI

system or TDe system. The SDI/DDI system uses the 3300/03 System Monitor and the

TDe system uses the 3300/02 System Monitor.

The information in this guide is divided into these two sections:

Section 2, System Identification, lists the four configurations of the 3300 Monitoring

System which are authorized by Bently Nevada LLC and shows how to identify each one.

Identifying your system will help you make decisions about replacement parts and

computer/communications interfaces.

Section 3, System Compatibility, describes the compatibility between 3300 systems,

communication interfaces, and monitoring and diagnostic software.

Table 1 on the following page shows some definitions and explanations for the part

numbers and abbreviations used in this guide

2. System Identification

This section should be used to help define and identify each of the four configurations of

the 3300 Monitoring System Bently Nevada LLC supports. The configurations are defined

by the rack (backplane version), Power Supply, System Monitor, and firmware installed in

individual monitors. The four possible 3300 configurations are explained below.

Use Table 2 on the next page to clarify exactly which 3300 configuration you may have.

2.1 Configuration Definitions

2.1.1 Original System

This is the first generation 3300 System. This system may have serial communication

capability, but it predates and is not compatible with the internal data interfaces (TDe or

SDI/DDI) and most recent external communication processors (SDIX/DDIX, TDIX and

TDXnet™ CPs). The Original System can, however, communicate with a Digital Control

System (DCS) or with DM2000 Software through a DDM, PDM, or TDM CP.

These systems can be upgraded to the Mixed System, TDe or SDI/DDI System

configuration, depending on your interface requirements.

2.1.2 Mixed System

This is the Original System with a 3300/03-01 System Monitor that does not have internal

SDI/DDI capabilities but can interface to a DDM, TDM, PDM CP. In order to interface to an

SDIX/DDIX, TDIX or TDXnet™ CP, the firmware in each monitor must be SDI/DDI

compatible.

NOTE: The System Monitor must be configured correctly with jumpers depending upon

the external Communication Processor that is being used. The DDM, TDM, and PDM use

a different static interface than the SDIX/DDIX, TDIX, and TDXnet™ CPs. Refer to the
