ABBJim Day, System Technology Consultant, Power Generation Group Symp hony Plus U p d a t e

Transferring to Limited Lifecycle 12/2013 Transferring to Limited Lifecycle 12/2013

 Replaced by BRC410

 PBA200 transitioning to Classic in 2013 PBA200 transitioning to Classic in 2013

 Replaced by PBA800

 RFO800 transitioning to Classic in 2013 RFO800 transitioning to Classic in 2013

 Replaced by RFO810

 IO 800 t a s t o g to C ass c 0 3 R800 transitioning to Classic in 2013

 Replaced by IOR810

Symphony Plus S+ Control & I/O Rack S+ Control & I/O Rack: BRC410

 Combines BRC400 controller power Combines BRC400 controller power with HPG800 device integration capabilities into one module

 Current Firmware M 1 Current Firmware M _ 1

 Form / fit / function upgrade for either BRC400 or HPG800

 Used in redundant configurations with Used in redundant configurations with HPG800 or BRC400 modules

 On-line upgrades of installed BRC400 and HPG800 possible through use of BRC410 i d d t i BRC410 in redundant pair

Composer – Symphony Plus Engineering

 Version 5 0 3 Version 5.0.3

 Classic in 2011

 Limited life cycle 12/2013 Limited life cycle 12/2013

 Version 5.1

 Transitioning to Classic 12/2013 Transitioning to Classic 12/2013

 All v e s o s ep aced t e s o 6 r sio n s replaced wi th V e r sion 6

Symphony Plus – Engineering Composer Harmony version 6 0

What’s new in version 6.0:

 New Microsoft O p gy eratin g S ystems

 Windows 7 32Bit and 64Bit

 Server 2008 32Bit and 64Bit

 PNI800, HPC800, PDP800 Support

 Integration with S+ Operations

 New Console Type (database)

 From Composer launch S+ Operations faceplate

 From S+ Operations launch Composer’s ‘View & Monitor’

 New FC s: ’ 205 206 and 207 205, 206, and 207

 Release of Composer System Ver. 1

 Release of Composer Field Ver 1 Release of Composer Field Ver. 1

Symphony Plus – Engineering Composer System version 1 0 Composer System version 1

 New Microsoft Operating Systems

 Windows 7 32Bit and 64Bit

 Server 2008 32Bit and 64Bit

 Used for planning Symphony Plus Systems

 Network Planning

 Ethernet Switches

 P.C.’s

 System Planning

 Launch Composer

 Bulk Import / Export tool

 Bulk configurations

 Centralized backup and restore

Symphony Plus – Engineering Composer Field version 1 0

 New Microsoft Operating Systems

 Windows 7 32Bit and 64Bit

 Server 2008 32Bit and 64Bit

 Integrates Profibus and Hart with Composer

 Supports commissioning of field devices

 Status and Re p g ortin g to workstation

 Import and Export Field Device Templates

 Create Field Device Templates Create Field Device Templates

 Bulk Data Interface of devices

 Sync Harmony project with Field Devices

Harmony Gateway Software (HGS)

 Version 5 0 Version 5.0

 Classic in 2011, transitioned to limited in 2013

 Version 5.1

 Transitioning to Classic 12/2013

 Replaced by version 6.0

 10,000 modbus points

 Support for HPC800

 8 servers and 128 clients

 Uses MS access 2007, must convert

Computer Interfaces

 ICT03A

 Limited since 2006, replaced by ICT13A

 ICT13A – does not support 64 bit OS does not support 64 bit OS

 Transitioned to classic 2013, replaced by IET800

 ICT12

 Limited since 2007, replaced by IET800

Symphony Plus – Control and I/O INICI800: Ethernet CIU INICI800: Ethernet CIU

ICI800: INFI -Net to Computer Interface Net to Computer Interface

 Ethernet interface to INFI-Net used by Console & Tool applications

 NIS21: Network Interface module

 IET800 requires NIS21

 IET800: INFI-Net to Ethernet Transfer

 Provides both 100 MB Ethernet & 19 2 to 115 2 KB Serial interfaces 19.2 to 115.2 KB Serial interfaces

 Supports up to 30,000 tags (Ethernet) and up to 5,000 tags

 Supported by:

 PPA,PPB , ConductorNT 6 sp4S h +C 51 d 4,Symp hony +,Composer 5.1 an d newer,Harmony OPC

Symphony Plus IEB800: INFI IEB800: INFI-Net to Ethernet Bridge

30,000 tag across the bridge

Self configuring, no configuration required

Scheduled to be released 2nd qtr 2013

ConductorNT

 Version 6 sp 4 Version 6 sp 4

 Transitioning to Classic 12/2013

 Microsoft end of life 2014 Microsoft end of life 2014

 XP end of support April 8,2014

 Replaced by Symphony Plus Operations or Process Portal A

Process Portal B

 Version 2 SP 2 Version 2 SP 2

 Classic in 2009

 Transitioning to Limited 12/2013 Transitioning to Limited 12/2013

 Microsoft end of life for OS 2014

 XP end of support April 8,2014

 Server 2003 end of support July 14,2015

 Replaced by Symphony Plus Operations or Process Portal A

Symphony Plus Operations

 Version 1 classic in 2013 Version 1 classic in 2013

 Update to version 1.1

 SP1 scheduled for 1 st SP1 scheduled for 1 qtr 2013 s qtr 2013

 Adds integral SOE for HPC800

 Version 2 scheduled end of 2nd qtr 2013

 Adds support for SPC600

 Adds SMS pa g g in g

 Microsoft end of life for OS

 Windows 7 SP1 1/14/2020

 Server 2008 R2 std 1/14/2020

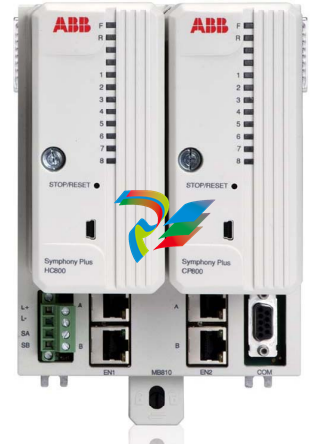

Symphony Plus S+ Control & I/O: HPC800

Based on field proven HPC800

 HC800: Harmony Control Processor

 Executes INFI 90 function codes

 BRC / HPG functionality Based on field proven technology:

• INFI 90 FC based

• INFI 90 exception reporting Composer tools

 BRC / HPG functionality

 CP800: Communications Processor

 Control network interface to Ethernet based plant network

• Composer tools enhanced with field device management capabilities

 Combination of NIS / NPM modules

 Provides more than 30x the performance of previous generation INFI90 rack cont ll (MFP MFC t ) trollers (MFPxx, MFCxx, etc.)

 Simultaneous support for Symphony Plus I/O, Harmony Rack I/O, and S800 I/O

 5 000 I/O 5,000 I/O ≤ 250 msec 250 msec

 Turbine control step change loop response ≤ 25 msec

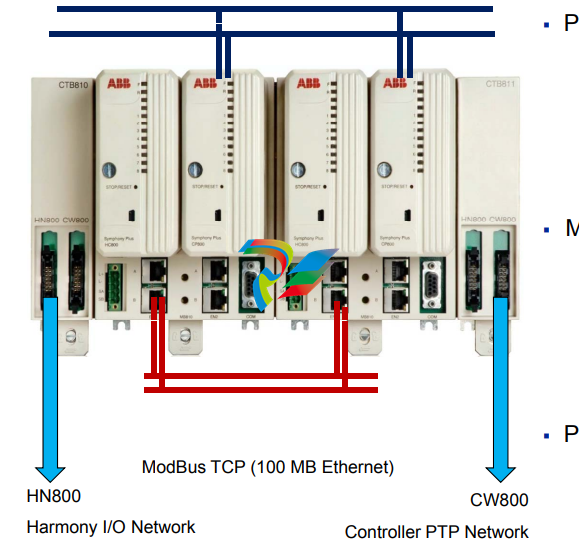

 Plant Network (PN800) PN800: S+ Plant Network (100 MB Ethernet TCP) Plant Network (PN800)

 Connects consoles (S+ Operations) and tools (S+ Engineering) to HPC800 controllers

 “INFI-Net over Ethernet”

 1,000 XR’s per second (process value updates)

 M db o us TCP

 Control integration of Modbus devices such as Intelligent Electrical Devices ( ), p y , IED), 3rd party PLCs, Wireless HART devices

 Up to 8 Servers & 128 Clients

 500, 1500, 3000, 4000 or 10K Points

 Peer-to-peer communications (CW800)

 500 Bus Signal updates ≤ 50 msec
