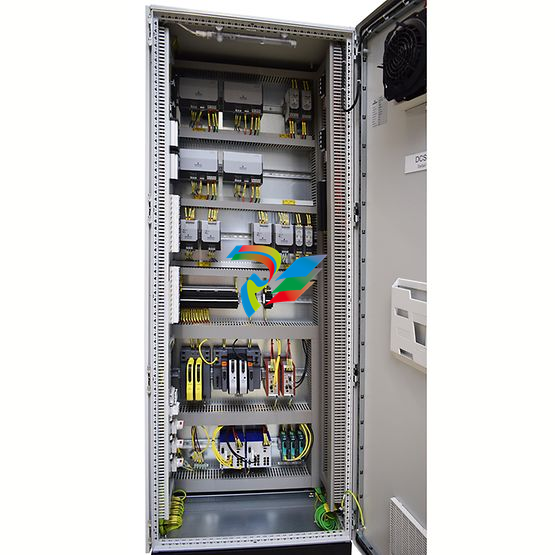

Emerson DeltaV CTO DCS cabinet

Emerson DeltaV CTO DCS cabinet

Product Description

The DeltaV CTO DCS cabinet provides a pre-designed off-the-shelf solution for the hardware of the DeltaV DCS CHARM I/O, S, and M series DCS systems. It is assembled in industry-standard cabinets and can be installed on-site and connected to on-site I/O at any time. The DeltaV CTO DCS cabinet is designed to comply with the General Place CSA mark (optional) and CE personal safety requirements, facilitating on-site installation and inspection. These cabinets can be seamlessly integrated into the overall hardware solution of the DeltaV project.

Specification

Size CHARM and controller cabinet

800mm (width) x 2000mm (height) +100mm base x 600mm (depth)

800mm (width) x 2000mm (height) (+100mm base) x 800mm (depth)

Traditional IO cabinet

800mm (width) x 2000mm (height) (+100mm base) x 800mm (depth)

1200mm (width) x 2000mm (height) (+100mm base) x 800mm (depth)

Network/Server cabinet

800mm (width) x 2000mm (height) (+100mm base) x 800mm (depth)

800mm (width) x 2000mm (height) (+100mm base) x 1000mm (depth)

800mm (width) x 2000mm (height) (+100mm base) x 1200mm (depth)

Entry method: Front entry – single door, right hinge, button and lock core

Front and rear entry – front and rear single doors, right hinge, button and lock core

Front-end and back-end entry – front and rear double doors, buttons and lock cores

Protection type: IP54. NEMA/12

IP20. NEMA/1 type, with vent door

The weight is only about 200kg for the front-end cabinet

Front-end and back-end cabinets ~ 300kg

Network/Server cabinet ~ 150kg (empty cabinet)

The hardware to be added may vary depending on the options.

Material: Cabinet frame: steel plate, 1.5mm, dipped in primer

Door: Steel plate, 2mm, dip coated with primer, external powder coating, texture painting

System cabinet color: RAL 7035. base RAL 9005

Network/server cabinet color: RAL 7035/RAL 9005. base RAL 9005

The door fan keeps running or is controlled by a thermostat

The bottom of the cable entry port

The power supply is required to achieve redundant distribution through the main circuit breaker.

100-120VAC 50/60Hz

220-240VAC 50/60Hz

24VDC

It is equipped with one of the following internal power supply systems

2 x 20A and fully redundant (primary and standby) 24VDC distribution

2 x 40A and fully redundant (primary and standby) 24VDC distribution

Redundant copper (RJ45) for control network

Multimode FO with FO IOP (applicable to the EU only)

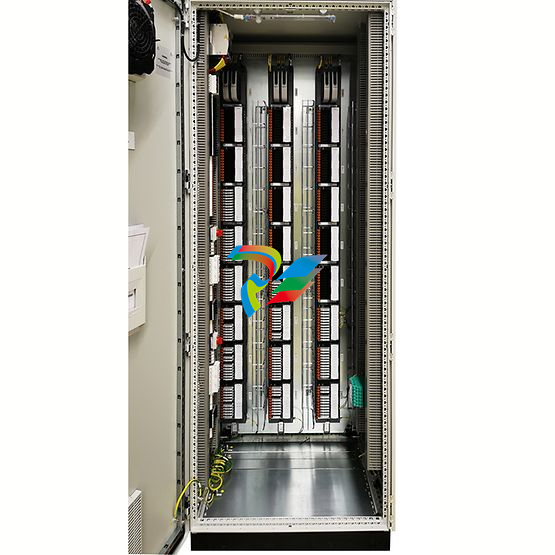

IO quantity/type DeltaV DCS CHARM cabinet:

Up to 504 IO AC power supply CIOC

DCS – CIOC with non-IS and IS IO CHARM

Controller cabinet

Up to 288 CHARM IO

DCS – CIOC with non-IS and IS IO CHARM

M/S series DeltaV traditional IO hardware

Server/Network cabinet

Network cabinet

Server/network cabinet

A nameplate bracket with a nameplate core

Environmental specifications: Indoor installation

Equipment Room – HVAC controlled, recommended temperature: +25°C (+77°F)

IT Computer Room – Recommended temperature: +20°C (+68°F)

Relative humidity 5-95% (no condensation)

Global certification in Europe: CE

North America: General Premises (CSA mark) – Optional

The peak value of vibration 1 mm, from 5 Hz to 16 Hz, and 0.5 g, from 16 Hz to 150 Hz

Features

Electronic wiring is achieved through CHARM technology or the controller cabinet of the CHARM system

Fast delivery

Reduce the system’s occupied space

Significantly reduce the cabinet design work

The packaging has complete records
