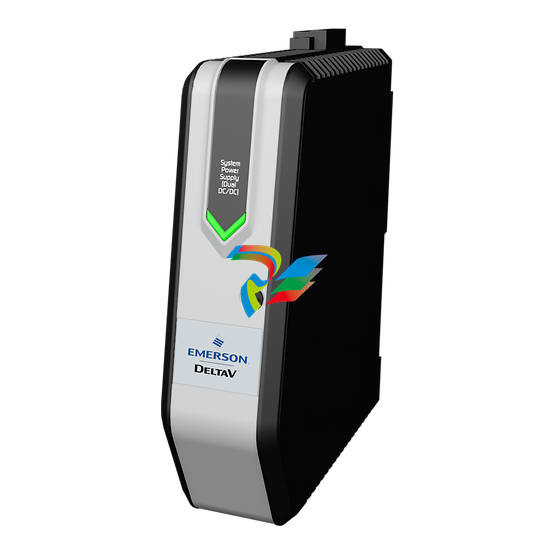

Emerson DeltaV™ M Series enhanced DC-to-DC power supply

Emerson DeltaV™ M Series enhanced DC-to-DC power supply

Product Description

The DeltaV™ power supply kit provides power to the system’s electronic components and on-site. The DeltaV system power supply offers you the most efficient and reliable power solution. It can provide all the power your DeltaV system needs.

Specification

Input 12 VDC (4%-5%), 14.8A, 24 VDC (20%), 6.1A

When the surge (soft start) exceeds the 12 VDC input range, A maximum peak surge of 12 A lasting 5 ms is generated (excluding the 12 VDC output). When it exceeds the 24 VDC input range, a maximum peak surge of 20 A lasting 5 ms is generated (including the 12 VDC output)

Output rated power (-40 to 60°C) : +12 VDC (12 VDC input) at 13A, +12 VDC (24 VDC input) at 8.0A, +5 VDC at 2.0A At 2.0A, + 3.3VDC (the combined output of + 5VDC and + 3.3VDC is a total of 10W

Output rated power (60 to 70°C) : 10A + 12VDC (12VDC input), 6.0A + 12VDC (24VDC input), 2.0A + 5VDC, 2.0A + 3.3VDC BM26 (The combined output of + 5VDC and + 3.3VDC is a total of 10W)

Input protection: Non-replaceable internal fuses

Overvoltage protection with a protection output of 110% to 120%

Hold time output: Maintain within 5% of the nominal value at full load, and the minimum input voltage for 5 ms (excluding 12 VDC current for 12 VDC input)

Features

The components are plug-and-play

Rail-mounted type

Internal power bus

Modular power supply

Precise output

Power supply redundancy

Fault detection

The system is isolated from the on-site power supply
