GEHydran* M2 Transformer Gas Monitoring System Installation Guide

others designated by the Buyer where such products or services are not normally

supplied by GE Energy.

The preceding paragraphs set forth the exclusive remedies for all claims based

on failure of or defect in Products covered by this manual, whether the failure or

defect arises before or during the applicable Warranty Period and whether a claim,

however instituted, is based on contract, indemnity, warranty, tort (including

negligence) or civil liability, strict liability or otherwise. The foregoing warranties are

exclusive and are in lieu of all other warranties and guarantees whether written, oral,

implied or statutory. NO IMPLIED STATUTORY WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY.

GENERAL WARNINGS

• Mishandling of the Hydran M2 sensor (such as a

perforation or scratch on the membrane or subjecting

the sensor to paint or solvent) voids the warranty.

• It is recommended to read all warnings and

considerations given in Chapter 1 of the Hydran M2

Instruction Manual before proceeding with the

installation.

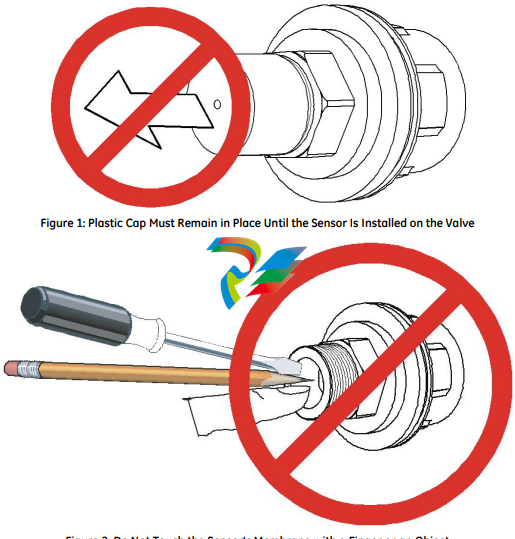

Figure 2: Do Not Touch the Sensor’s Membrane with a Finger or an Object

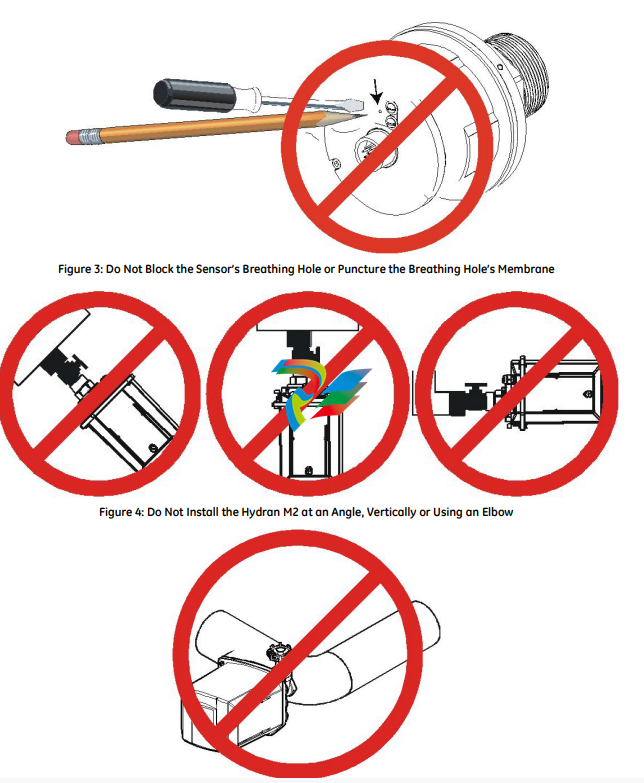

Hydran* M2 Installation Guide

Hydran* M2 Installation Guide

16375 v9.0 Oct 12

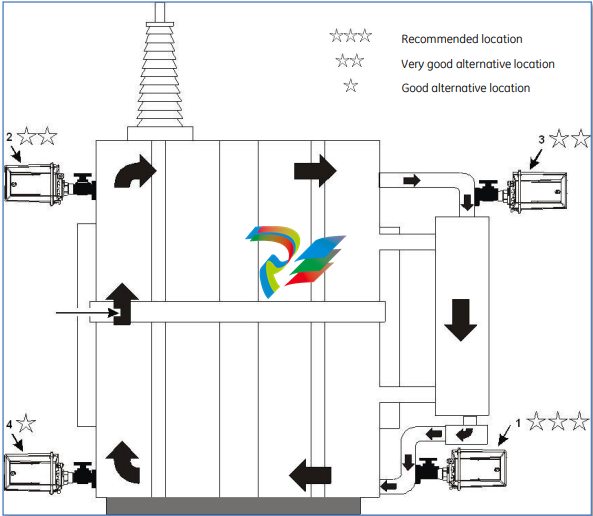

For a typical transformer, the four most common locations to install the Hydran

M2 are shown in Figure 10. For details, refer to Table 1 overleaf.

If these typical locations cannot be used, contact the GE

Energy Customer Service for help to determine an

acceptable alternative location.

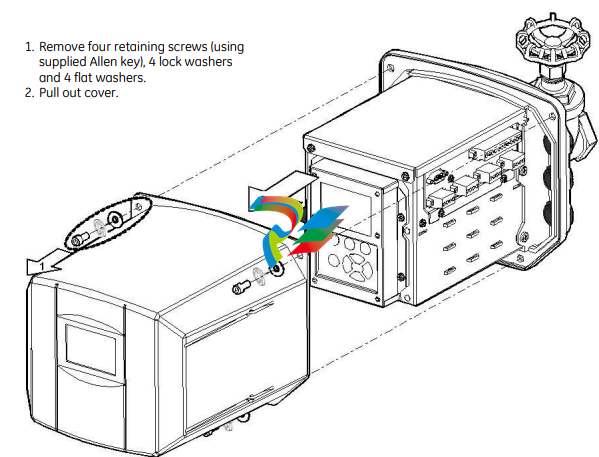

• ELECTRICAL SHOCK HAZARD! Turn off the electric power at

the fuse box or service panel before making any electrical

connections, and ensure a proper ground connection is

made before connecting line voltage. Failure to do so can

result in property damage, personal injury and/or death.
