GEMotor Protection System Integrated process, control, and protection for low voltage motors

Using this program it is possible to:

• Program or modify setpoints

• Load or save setpoints from or to a

disk

• Read actual values from the MM2

• Monitor status

• Read pre-trip data and trip record

• Display dynamic trending of actual values

• Get help on any topic

• Print the instruction manual from disk

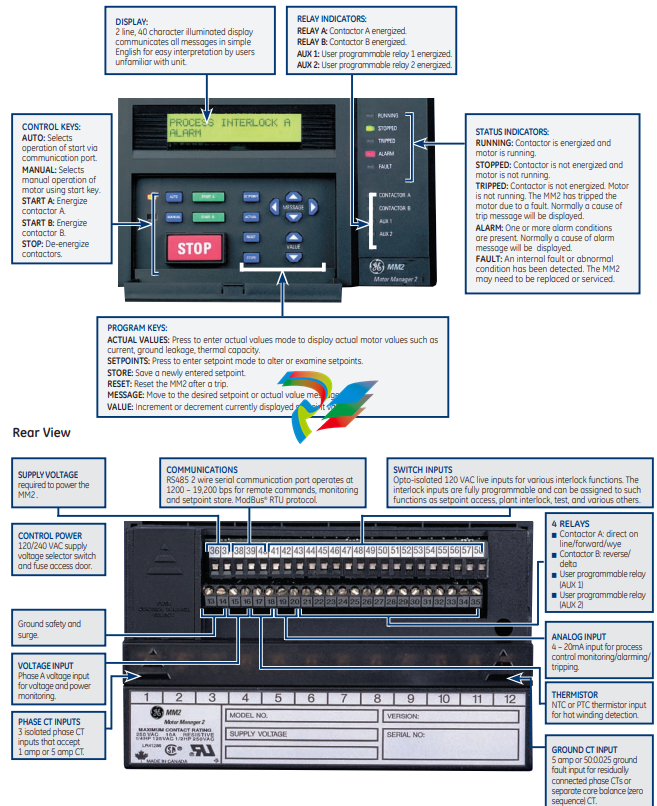

Mounting Configurations

The MM2 can be ordered as either a chassis

mount or panel mount relay.

The chassis mount comes with all of the

standard features and may be ordered

with one or both of the option packages.

Setpoints are loaded through the RS485

port using the MM2 PC Setup program.

The panel The MM2 Panel Mount (PD)

option is available when both of the option

packages have been ordered. The panel

mount MM2 is mounted through the front

panel of the MCC, providing complete local

programming and control.

Option Packages

Option package 1 increases the control and

diagnostic features available. It includes:

• Process control and process inputs

• Undervoltage auto restart

• Enhanced diagnostics including alarms,

pre-trip data, and historical statistics

about the use and performance of the

motor and drive

Option package 2 increases the protection

features and input options. It includes:

• Second contactor control, including two

more control inputs

• Single-phase VT input used to calculate

and display the kW and kWh absorbed

by the drive

• Enhanced protection including five

more protection features

• Motor winding thermistor input

EnerVistaTM Software

The EnerVista™ Suite is an industry

leading set of software programs that will

simplify every aspect of using the MM2

relay. Tools to monitor the status of your

motor, maintain your relay, and integrate

information measured by the MM2 into

HMI or SCADA monitoring systems are

available.

EnerVistaTM Launchpad

EnerVista™ Launchpad is a powerful

software package that provides users with

all of the setup and support tools needed

for configuring and maintaining GE Multilin

products. Launchpad allows configuring

devices in real-time by communicating

using serial, Ethernet , or modem

connections, or offline by creating setting

files to be sent to devices at a later time.

Included in Launchpad is a document

archiving and management system

that ensures critical documentation is

up-to-date and available when needed.

Documents made available include:

• Manuals

• Application Notes

• Guideform Specifications

• Brochures

• Wiring Diagrams

• FAQ’s

• Service Bulletins

Viewpoint Monitoring

Viewpoint Monitoring is a powerful yet

simple-to-use monitoring and data

recording package for small systems.

Viewpoint Monitoring provides a

complete HMI package with the following

functionality
