Standard Features

• compact

• highest power ability

• simple operation

• comfortable assistants, e.g. for autotuning or commissioning

• scalable to all applications

• free programmable by means of integrated IEC61131-PLC

DCS800 DC Drives

Technical data

Mains supply volt. 230...1,200 V,

+/–10%, 3~

Frequency 50...60 Hz, +/–5

Hz

Electronics supply 115...230 V,

–15% / +10%, 1~

DC Output current 20...5,200 A

Overload capability 200%

Ambient conditions

Ambient temperat. 0° ... +40° C

40° ... 55°C with

reduction

Storage temperat. –40° ... +55° C

Transport temper. –40° ... +70° C

Relative humidity 5 ... 95%, not

condensing

(max. 50% betw.

0°...5° C)

Pollution degree Class 2

Protection class IP 00

Altitude < 1,000 m height

above sea level:

nominal Current

> 1,000 m height

above sea level:

with reduction

I/O

Digital inputs: 8 standard, up to

14 optional

Digital outputs: 8 standard, up

to 12 optional

Analog inputs: 4 standard +/–

10 V; 0/2…10 V, up to 8 optional

+/ 20 mA; 0/4…20 mA

Analog outputs: 3 standard (1x

I

act) +/-10 V; 0/2…10 V, up to 7

optional –20 mA; 0/4…20 mA

PC-Tools

DriveWindow Light: free of

charge with every converter,

Standard RS232 PC-connection

DriveWindow:Real-time optical

connection

ControlBuilder DCS800:

IEC61131 programming tool

DriveSize: Converter- and motor

dimensioning

Maintenance / Diagnosis

Remote diagnosis with any

Internet-PC worldwide

• with internet browser / internet

explorer

• or with DriveWindow full drive

control via OPC

High Current Solutions

• 12-pulse up to 20,000 A, serial

and parallel

• Hard parallel and sequential

• up to 1,500 V

Protections

Speed feedback monitoring •

Temperature • Overload • Over

speed • Motor stalled • Motor

over current • Motor over voltage

• Field over current • Field over

voltage • Minimum field current

• Zero speed • Armature current

ripple • Mains over- and under

voltage

Integrated IEC 61131-PLC

• Open standard programming

tool ControlBuilder DCS800

• Support of all five IEClanguages

• Drive-specific function blocks

• Saving of program and source

in Memory Card

• Online debugging and forcing

Approvals

Adaptive Programming

pre-defined drive-specific

function blocks, e.g.

• Free process controller (PIController)

• I/O- and digital Operations

With control panel or PC-Tool, no

need for additional hardware

Speed Feedback

EMF

Analogue tacho

Encoder

2nd Encoder possible (RTAC)

Communication

Serial communication

• Ethernet • Profibus

• CANopen • DeviceNet

• ControlNet • DDCS

• Modbus

• CS31 • AF100

• Selma2

Industrial IT© enabled

DCSLink Peer-to-Peer

• up to 800 kBaud, < 2.5 ms

• Master-Follower

• Armature-fieldconverter

• Free selectable data

Brief instructions for CD and documents overview

We appreciate that you purchased an ABB DC drive

power converter and thank you for the trust you put in our

products.

This brochure was put together to make sure that you continue

to be satisfied with our product. It is intended to provide you

with a brief overview of the product's key data, EMC notes,

typical applications, start-up and trouble-shooting.

If you need more information about the product you are

provided with a CD-ROM in addition to this brief documentation. The CD-ROM is part of this document and features

the following contents:

Documentation

Our documentation is basically structured according to the

following system:

Technical catalogue (3ADW000192)

as comprehensive information to engineer complete DC

drive systems.

Hardware manual (3ADW000194)

as detailed information, with all important particulars about

the individual components, like module dimensions, electronic

boards, fans and auxiliary components.

Information for mechanical and electrical installation are

also included.

Firmware Manual (3ADW000193)

detailed information with all important issues about firmware

and setting of parameters. The manual includes information

for start-up and maintenance of the entire drive, in detailed

form.

This manual also includes Fault and Alarm codes and information for trouble shooting.

Service Manual (3ADW000195)

for maintenance and repair of the converters.

Applications

DCS800 DC Drive can include application software e.g.

cranes, winders. In such case following procedures and

assistants can be blocked or not completed. Please check

for further documentation and manuals (check parameter

4.03, 83.01).

Additional information about applications (e.g. 12-pulse)

and technical accessories (e.g. Hardware extension or

Field bus interfaces) are handled by separate manuals. See

table DCS800 Drive manuals.

System requirements to use the CD-ROM

• Operating system WINDOWS 2000, XP

• ACROBAT READER 4.0 is

sufficient (we recommend

8.0 - included on the CDROM)

In case the CD ROM does not start automatically please

double-click on Setup.exe.

Further support

In addition we offer further support, since we can only be

satisfied when you, as our customer, are satisfied with us

and our products.

Internet

On the ABB homepage under

www.abb.com/dc

you'll find abundant information for

• DC products

• service support

• the latest updates

• tools

• downloads, etc.

Please don't hesitate to visit us.

Contacts

If you require any further information, please contact your

nearest ABB Drives office or send an email to:

DC-Drives@de.abb.com

Please give us your name, your company address and

phone number. We immediately put you in contact with our

specialist.

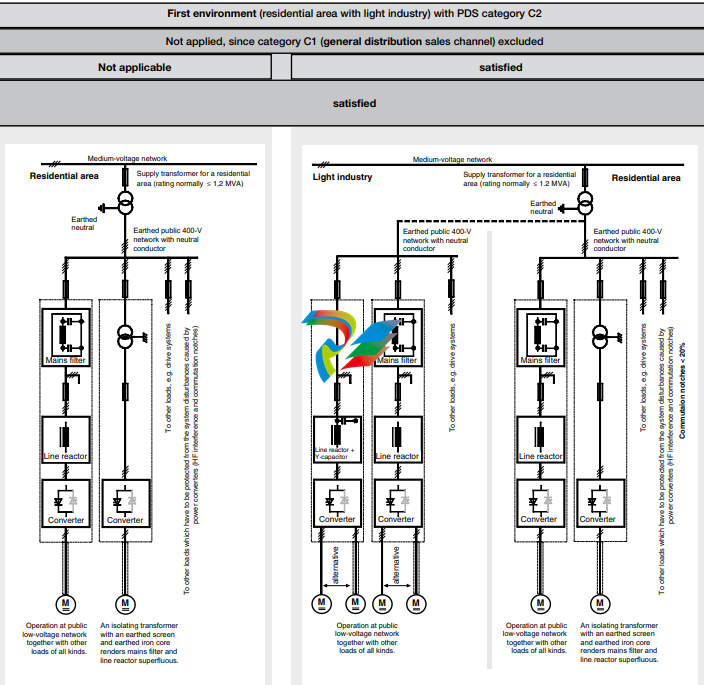

Notes on EMC

M M

Mains filter

Converter

Line reactor

Supply transformer for a residential

area (rating normally ≤ 1,2 MVA)

Earthed public 400-V

network with neutral

conductor

Medium-voltage network

Earthed

neutral

To other loads, e.g. drive systems

An isolating transformer

with an earthed screen

and earthed iron core

renders mains filter and

line reactor superfluous.

Operation at public

low-voltage network

together with other

loads of all kinds.

Residential area

To other loads which have to be protected from the system disturbances caused by

Converter

power converters (HF interference and commutation notches)

M M M M M M alternative alternative

Line reactor +

Y-capacitor

Medium-voltage network

Supply transformer for a residential

area (rating normally ≤ 1.2 MVA)

Earthed

neutral

Earthed public 400-V

network with neutral

conductor

To other loads, e.g. d

Mains filter

rive systems

Line reactor

Converter Converter

Mains filter

Line reactor

Converter Converter

An isolating transformer

with an earthed screen

and earthed iron core

renders mains filter and

line reactor superfluous.

Operation at public

low-voltage network

together with other

loads of all kinds.

To other loads, e.g. drive systems

To other loads which have to be protected from the system disturbances caused by

power converters (HF interference and commutation notches)

Earthed public 400-V

network with neutral

conductor

Operation at public

low-voltage network

together with other

loads of all kinds.

Light industry Residential area Commutaion notches < 20%

You will find further information in publication:

Technical Guide chapter:

EMC Compliant Installation and Configuration for

a Power Drive System

The paragraphs below describe selection of

the electrical components in conformity with

the EMC Guideline.

The aim of the EMC Guideline is, as the name

implies, to achieve electromagnetic compatibility with other products and systems. The

guideline ensures that the emissions from

the product concerned are so low that they

do not impair another product‘s interference

immunity.

In the context of the EMC Guideline, two

aspects must be borne in mind:

• the product‘s interference immunity

• the product‘s actual emissions

The EMC Guideline expects EMC to be taken

into account when a product is being developed;

however, EMC cannot be designed in, it can only

be quantitatively measured.

Note on EMC conformity

The conformity procedure is the responsibility of

both the power converter‘s supplier and the manufacturer of the machine or system concerned, in

proportion to their share in expanding the electrical

equipment involved.

For compliance with the protection objectives

of the German EMC Act (EMVG) in systems and

machines, the following EMC standards must

be satisfied:

Product Standard EN 61800-3

EMC standard for drive systems (PowerDriveSystem), interference immunity and emissions

in residential areas, enterprise zones with light

industry and in industrial facilities.

This standard must be complied with in the EU

for satisfying the EMC requirements for systems

and machines!

Classification

The following overview utilises the

terminology and indicates the action required in accordance with

Product Standard

EN 61800-3

For the DCS800 series, the limit

values for emitted interference

are complied with, provided the

measure indicated is carried

out. PDS of category C2 (formerly restricted distribution in

first environment) is intended to

be installed and commissioned

only by a professional (person

or organization with necessary

skills in installing and/or commissioning PDS including their

EMC aspects).

For power converters without

additional components, the following warning applies:

This is a product of category C2

under IEC 61800-3:2004. In a

domestic/residential environment

this product may cause radio

interference in which case supplementary mitigation measures

my be required.

The field supply is not depicted

in this overview diagram. For the

field current cables, the same

rules apply as for the armaturecircuit cables.

M M M M

emv_clssif_b.dsf

Converter

transformer

Case-referenced EMC analysis

alternative

Converter

transformer

with earthed

 iron core

(and earthed

screen where

appropriate)

alternative

I > 400 A

and/or

U > 500 V

Operation with separate power converter transformer. If there

are other loads at the same secondary winding, these must be

able to cope with the commutation gaps caused by the power

converter. In some cases, commutating reactors will be

required.

To other loads, e.g. drive systems

Converter Converter

Line reactor

Medium-voltage network

Industrial

zone

For emitted interference, the following apply:

EN 61000-6-3 Specialised basic standard for emissions in light industry

can be satisfied with special features (mains filters, screened

power cables) in the lower rating range *(EN 50081-1).

EN 61000-6-4 Specialised basic standard for emissions in industry

*(EN 50081-2)

For interference immunity, the following apply:

EN 61000-6-1 Specialised basic standard for interference immunity in

residential areas *(EN 50082-1)

EN 61000-6-2 Specialised basic standard for interference immunity in industry. If this standard is satisfied, then the EN 61000-6-1

standard is automatically satisfied as well *(EN 50082-2).

* The generic standards are given in brackets
