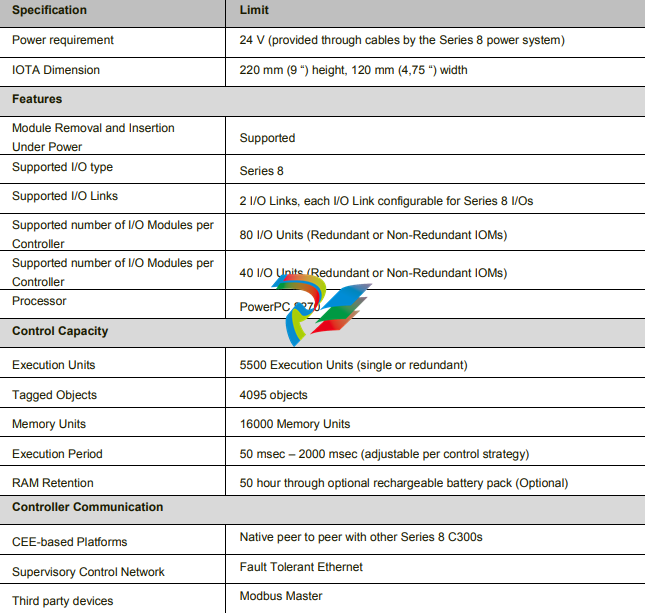

engineers can configure the Experion system and create control strategies by using the various function blocks available in
the Library. The C300 CEE based control strategies can be configured with minimum execution rates of 50 msec.
Specifications for Series 8 I/O
Specifications for Series 8 I/O modules are shown below. Note only the Coated S8 modules (model number starting with
8C) are mentioned in the detailed specifications below. However below specifications apply equally for the uncoated
modules as well. Refer section 2.2.3.2 for more details on uncoated Series 8 I/O model numbers.

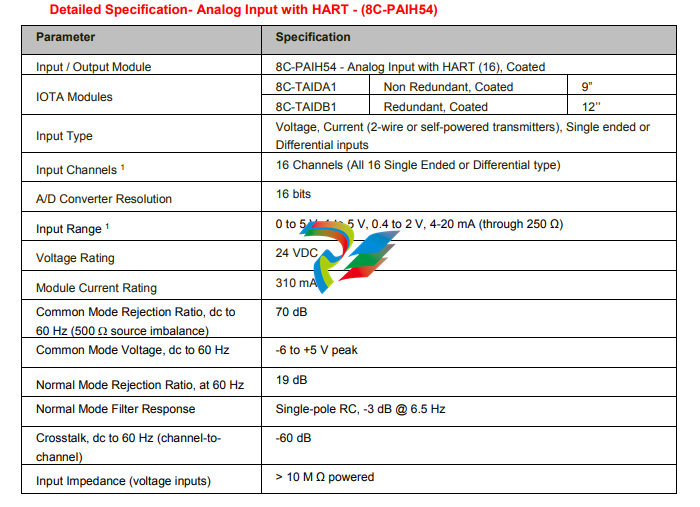

3.3.1. Analog Input with HART - Differential
Function
Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.
Notable Features
Extensive self-diagnostics
Optional redundancy
Supports either Single Ended / Differential
Inputs
HART-capable, multivariable instruments and multiple
modems for fast collection of control variables
Fast loop scan
-
