Honeywell CC-TCNT01 51308307-175

Field Terminal Assembly (FTA)

New interfaces for the Honeywell Experion® PKS C300 controller

Weidmüller’s new interfaces and pre-assembled cables allow you to wire up

I/O cards from Honeywell’s C300 controller quickly and simply in the field.

The IOTAs (Input Output Terminal Assemblies) are designed using Weidmüller

PCB connectors and terminals. This design gives you the flexibility to connect directly

to the field cabling wire to wire or with a pre-assembled cable in combination

with Weidmuller‘s FTAs. In comparison to traditional wire-to-wire cabling, the new

Weidmuller FTAs and pre-cabling solution offer a highly efficient method of wiring

between I/O modules and the field.

Concise wiring in the electrical cabinet is possible because multicore cables are

used instead of individual wires. The cable harness can be delivered with double

or single connectors and even with unterminated ends.

The housing provides easy handling as well as a safe, firm connection to the IOTA.

It also allows you to use cables with large cross-sections

High current switching capability

The isolated digital output FTAs provide a high

current switching capacity in a compact design

Honeywell C300 – Selection guide

The following selection guides enable you to quickly and easily choose the correct products according to your application needs:

STEP 1: Choose the IOTA to be used.

STEP 2: In this column you can find the number and type of cable required to make the connection.

STEP 3: Choose the most suitable interface for the application.

Example: For CC-TDIL01 it’s possible to select different options.

Solution 1: Pre-assembled cable C300-32B-320B (2 units)

Interface: 1221550000 (1 unit)

Solution 2: Pre-assembled cable C300-32B-320B (2 units)

Interface: 1222980000 (2 units)

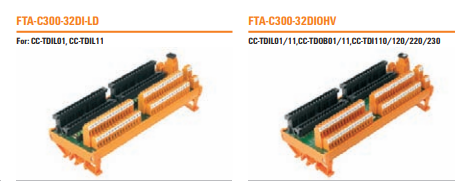

Honeywell C300 - FTA C300

Input/output passive interface for digital cards

Passive interfaces (FTA) for connecting the Honeywell

C300 digital IOTAs.

• Clearly labelled: Same connector and position on the

FTA and on the IOTA

• LED and fuse protection per channel (optional)

• Possibility of feeding the IOTA from the FTA (fuse

protected)

• Screw or tension clamp connection

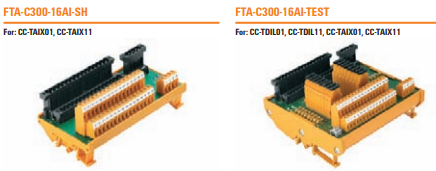

Honeywell C300 - FTA C300

Input/output passive interface for analogue

and digital cards

Passive interfaces (FTA) for connecting the Honeywell

C300 analogue IOTAs.

• Same connector and position on the FTA and on the

IOTA

• 2 units can also be used for digital IOTAs

• Disconnecting plugs and test points (2 mm in diameter)

for voltage and current measurements

• M4 connection for the shielding

Honeywell C300 - FTA C300

Isolated output interface for digital cards

Passive interfaces (FTA) for connecting the Honeywell

C300 analogue IOTAs.

• Clearly labelled: Same connector and position on the

FTA and on the IOTA

• Input/output reinforced insulation (basic between

contacts)

• Possibility of powering the IOTA from the FTA

• Screw or tension clamp connection

PLC Front Adapter (FAD)

New Front Adapters for different PLC Cards.

Easy and fast field wiring on PLC I/O cards with new front adapters.

In comparison to traditional wire-to-wire cabling, the new front adapters (FAD),

in combination with Weidmuller‘s interface range, offer a much more efficient

method for field wiring on PLCs‘ I/O cards.

Both can be connected to the standard

active or passive interfaces range or to

the relays or optos from

Weidmüller‘s MICROSERIES.

But the method with FADs is

significantly easier and faster

than with traditional

wire-to-wire cabling.

The pre-assembled cables are

available in different lengths.

Front adapter selection table for PLC (FAD) and interface modules.

Front adapters for PLCs (FAD-UNIV) are an easy solution for wiring I/O and supply signals from the PLC to the applications. Each signal is taken at a 1:1 relation to the

RSF ribbon connector (digital signals) or SUB-D (analogue signals) using adequate (PAC) pre-assembled cables (table 1).

In addition, we offer a wide range of interfaces (active and passive) for the cards of several major manufacturers that allow the use of our MICROSERIES opto modules

and relays.

Selection table:

Choose your PLC card in steps 1 to 3. In step 4 you will find the PLC (FAD) front adapters, the pre-assembled cable (PAC) and the group of interfaces that can be used

(in Table 1 or Table 2). In step 5, choose the most adequate interface for your application.
