GE Fanuc Automation VMICPCI-7806 Specifications

system.

CMOS Battery: The VMICPCI-7806 uses a holder that permits

field replacement of the CMOS battery. A header and jumper

allows the battery to be disconnected from the circuitry for

long-term storage.

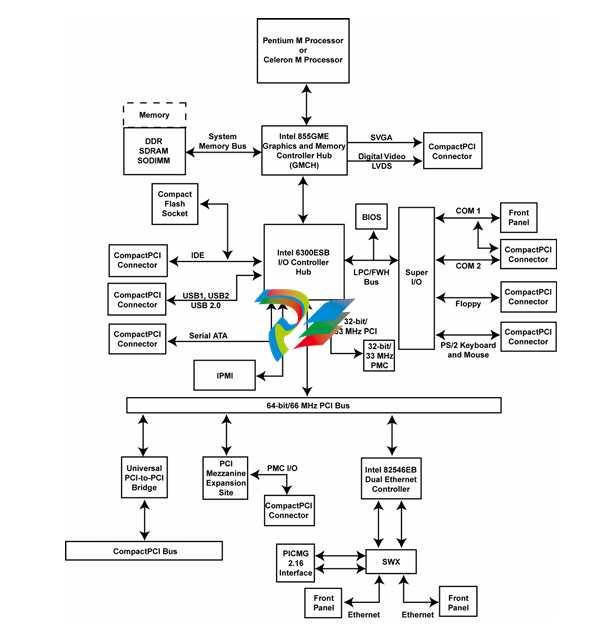

Back Panel Configuration: The VMICPCI-7806 provides support

for several peripherals using the CompactPCI backplane

connectors. These signals are routed to the CompactPCI J3 and

J5 connectors. This permits connection of the external IDE disk

drive, floppy drive, USB, SATA, video, and keyboard and mouse

via the VMIACC-0584 backplane adapter. Connection to these

signals is provided to facilitate application development.

NOTE: If the VMICPCI-7806 is not used with the VMIACC-0584

back plane adaptor, the user is responsible for either

terminating video, SATA and USB or for disabling these features

in the CMOS setup.

Operating System and Software Support

The VMICPCI-7806 supports a variety of operating systems

including Microsoft® Windows 2000. Windows XP, QNX, Linux

and VxWorks.

Physical/Environmental Specifications

Dimensions: 6U (4HP) single slot Eurocard form factor

Height

Depth

Thickness

9.2 in. (233.4mm)

6.3 in. (160mm)

0.8 in. (20.3mm

Power Requirements: Low Power/Extended Temperature option

Pentium M 1.4 GHz (1 Gbyte Memory)

+5VDC (+5. -3 percent), 1.5A (typical), 3.5A (maximum)

+3.3VDC (+5. -3 percent), 1.5A (typical), 1.8A (maximum)

+12.0VDC (+5. -3 percent), 50 mA maximum -12VDC (+5. -3 percent), 50 mA maximum

Pentium M Processor (1 Gbyte Memory)

+5VDC (+5. -3 percent), 4.5A (typical), 6.75A maximum

+3.3VDC (+5. -3 percent), 1.5A (typical), 2.0A maximum

+12.0VDC (+5. -3 percent), 50mA maximum -12VDC (+5. -3 percent), 50mA maximum

Airflow: Forced air cooling required, 400 LFM minimum,

measured at the top (outlet) of the unit

Altitude: Operating, 0 – 10.000 ft (3.000 m)

Storage, 0 – 40.000 ft (12.000 m)

Temperature:

Operating, -0° C to +50° C

Storage, -20° C to +70° C

NOTE: The Pentium M processor will throttle when its junction

temperature is between 90° C and 100° C. If application cannot

take throttling of the CPU, then the thermal profile of the system

must be verified to keep the CPU junction temperature less than

90°C.

Humidity: Operating, Relative Humidity 5% to 95%,

noncondensing Storage, Relative Humidity 5% to 95%,

noncondensing

Vibration: 6 Gs RMS (20 - 2000 Hz) random, .0185 G2 per Hz

spectrum

Shock: 10 Gs, 16 ms half sine, 6 axis, 10 pulses each

MTBF: Total hours 246.953

Trademarks

Intel and Pentium are registered trademarks of Intel

Corporation. Microsoft and Windows are registered trademarks

of Microsoft Corporation. CompactPCI and PICMG are registered

trademarks of PCI Industrial Computer Manufacturer’s Group.

Other registered trademarks are the property of their respective

owners.
