EMERSONOvation®-based Digital Rod Position Indication Upgrade

Ovation®-based Digital Rod

Position Indication Upgrade

Background

Westinghouse’s digital rod position indication

(DRPI) display system has been the backbone

of the DRPI architecture for over 40 years.

Since the original design, advancements in

technology have created the opportunity for

the addition of helpful maintenance utilities,

outage tools, system error detection and data

logging.

The Ovation®

-based DRPI upgrade display

system accomplishes the following functions:

• Maintains the function of the original

design

• Utilizes new advanced algorithm to

calculate rod position that minimizes some

critical alarm conditions

• Replaces original display cabinet with two

large LCDs to display rod position data from

the Ovation highway

• Provides alarm outputs for deviations

between measured rod positions within the

same bank

• Generates system alarm when an error

(detector shorts, loss or open circuit, gray

code errors, half-accuracy or power supply

failure) is detected

Description

The Ovation-based DRPI upgrade replaces

the electronics portion of the original DRPI

system display cabinet in Westinghouse plants.

It communicates with both data cabinets to

provide the most up-to-date rod position and

alarm information to the control room, Ovation

highway and plant computer.

This upgrade will include two standard Ovationbased cabinets and two large LCD displays with

computer interfaces to the Ovation network.

The first standard Ovation cabinet is the DRPI

Ovation cabinet, which replaces the functionality

of the original DRPI display cabinet. The second

standard Ovation cabinet is the Ovation server cabinet,

which provides the Ovation support architecture for

the DRPI Ovation system along with future upgrades.

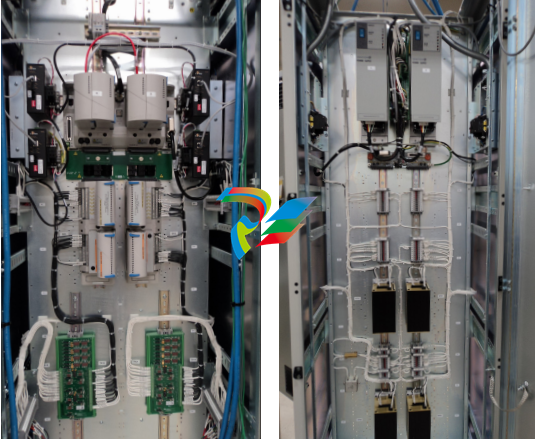

The DRPI Ovation cabinet includes new cabling that

connects to the existing DRPI field cabling located in

the control room. This cabinet consists of two data

interface cards, Ovation controllers and I/O hardware,

and power supplies. Rod position information from

both data cabinets is transferred to the Ovation

controller through the data interface card and Ovation

I/O modules.

Benefits

The benefits of this upgrade include:

• Reliable indication of rod position

• New position algorithms to improve rod position

• Hot swappable redundant DRPI power supplies

• Ovation support architecture, which reduces cost

for future Ovation upgrades

• Automatic error logging
