FUJICommunication Unit SpecificationDeviceNet

Running normally -

Red

During initialization or a

recoverable error occurrence

• Wait until there is an automatic

recovery from the error.

• Turn the power on again.

Initialization error

Take corrective measures according to the

error messages displayed on the V series

or the network status (see page 15).

Color Status Contents Solution

- Initialization error or network error Take corrective measures according to the

error messages displayed on the V series

Green or the module status (see page 15). Network error

Running normally -

Red

Network error Take corrective measures according to the

error messages displayed on the V series

or the module status (see page 15).

Node address duplicated or bus

Installation

Mounting Procedure

1. Turn the V series off.

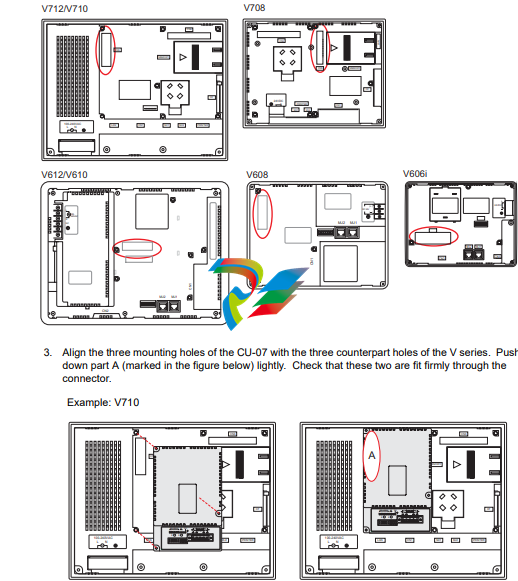

2. Remove the connector cover sticker (circled in the figure below) for the communication interface

unit from the back of the V series

CAUTION Before attempting to install the CU-07 unit, turn off the power to the V series.

1. Turn the V series off. 2. Remove the connector cover sticker (circled in the figure below) for the communication interface unit from the back of the V series
