MEGGITTVM600Mk2/ VM600 ABE040 and ABE042 system racks

From:MEGGITT | Author:LIAO | Time :2025-08-20 | 672 Browse: | 🔊 Click to read aloud ❚❚ | Share:

rear panels for inputs to the VM600Mk2/VM600 RPS6U rack power

supply or supplies.

See also Mechanical drawings – front and rear views on page 6.

Notes

In general, associated input/output modules (cards) are required

while relay modules (cards) are optional.

For safety reasons, any VM600Mk2/VM600 rack slot not populated

by a module (card) must be covered by a blank panel(s).

Rack slot number coding : For modules (cards) installed in the rear of an ABE04x rack, an

electronic keying mechanism known as slot number coding is used

to help ensure that the module (card) is installed in the correct slot,

as defined by the configuration (that is, by the VibroSight® or

VM600 MPSx software).

For ABE04x racks, the rack’s slot numbers are fixed (hard-wired) and

slot number coding requires that a module’s slot number is set to

match the rack slot (module (card) position) where it is installed.

Slot number coding range : 3 to 14

Slot number coding defaults : Fixed (hard-wired) as follows:

• Slot 03 = 3 (0011 binary)

• Slot 04 = 4 (0100 binary)

• Slot 13 = 13 (1101 binary)

• Slot 14 = 14 (1110 binary).

Galvanic separation : Galvanic separation units (GSIxxx) are available for accelerometer

and proximity systems mounted in explosive atmospheres. These

units cannot be supplied by the rack and require an external power

supply. They must be mounted outside the rack in a remote housing

or in a cabinet

Power supply

VM600Mk2/VM600 RPS6U rack power

supplies

: A VM600Mk2/VM600 ABE04x system rack can have either one or

two RPS6U rack power supplies installed, as follows:

• 1 × RPS6U power supply (330 W) supports the power requirements

for a full rack of modules (cards) in applications with operating

temperatures up to 50°C (122°F).

• 2 × RPS6U power supplies (330 W) – operating redundantly –

supports the power requirements for a full rack of modules (cards)

in applications with operating temperatures up to 50°C (122°F).

With this rack power supply redundancy, if one RPS6U fails, the

other will provide 100% of the rack’s power requirements so that the

rack will continue to operate.

Note: This is known as a redundant RPS6U rack power supply

configuration.

• 2 × RPS6U power supplies (330 W) – operating non-redundantly –

supports the power requirements for a full rack of modules (cards)

in applications with operating temperatures above 50°C (122°F),

where RPS6U output power derating is required.

Note: Even though two RPS6U rack power supplies are installed in

the rack, this is not a redundant RPS6U rack power supply

configuration.

Refer to the VM600Mk2/VM600 RPS6U rack power supplies

data sheet and a VM600Mk2/VM600 machinery protection system

(MPS) hardware manual for further information.

Power supply check relay

Maximum switching voltage : ±30 VRMS / ±42.4 VAC(PEAK) or 60 VDC

Maximum switching current : 4 AAC, 3 ADC

Environmental

According to IEC 60068-2 recommendations

Temperature

• Operating : 0 to 70°C (32 to 158°F)

• Storage : −40 to 85°C (−40 to 185°F)

Humidity : 0 to 90%, non-condensing

Vibration : 10 to 55 Hz, 0.35 mm peak, 6 hours in each direction

Shock : 15 g peak, 11 ms, half-sine pulse

Indoor use : Limited to indoor use only

Approvals

Conformity : European Union (EU) declaration of conformity (CE marking).

CCSAUS certificate of compliance.

EAC marking, Eurasian Customs Union (EACU) certificate/

declaration of conformity.

Electromagnetic compatibility : IEC/EN 61000-6-2 and IEC/EN 61000-6-4.

TR CU 020/2011.

Electrical safety : IEC/EN 61010-1.

TR CU 004/2011.

Vibration : IEC 60255-21-1 (Class 2)

Environmental management : RoHS compliant

Russian federal agency for technical

regulation and metrology (Rosstandart)

: Pattern approval certificate OC.C.28.004.A N° 60224

Physical

Dimensions : See Mechanical drawings starting on page 4

Weight : 6.5 kg (14.3 lb) approx.

without RPS6U power supplies and modules (cards)

S

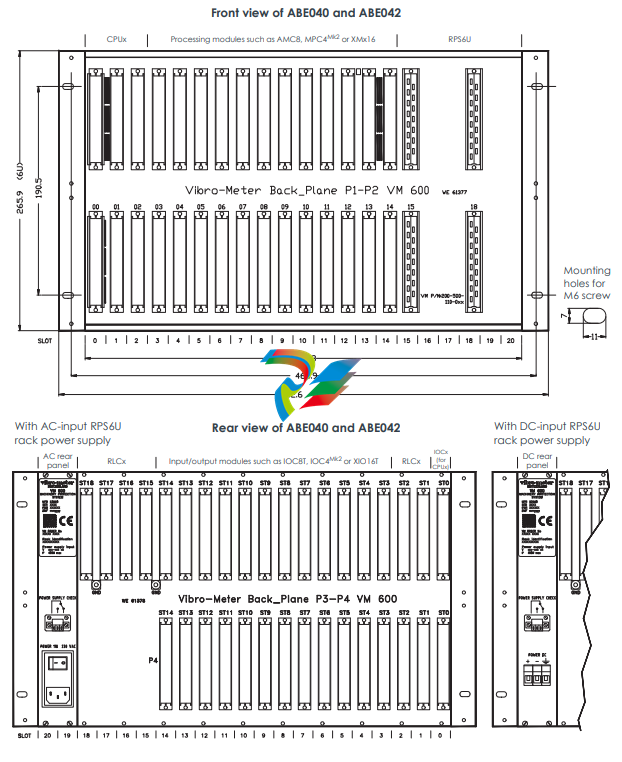

MECHANICAL DRAWINGS – FRONT AND REAR VIEWS

Type Designation Ordering number (PNR)

ABE040 Different versions of the VM600Mk2 ABE040 system rack:

– Standard version 204-040-100-016

ABE040 Different versions of the VM600Mk2/VM600 ABE040 system rack:

– Standard version 204-040-100-015

– Varnished version, with a conformal coating for additional

environmental protection 204-040-100-015L

– Separate circuits version, in accordance with the IEC 60255-5 standard 204-040-100-115

– CCSAUS version, in accordance with the IEC 61010-1 standard 204-040-100-214

ABE042 Different versions of the VM600Mk2/VM600 ABE042 system rack:

– Version with mounting brackets positioned at the rear of the rack 204-042-100-01h

– Varnished version, with a conformal coating for additional

environmental protection 204-042-100-01hL

Different blank panel kits for the front of a VM600Mk2 ABE04x system rack:

– 1 × slot wide / 4 HP (TE) 200-505-011-012

– 3 × slots wide / 12 HP (TE) 200-505-018-012

Different blank panel kits for the rear of a VM600Mk2 ABE04x system rack:

– 1 × slot wide / 4 HP (TE) 200-505-011-012

Different blank panel kits for the front of a VM600 ABE04x system rack:
