Kongsberg MP 5810 Operator Station Computer (HP RP5 Model 5810)

Kongsberg MP 5810 Operator Station Computer (HP RP5 Model 5810)

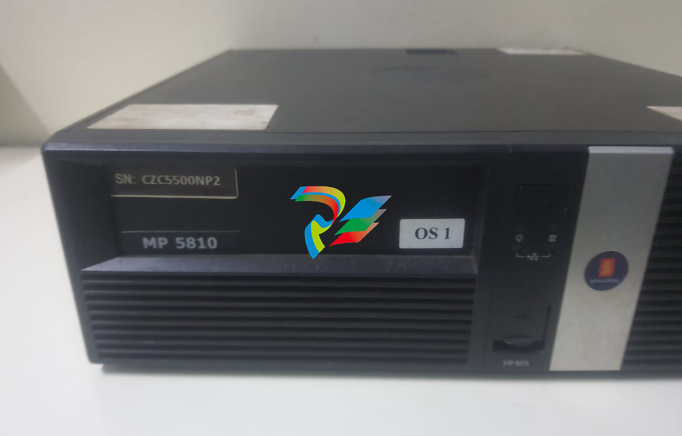

Kongsberg MP 5810 Operator Station, a version of the reliable HP RP5 Retail System (Model 5810), engineered by Kongsberg to withstand harsh maritime environments.

The MP 5810 functions as a process control computer, serving as the core of an operator station for systems such as dynamic positioning (DP), vessel automation, and hydrographic survey workstations.

Technical Specifications

Model: Kongsberg MP 5810 (based on HP RP5 Model 5810)

HP Product No.: E5E31EP#ABN

Function: Operator Station / Hydrographic Work Station (HWS) / Remote Controller Unit

Power Input: 100-240 VAC, 50-60 Hz

Connectivity: Dual Ethernet LAN for network redundancy, serial, PROFIBUS, CAN bus.

Applications & Compatibility

Dynamic positioning (DP), vessel automation, and hydrographic survey applications.

Use in alarm and monitoring systems and subsea survey equipment control.

Replacing a failed operator station computer in a Kongsberg marine system.

The Kongsberg MP 5810 is a specialized Operator Station (OS) computer based on the HP RP5 Retail System (Model 5810).1 It serves as the primary processing hub for Human-Machine Interfaces (HMI) in Kongsberg maritime automation and positioning systems.2

While its predecessor, the MP7900. was based on an office-grade chassis, the MP 5810 utilizes a "retail-hardened" chassis designed for 24/7 high-reliability operation, making it better suited for the continuous demands of a ship's engine control room or bridge.

Technical Specifications

The MP 5810 is typically configured with industrial-grade components to ensure stability across the K-Line product family.3

Feature    Specification (Standard Kongsberg Config)

Kongsberg P/N    379524 (Commonly referenced)

HP Base Model    HP RP5 Retail System, Model 5810 (TPC-F056-SF)

Processor    Intel Core i3-4150 (3.5 GHz) or i5-4570S (Up to 3.6 GHz)

Memory    4GB or 8GB DDR3L SDRAM (Expandable to 32GB)

Storage    128GB or 256GB Solid State Drive (SSD)

Operating System    Windows 7 Professional or Windows 10 IoT Enterprise

Power Supply    240W, 90% Efficiency, Active PFC (100–240 VAC)

Connectivity & Port Layout

The MP 5810 is notable for its high number of serial and powered USB ports, which are essential for connecting marine peripherals like trackballs, NMEA sensors, and dedicated control panels.

Network: Dual Gigabit Ethernet ports (Intel I217LM) for redundant Net A and Net B system architectures.4

Video Out: 1x VGA and 1x DisplayPort 1.2 (supports dual independent monitors).

Serial Ports: Up to 3x RS-232 COM ports (often power-configurable to 5V/12V for specialized marine hardware).

Specialized I/O: Can be fitted with expansion cards for CAN bus or Profibus communication depending on the vessel's specific configuration.5

System Applications

You will find the MP 5810 acting as the "brain" for the following systems:

K-Chief 600 / 700: Alarm Monitoring & Control System (AMS).

K-Pos: Dynamic Positioning OS.

K-Bridge / SIS: Hydrographic Work Stations and Navigation Integrators.6

AutoChief: Main Engine Remote Control System.

Maintenance Tips

SSD Reliability: Because these units use SSDs, they are much more resistant to ship vibration than the older MP7900 units. However, if the system becomes sluggish, check the SSD health as they have a finite write-cycle life in data-heavy automation logs.

CMOS Battery: If the computer fails to boot or loses the system time (which can desync it from the Redundant Net), the CR2032 coin cell battery on the motherboard likely needs replacement.

Dust Accumulation: Despite its "hardened" design, the oversized cooling system can pull in dust from the console. Annual internal cleaning is recommended to prevent CPU throttling.
