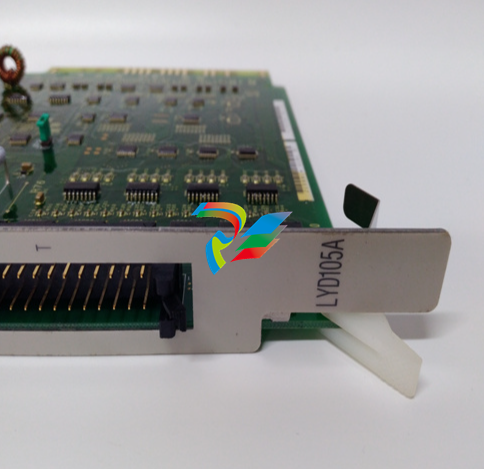

​HITACHI LYD105A Digital output module

The Hitachi LYD105A is a high-performance Digital Output Module, commonly used in Hitachi's industrial programmable logic controller (PLC) systems or distributed control systems (DCS).

It is mainly responsible for converting the logic signals of the control system into electrical signals that drive industrial field equipment such as solenoid valves, relays, indicator lights, etc.

The following is a detailed introduction, application fields, advantages and features, as well as technical specifications of this product

1. Product Introduction

The LYD105A is an important component of Hitachi's industrial automation product line and is usually installed on control racks as an I/O module.

It adopts a ** Source Type ** output design and is capable of providing a stable 24V DC output signal. It is a core component for realizing logic control output in industrial environments.

2. Application fields

Due to its high reliability and industrial-grade design, the LYD105A is widely used in the automation industry where stability is highly demanded.

Power industry: It is used for the switch control of auxiliary equipment in power plant control systems (DCS).

Petrochemical industry: Driving actuators (such as electromagnetic heads of pneumatic valves) in production line automation.

Manufacturing industry: Logic output for automatic assembly lines, CNC machine tools and packaging machinery.

Metallurgy and Mining: Remote control of conveyor belts and pumping stations in harsh environments.

Water treatment: Program control of pumps and valves in sewage treatment equipment.

3. Advantages and Characteristics

High reliability and redundancy support: Supports operation under redundant configuration to ensure that a single point of failure will not cause the entire system to shut down.

Perfect protection mechanism: It is equipped with overcurrent Limit protection and overheating shutdown function to prevent the module from being short-circuited and burned out by external loads.

Low-power design: The module itself has an extremely small static current and generates low heat, making it suitable for installation in dense control cabinets.

Easy to diagnose: The front panel is equipped with LED indicator lights on the logic side, which can visually display the switch status of each channel, facilitating on-site maintenance and troubleshooting.

Wide temperature adaptability: It can operate stably in an environment ranging from -20° C to 70° C (some industrial standards can reach even higher).

4. Technical Specifications

The following is the core technical parameter table of LYD105A:

Parameter items

Output 8 Points (8 Points

Output Type Source Type Output

Rated operating voltage $24text{V DC}$(range: $15text{V}$to $30text{V}$)

The maximum output current for A single channel is $0.5text{A}$, and the total for the entire module is $4.0text{A}$

Conduction voltage drop $0.3 le text {V DC} $(in $25 ^ circ text {C} $)

The response time on/off is both $le 0.3text{ms}$

Maximum leakage current $5text{μA}$(in the open state)

Short-circuit protection is equipped with (independent thermal shutdown for each channel)

The physical dimensions are approximately $2.4text{cm} times 18.5text{cm} times 31.4text{cm}$

The weight is approximately $0.25text{kg}$
