ABBPCS 8000 AC Excitation AC Excitation for hydro pump energy storage plants

Introduction and Main Technical Features

Pumped Hydro Energy Storage Plants have an essential role in electric power grids. They provide spinning reserve and permit the

operation of base load power plants at their optimal efficiency by consuming power during low load times to pump up the water to

the reservoir at higher altitudes.

Customer’s challenge

A drawback of conventional Pumped Hydro plants with pumpturbines is the operation at constant speed when the motorgenerator is a synchronous machine. This results in a lower

than necessary overall efficiency because the design allows for

one optimized operation point only. The reasons are: Optimal

speed for pumping is higher than optimal speed for turbining

and speed adjustment to adapt to varying heads is not possible.

An additional drawback is that power/frequency control is not

possible in the pumping mode. The possibility of speed

adjustment eliminates those drawbacks.

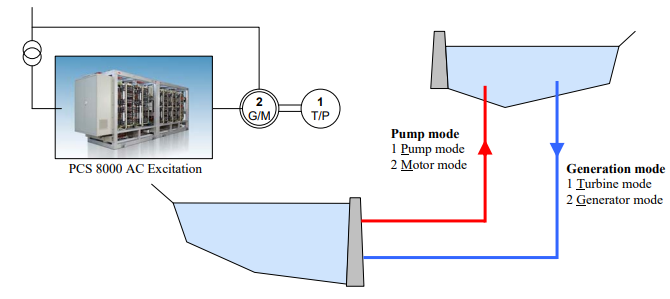

Solution

Using a wound rotor induction machine for the motorgenerator and controlling the slip frequency of the rotor with a

power electronics converter makes the necessary speed

variation possible. Operation at maximum hydraulic efficiency

is enabled in both, turbining and pumping mode, over a larger

range of head variation and power/frequency control is possible

in the pumping mode as well. Since the power needed in the

rotor is only a fraction of the machine rating (roughly

proportional to the slip), the rating of the converter and

therefore its cost as well as its space demand is minimized.

Because of the semiconductor loss optimizing design of the

PCS 8000 it is the ideal converter for this kind of application.

ABB

ABB Switzerland Ltd

Advanced Power Electronics

CH - 5300 Turgi, Switzerland

Tel.: +41 58 589 32 35

Fax: +41 58 589 26 18

E-Mail: pes@ch.abb.com

Internet: www.abb.com/powerelectronics

Benefits

9 Operation at optimal efficiency in turbine and pump

mode

9 Speed adoption to varying heads for additional

efficiency improvement

9 Enabling power/frequency control during pumping

operation

Reliability runs in the family

The PCS 8000 AC Excitation is a further development of

ABB’s PCS 6000 family which are used for a wide range of

applications. The standardization of these power electronic

modules delivers substantial advantages in terms of cost and

quality.

MV converter

PCS 8000 converter units are based on three-level IGCT phase

modules. The IGCT (Integrated Gate Commutated Thyristor) is

the state-of-the-art semiconductor element for this power

range. The converter units are connected by a medium voltage

DC link (intermediate circuit). The converter modules are

water cooled with a virtually maintenance free closed loop

water system equipped with redundant circulating pumps.

Key facts

Application: AC Excitation

Type: PCS 8000 AC Excitation

Installation: Indoor or Container

Nominal output power: project specific

Nominal frequency: 50 / 60 Hz

Nominal voltage: project specific

Ambient temperatures: -25 … 40 °C
