A-B 1769-L30ERMK CompactLogix 5370 L3 Controllers

See the controller installation instructions for more information about

using these utilities to load firmware. If you load firmware via an

EtherNet/IP connection, browse through the Ethernet port, across the

virtual backplane, and select the 1769-L35E controller.

Loading 1769-SDN Firmware

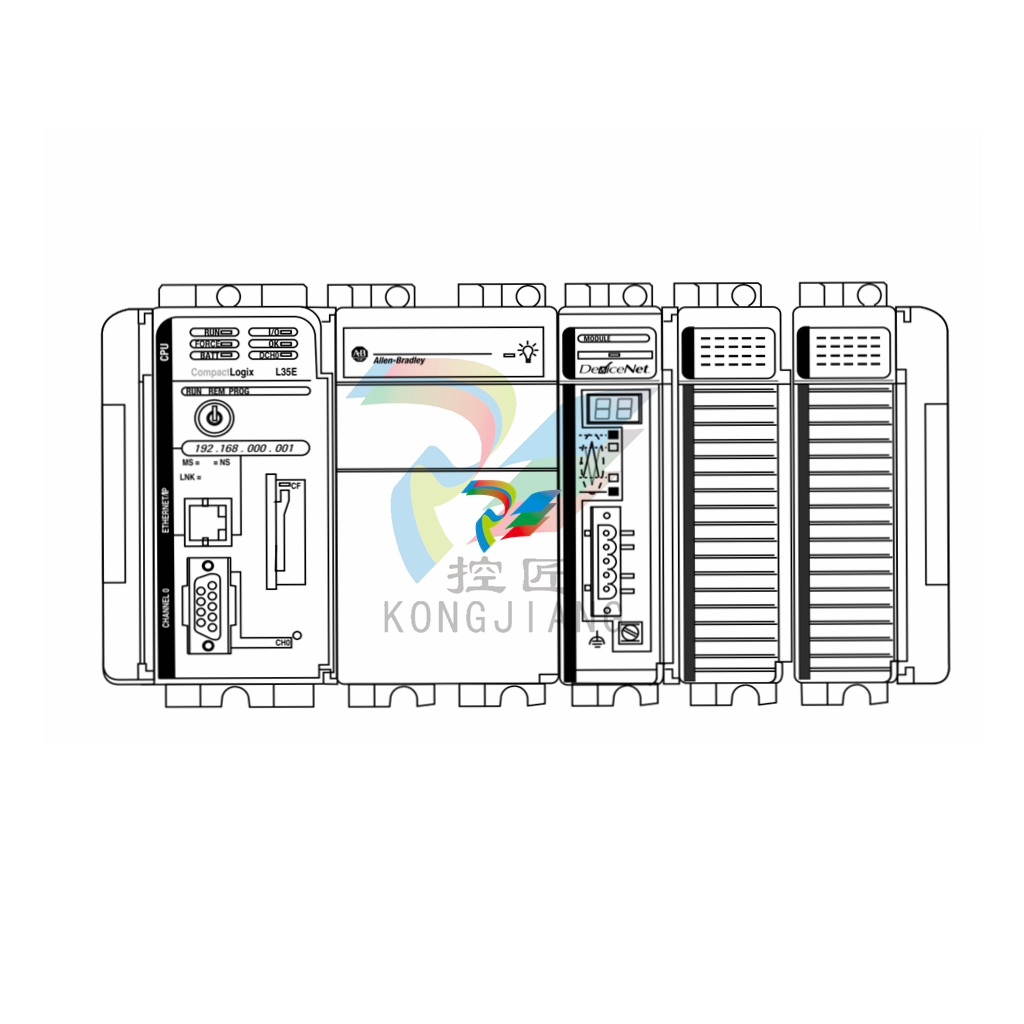

If you are using a 1769-L35E controller and a 1769-SDN scanner for

DeviceNet communications and want to take advantage of the new

explicit messaging feature, you must also upgrade the scanner’s

firmware to revision 2.2 or later. The updated firmware is available

with RSLogix 5000 software or you can download it from the support

website. Use the ControlFlash utility (as described above) to load the firmware.

You must use a DeviceNet connection to update the 1769-SDN

firmware to revision 2.2. After the firmware is updated to revision 2.2,

subsequent updates to the 1769-SDN firmware can be initiated via a

controller backplane connection.

Loading Controller Firmware

The controller ships without working firmware. You must download

the current firmware before you can use the controller. Initially, the

1769-L35E firmware is only available on the support website. The

1769-L20, -L30 firmware is available on the website and on the

RSLogix 5000 CD. To load firmware, you can use:

• ControlFlash utility that ships with RSLogix 5000 programming software.

• AutoFlash that launches through RSLogix 5000 software when you try to open or create a project and the controller does not have the current firmware.

• a 1784-CF64 CompactFlash card with valid memory already loaded (only supported by the 1769-L35E controller).

Analog I/O Modules

Choose analog, thermocouple, or RTD modules for these features:

• Individually configurable channels

• Ability to enable and disable channels individually

• Onboard scaling

• Auto calibration of inputs

• Online configuration

• Selectable input filters

• Over-range and under-range detection and indication

• Selectable response to a broken input sensor

• Selectable power source

• Input modules offer both single-ended or differential inputs

• Ability to direct output device operation during an abnormal condition

• High accuracy ratings

The data can be configured on board each module as:

• Engineering Units in volts or milliamps.

• Scaled-for-PID.

• Percent of range.

• Raw/Proportional Data for maximum resolution.

Each 1769 I/O module has a distance rating.

In 1769 systems, the distance rating is the number of modules between the specific module and the 1769 power supply.

In a 1768 system, the distance rating is the number of modules between the specific I/O module and the 1768 controller.

ATTENTION:

•Before installing, configuring, operating or maintaining this product, read this

document and the documents listed in the Additional Resources section for

installing, configuring, or operating equipment. Users should familiarize

themselves with installation and wiring instructions in addition to requirements

of all applicable codes, laws, and standards.

• Installation, adjustments, putting into service, use, assembly, disassembly, and

maintenance shall be carried out by suitably trained personnel in accordance with

applicable code of practice. In case of malfunction or damage, no attempts at repair

should be made. The module should be returned to the manufacturer for repair. Do not

dismantle the module.

• This equipment is certified for use only within the surrounding air temperature range

of 0…60 °C (32…140 °F). The equipment must not be used outside of this range.

• Solid state equipment has operational characteristics differing from those of

electromechanical equipment. Safety Guidelines for the Application, Installation and

Maintenance of Solid State Controls, publication SGI-1.1, available from your local

Rockwell Automation sales office or online at

http:/www.rockwellautomation.com/literature describes some important differences

between solid state equipment and hard-wired electromechanical devices.
