injury.
Caution icon indicates important information or warning related to the concept
discussed in the text. It might indicate the presence of a hazard which could
result in corruption of software or damage to equipment/property.
Information icon alerts the reader to pertinent facts and conditions.
Tip icon indicates advice on, for example, how to design your project or how to
use a certain function
Although Warning hazards are related to personal injury, and Caution hazards are
associated with equipment or property damage, it should be understood that
operation of damaged equipment could, under certain operational conditions, result
in degraded process performance leading to personal injury or death. Therefore,
fully comply with all Warning and Caution notices.
Terminology
A complete and comprehensive list of terms is included in System 800xA System
Guide Functional Description (3BSE038018*). The listing includes terms and
definitions that apply to the 800xA System where the usage is different from
commonly accepted industry standard definitions and definitions given in standard
dictionaries such as Webster’s Dictionary of Computer Terms.
Applicable Specifications
EUROPEAN UNION DIRECTIVE COMPLIANCE
Units mentioned in this document for which the product is marked with the
logo comply with the EMC Directive EMCD 2004/108/EC and the Low
Voltage Directive LVD 2006/95/EC. See Appendix C, Directive Considerations.
UL LISTING
Units mentioned in this document are UL listed if the product is marked with the UL
logo.
indicates UL approval for the USA, and for both Canada and
the USA. The logo indicates UL approval for Canada only.
The applied standard is UL508, Industrial Control Equipment. Units approved for
use at hazardous locations also comply with the standard UL60079-15. To fulfill the
UL requirements for hazardous locations, the instructions in Appendix D, Standards
must be followed.
TÜV Approval
Units mentioned in this document are TÜV qualified for IEC 61508 SIL2 or SIL3 if
the product is marked with the TÜV logo.
Released User Manuals and Release Notes
A complete list of all User Manuals and Release Notes applicable to System 800xA
is provided in System 800xA Released User Manuals and Release Notes
(3BUA000263*).
System 800xA Released User Manuals and Release Notes (3BUA000263*) is
updated each time a document is updated or a new document is released. It is in pdf
format and is provided in the following ways:
• Included on the documentation media provided with the system and published
to ABB SolutionsBank when released as part of a major or minor release,
Service Pack, Feature Pack, or System Revision.
• Published to ABB SolutionsBank when a User Manual or Release Note is
updated in between any of the release cycles listed in the first bullet.
A product bulletin is published each time System 800xA Released User Manuals
and Release Notes (3BUA000263*) is updated and published to ABB
SolutionsBank.
Section 1 Overview
Introduction
AC 800M can be defined as a hardware platform consisting of individual hardware
units. AC 800M hardware platform can be programmed to perform multiple
functions, depending on the specific unit configuration and operating system
selected.
The hardware units which form the AC 800M Controller are:
• Processor units (including base plates)
• Communication interfaces for different protocols (including base plates)
• Power supply units, providing various power output levels
• Battery back-up unit
• For High Integrity systems control applications with AC 800M HI, special
module SM810/SM811, is needed
Once configured, the AC 800M hardware platform effectively becomes
the AC 800M Controller.
Equipped with the specified Control Software, the AC 800M Controller can be used
for all kinds of process and industrial automation applications. With Control
Software, the controller can act either as a stand alone process controller or as a
controller, performing local control tasks, in a control network consisting of many
interconnected computers.
The AC 800M Controller is delivered without firmware. To provide the controller
with Control Software, it will first be necessary to load the firmware and create
the application separately by using the Control Builder interface.

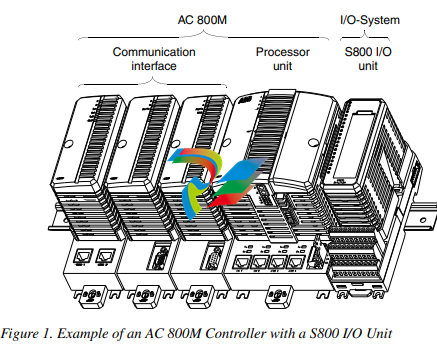

The AC 800M Controller consists of a selection of units mounted on horizontal DIN
rails, as shown in Figure 1 on page 18, which can, if required, be housed within
an enclosure.
The majority of units consist of a base mounting plate and a removable cover, which
are attached to each other by means of screws. The base plate, which is always
mounted on the DIN rail, carries the majority of the connections to the processor,
power supplies and communication interfaces, as well as to the external buses and
systems

The processor unit used for the AC 800M HI Controller is physically identical to
other AC 800M controllers, simplifying service and spares support and providing
