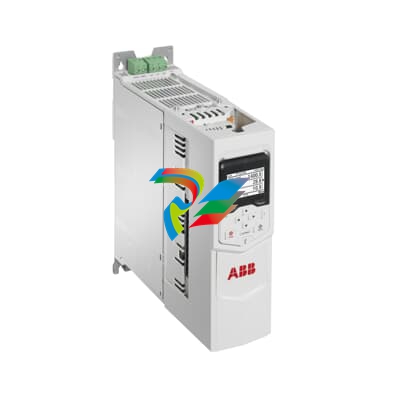

ACS880-M04-014A-2
❤ Add to collection

ACS880-M04-014A-2

￥48520.00
￥38520.00
￥38520.00
￥38520.00
Weight：20.000KG
Description

General Information

Global Commercial Alias:
ACS880-M04-014A-2
Product ID:
3AXD50000036390
ABB Type Designation:
ACS880-M04-014A-2
Catalog Description:
LV AC machinery drive module, IEC: Pn 3 kW, 14 A, 230 V, UL: Pld 3 Hp, 13 A, 230 V (ACS880-M04-014A-2)


Ordering

Country of Origin:
Finland (FI)
Customs Tariff Number:
85044085
HS Code:
850440-- Electrical    transformers,    static    converters    (for    example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS880-M04-014A-2 PN: 3.0 kW, IN: 14.0 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
5.6 kg
12.3 lb
Product Net Depth / Length:
234 mm
9.21 in
Product Net Height:
476 mm
18.74 in
Product Net Width:
100 mm
3.94 in
Package Level 1 Depth / Length:
450 mm
17.72 in
Package Level 1 Height:
360 mm
14.17 in
Package Level 1 Width:
200 mm
7.87 in
Package Level 1 Units:
1 carton

Technical

Number of Phases:
3
Degree of Protection:
IP20
Enclosure Type NEMA:
Open Type
Altitude:
1000 m
Operating Humidity (RHamb):
5 ... 95
Power Factor:
0.98
Sound dB (A):
39 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):
47.5 ... 63 Hz
Frame Size:
R2
Input Voltage (Uin):
200 ... 240 V
Mounting Type:
Module
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 3
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 0
Includes:
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 5
Output Current, Heavy-Duty Use (IHD):
11 A
Output Current, Light-Overload Use (ILD):
13 A
Output Current, Normal Use (In):
14 A
Output Power, Heavy-Duty Use (PHD):
2.2 kW
Output Power, Light-Overload Use (PLD):
3 kW
Output Power, Normal Use (Pn):
3 kW
Apparent Power Output:
5.6 kV·A
Efficiency Level:
IE2
Standby Loss:
30 W
Complete Drive Module Efficiency (61800-9-2):
Operating Point
Frequency / Current		Absolute
Loss		EfficiencyRelative
Loss
0/25 %
88 W
77.1 %
1.6 %
0/50 %
101 W
84.9 %
1.8 %
0/100 %
135 W
88.7 %
2.4 %
50/25 %
92 W
87.0 %
1.6 %
50/50 %
109 W
91.6 %
1.9 %
50/100 %
151 W
93.6 %
2.7 %
90/50 %
118 W
94.8 %
2.1 %
90/100 %
172 W
95.8 %
3.1 %
Temperature Rating:
Maximum 40 °C

Technical UL

Output Current, Heavy-Duty Use (UL):
11 A
Output Current, Light-Overload Use (UL):
13 A
Output Power, Heavy-Duty Use (UL):
3 Hp
Output Power, Light-Overload Use (UL):
3 Hp

Classifications

UNSPSC:
39122001

Environmental

SCIP:
09742e09-6081-4a7d-97e4-a8051c2bea68 Finland (FI)
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information

Product Name:
Frequency converter
