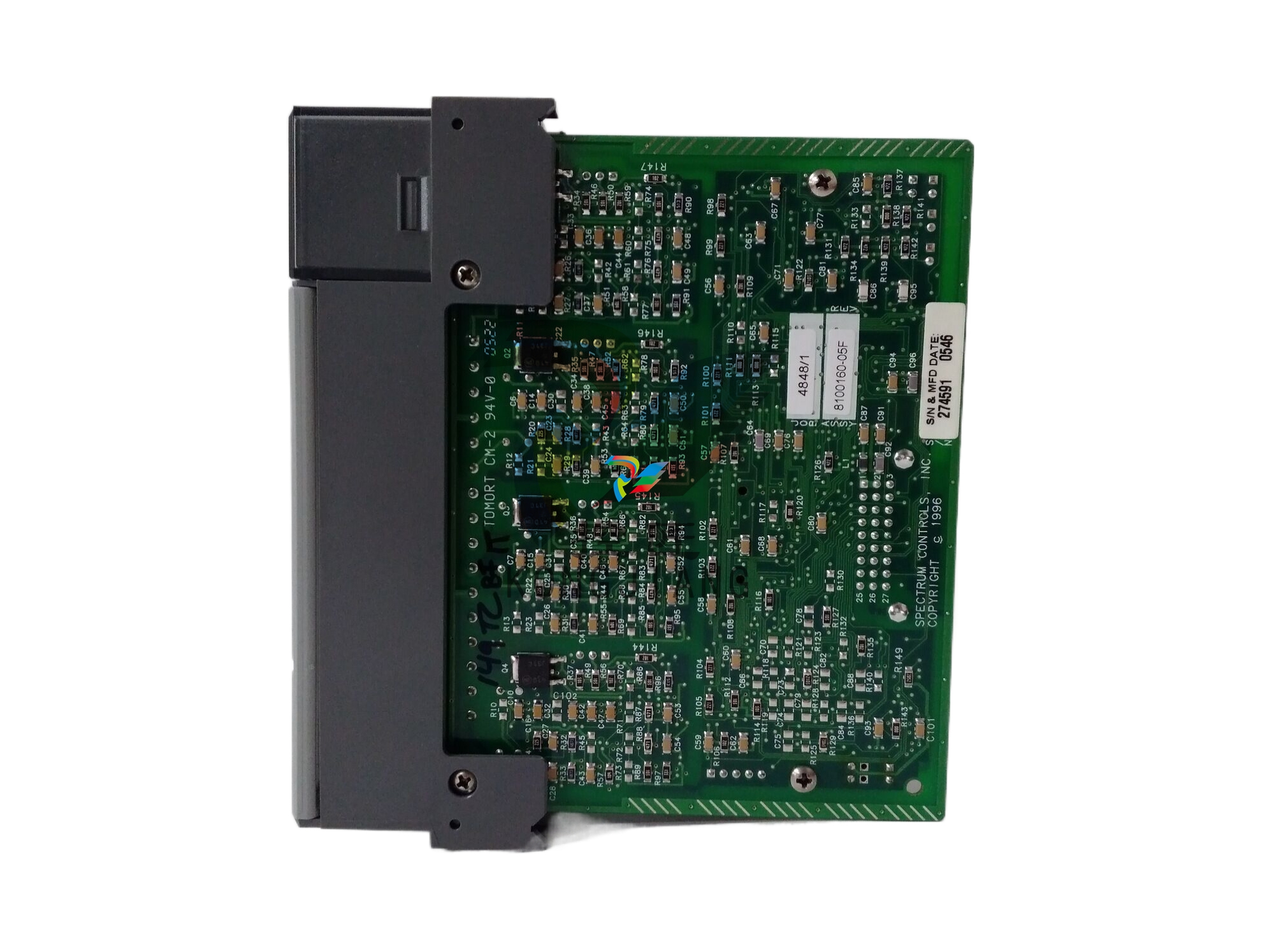

A-B 1746-IB8 Module Rockwell SLC 8 digital inputs

Processor Operation in Case of Blown Fuse - Processor Faults

The Processor Fault position for JP1 is shown on the following page.

For this JP1 configuration, the processor generates a nonrecoverable error for all SLC 500 processors.

For a nonrecoverable error, note the following:

• Processor operation halts and the processor fault light flashes.

• All outputs are reset to OFF.

• The processor major fault bit S:1/13 is set.

• Monitor processor status file word S:6 for error code xx58 for SLC 500 and

5/01 processors, and error code xx60 for SLC 5/02 and later processors.

IMPORTANT

The 1746-OB6EI and 1746-OB16E modules perform auto-reset under

overload conditions. When an output channel overload occurs, that channel

will limit current within milliseconds after its thermal cut-out temperature

has been reached. While in current limit, the output channel can cool below

the thermal cut-out temperature allowing the module to auto-reset and

resume control of the output channel as directed by the processor until the

thermal cut-out temperature is again reached.

Removing power from an overloaded output channel would also allow the

output channel to cool below the thermal cut-out temperature, allowing

auto-reset to occur when power is restored. The output channel would

operate as directed by the processor until the thermal cut-out temperature is

again reached.

To avoid auto-reset of an output channel under overload conditions, an

external mechanical fuse can be used to open the circuit when overloaded.

Install the Chassis Interconnect Cable (optional)

To connect up to three chassis together (for a maximum of 30 I/O slots), install the chassis interconnect cable before attaching your power supply.

Vis M4 ou M5 (n° 10 ou n° 12)

• des vis cruciformes et des rondelles éventail (ou vis SEM, vis cruciforme avec

rondelle éventail imperdable) pour les pattes de fixation du châssis ;

• un tournevis cruciforme ;

• une perceuse.

Documentation

La documentation sur :

• votre processeur ou adaptateur d’E/S ;

• votre bloc d’alimentation ;

• vos modules de communication et/ou modules d’E/S.
