Woodward High Output DVP, 5KW TB Input/Output 8200-538

Woodward  High Output DVP, 5KW TB Input/Output  8200-538

125 Vdc Operation

Description: Digital Valve Positioner (DVP5000 and DVP10000) Models

Power Supply Input: 125 Vdc +20%, –28%

Current Draw DVP5000: 5 A steady state, 40 A peak for 200 ms, 25 A for 30 seconds (during rapid actuator

transient)

(Current draw includes actuator power)

Current Draw DVP10000: 5 A steady state, 40 A for 30 seconds (during rapid actuator transient)

(Current draw includes actuator power)

Output Current: 25 A dc (17.7 A rms) continuous, 40 A peak for 200 ms

Package Heat Dissipation: (With Ethernet Option)

45 W nominal, when the actuator is unpowered.

110 W (preliminary) typical with actuator powered

160 W (preliminary) @ maximum heat load

(Without Ethernet Option)

40 W nominal, when the actuator is unpowered.

105 W (preliminary) Typical with actuator powered

155 W (preliminary) @ maximum heat-load

(This is the heat-load caused by the DVP and occurs when the associated actuator

is driven at full output current.)

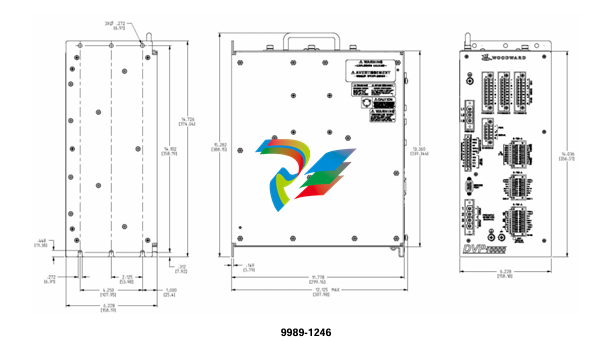

Mechanical Dimensions: Rear Panel Mount DVP5000

388 x 308 x 127 mm (H x D x W) (15.26 x 12.125 x 5.0 inches)

Rear Panel Mount DVP10000

388 x 308 x 158 mm (H x D x W) (15.26 x 12.125 x 6.23 inches)

DVP5000 Weight: 7.9 kg (17.4 lb)

DVP10000 Weight: TBD

220 Vdc Operation

Description: Digital Valve Positioner (DVP5000 and DVP10000) Models

Power Supply Input: 220 Vdc +36%, –15%

Current Draw DVP5000: 5 A steady state, 40 A peak for 200 ms, 25 A for 30 seconds (during rapid actuator

transient)

(Current draw includes actuator power)

Current Draw DVP10000: 5 A steady state, 40 A for 30 seconds (during rapid actuator transient)

(Current draw includes actuator power)

Output Current: 25 A dc (17.7 A rms) continuous, 40 A peak for 200 ms

Package Heat Dissipation: (With Ethernet Option)

40 W nominal

160 W (preliminary) @ maximum heat- load

(This is the heat-load caused by the DVP and occurs when the associated actuator

is driven at full output current.)

(Without Ethernet Option)

40 W Nominal

155 W (preliminary) @ maximum heat-load

(This is the heat-load caused by the DVP and occurs when the associated actuator

is driven at full output current.)

Environmental Specifications (Rear Panel Mount)

Ambient Operating

Temperature: –40 to +70 °C (–40 to +158 °F)

Storage Temperature: –40 to +105 °C (–40 to +221 °F)

Humidity: 0 to 100% non-condensing

Mechanical Vibration: Woodward Specification RV5 (0.04 G²/Hz, 10–500 Hz, 2 hours/axis, 1.04 Grms)

Mechanical Shock: Woodward Specification MS2 (30 G, 11 ms half sine pulse)

EMC/EMI: EN 61800-3: EMC Requirements and Test Methods for Adjustable Speed Electrical

Power Drive Systems (Category 3. 2nd Environment);

Woodward Spec: Conducted Low Frequency Immunity, 50 Hz to 10 kHz

Environmental Protection IP20 per IEC 60529. Must be installed in enclosure or cabinet to provide a minimum

IP54 level of protection against dust and moisture when used in Hazardous

Locations.

Regulatory Compliance

European Compliance for CE Marking:

These listings are limited only to those units bearing the CE Marking.

EMC Directive:

Low Voltage Directive:

ATEX – Potentially

Explosive Atmospheres

Directive:

North American Compliance:

2004/108/EC COUNCIL DIRECTIVE of 15 December 2004 on the approximation of

the laws of the Member States relating to electromagnetic compatibility and all

applicable amendments.

Declared to 2006/95/EC COUNCIL DIRECTIVE of 12 December 2006 on the

harmonization of the laws of the Member States relating to electrical equipment

designed for use within certain voltage limits.

Declared to 94/9/EEC COUNCIL DIRECTIVE of 23 March 1994 on the

approximation of the laws of the Member States concerning equipment and

protective systems intended for use in potentially explosive atmospheres.

Zone 2. Category 3 G, Ex nA IIC T4 X; IP-20

These listings are limited only those units bearing the CSA Identification.

CSA:

CSA Certified for Class I, Division 2. Groups A, B, C, and D, T4 at 70 °C (3-Board

Configuration) and 70 °C (2-Board Configuration) ambient, for use in USA and

Canada, Certificate 160584-1682018

This product is certified as a component for use in other equipment. The final combination is subject to acceptance

by the authority having jurisdiction or local inspection.

Alternative product certifications may be available. Please contact your Woodward representative for details.

High Output DVP, 5KW

TB Input/Output

8200-538

TB Input/Output, SIL Certified

8200-541

TB Input/Output, Servo Interface Module (SIM)

8200-585
