ProTech TPS - Bulkhead Mount Independent Relays 8237-2602

ProTech TPS - Bulkhead Mount  Independent Relays  8237-2602

Description

The ProTech® TPS (Total Protection System) is a safety system that provides specialized overspeed

protection functions plus additional programmable logic and configurable inputs and outputs to address

other safety critical functions.

The ProTech® TPS consists of three independent modules whose trip outputs are either independent or

voted in a 2-out-of-3 configuration.

The ProTech® TPS includes Alarm, Event, and Trip log functions with timestamping. Indication that a test

was active at the time of the event are provided on all logs and first-out indications are provided for Event

and Trip logs. Trip response time monitoring and logging is also built into the ProTech® TPS.

The ProTech® TPS provides various pre-defined and user-definable test features including automated

periodic tests.

There are several ways to interface with the ProTech® TPS. The front panel of allows the user to view

current values and perform certain configuration and test functions. All the features and most of the

information available from the front panel is also accessible via the Modbus® * interface. Finally, the

Programming and Configuration Tool (PCT) is software that is run on a PC to define configurable inputs

and programmable logic, download log files, and manage settings files.

*—Modbus is a trademark of Schneider Automation Inc.

This product is designed for critical applications and when installed correctly meets API-670. API-612.

API-611. and IEC61508 (SIL-3) standards.

The following table shows the various hardware configurations (mounting options, power supplies, and

trip relay options) available:

Table 1-1 Available ProTech® TPS Models

Part Number Description

8237-1248 ProTech TPS, Bulkhead Mount, HV/LV, Indep Relay

8237-1371 ProTech TPS, Panel Mount, HV/LV, Indep Relay

8237-1249 ProTech TPS, Bulkhead Mount, HV/HV, Indep Relay

8237-1372 ProTech TPS, Panel Mount, HV/HV, Indep Relay

8237-1250 ProTech TPS, Bulkhead Mount, HV/LV, voted Relays

8237-1373 ProTech TPS, Panel Mount, HV/LV, voted Relays

8237-1251 ProTech TPS, Bulkhead Mount, HV/HV, voted Relays

8237-1374 ProTech TPS, Panel Mount, HV/HV, voted Relays

5437-1117 Spare Module for 8237-1248 Rev D or later, -1371 Rev B or later

5437-1118 Spare Module for 8237-1249 Rev D or later, -1372 Rev B or later

5437-1115 Spare Module for 8237-1250 Rev E or later, -1373  Rev B or later

5437-1116 Spare Module for 8237-1251 Rev E or later, -1374  Rev B or later

5437-1076 Spare Module for 8237-1248 Rev C or earlier, -1371 Rev A or earlier

5437-1077 Spare Module for 8237-1249 Rev C or earlier, -1372 Rev A or earlier

5437-1066 Spare Module for 8237-1250 Rev D or earlier, -1373 Rev A or earlier

5437-1075 Spare Module for 8237-1251 Rev D or earlier, -1374 Rev A or earlier

Applications

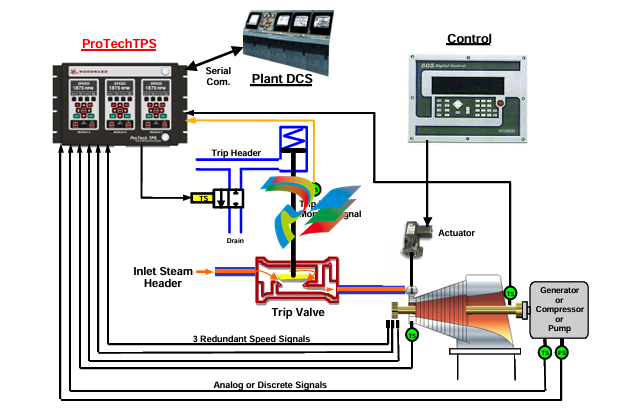

The ProTech® TPS is designed to be applied as a safety system for any size steam, gas, or hydro

turbine, reciprocating engine, or plant process equipment. This safety PLC’s fast (12 millisecond)

response time, 0.5 to 32 000 rpm speed range, and integrated overspeed and acceleration

detection/protection functionality, make it ideal for application on critical low-speed or high-speed rotating

motors, compressor, turbines or engines. This standalone safety device accepts 10 discrete or analog

inputs per module (30 total) and one speed (MPU or PROX) input (3 total). Each ProTech® TPS module

provides 3 programmable relay outputs (9 total) and an analog speed output (3 total) in addition to the trip

relay outputs. Configurable logic allows the customization required to meet specific application

requirements to ensure plant protection.

The ProTech® TPS utilizes a triple modular redundant architecture and 2-out-of-3 voting logic to

accurately determine unsafe conditions and ensure that no single-point failure will affect system reliability

or availability. With this design, system failures (switches, transducers, modules) are detected,

annunciated, and allowed to be repaired or replaced while the monitored system continues to operate

on-line.

Alternatively, this standalone safety device can be configured to protect any plant system or device and

report the system’s device’s status to the plant DCS. The ProTech® TPS control’s versatile inputs,

outputs, programming environment, and communications make it ideal as a safety protection device for

use in small applications that could possibly reach an unsafe state or condition and that must

communicate directly to the plant DCS. The ProTech® TPS is designed for critical applications where

both personnel safety and unit availability (operation run time) is a concern or necessity.

ProTech TPS - Bulkhead Mount, HV/LV, Independent Relays

8237-2602

ProTech TPS - Bulkhead Mount, HV/HV, Independent Relays

8237-2603

ProTech TPS - Bulkhead Mount, HV/LV, Voted Relays

8237-2604

ProTech TPS - Bulkhead Mount, HV/HV, Voted Relays

8237-2605

ProTech TPS - Panel Mount, HV/LV, Independent Relays

8237-2606

ProTech TPS - Panel Mount, HV/HV, Independent Relays

8237-2607

ProTech TPS - Panel Mount, HV/LV, Voted Relays

8237-2608

ProTech TPS - Panel Mount, HV/HV, Voted Relays

*Documentation: Product Spec: 03371. Manuals: 35059V1. 35059V2. 26712

8237-2609
