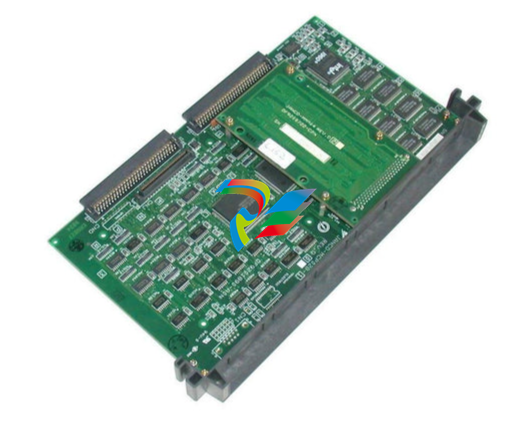

Yaskawa JANCD-MCP02B-1 Multi-Axis Control Panel / Operator Interface

Controls up to 21 Axes

Synchronized Control of 2 Robots

Programming Capacity 2.200 pos (Could be Extended to 60.000 pos)

(48) I/O Signals (Could be Extended to 144)

The Motoman MRC Robot System can control 21 axes and synchronise the motions of two robots.

The MRC introduced some new functions well suited for machine handling and necessary when synchronising two robots: e.g. Multi tasking, servofloat and S-move.

MRC also made it possible to edit robot jobs from an ordinary PC, so called offline programming.

Allthough it had been possible to read robot jobs as text files before, it was only now possible to return changes made in the PC or even send completely new programs to the controller.

Product Overview

The YASKAWA JANCD-MCP02B-1 is a high-performance multi-axis control panel designed for Yaskawa servo drives and motion control systems.

Engineered for precision, durability, and user-friendly operation, the JANCD-MCP02B-1 enables seamless control of robotic arms, CNC machinery, and automated production lines.

This panel is widely used in industrial automation, packaging, material handling, and assembly applications where accurate motion control and rapid response are critical.

The YASKAWA JANCD-MCP02B-1 features an ergonomic design with intuitive operator interfaces, allowing for real-time adjustment, monitoring, and configuration of Yaskawa servo systems.

Built for industrial environments, it offers resistance to vibration, temperature fluctuations, and electrical noise, ensuring reliable and continuous operation.

Its compact and modular construction simplifies integration into existing control cabinets and motion control setups.

Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands.

We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!

Technical Specifications

Parameter    Value

Product Model    JANCD-MCP02B-1

Manufacturer    Yaskawa

Product Type    Multi-Axis Control Panel / Operator Interface

Control Axes    Up to 2–4 axes (depending on configuration)

Interface    RS-232 / RS-485 / EtherCAT compatible

Mounting Style    Panel / Cabinet Mount

Operating Temperature    0°C to +50°C

Protection Rating    IP20

Display    LCD / LED indicators for system status
