Phoenix 2866585 QUINT-DIODE/48DC/40 - Redundancy module, with protective coating

2866585 QUINT-DIODE/48DC/40 - Redundancy module, with protective coating

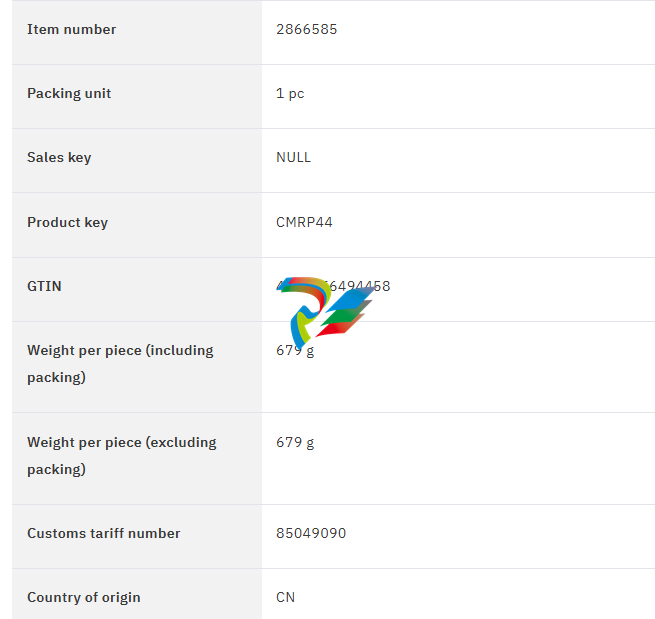

QUINT-DIODE/48DC/40 redundancy module

DC operation

Input voltage    48 V DC (UN)

< 60 V DC (Umax)

Input voltage range    10 V DC ... 60 V DC

Input voltage range DC    10 V DC ... 60 V DC

Voltage type of supply voltage    DC

Reverse polarity protection    yes, < 120 V

Nominal input current (IN)    2x 20 A

1x 40 A

Maximum current Imax    2x 19 A (6 mm² at 40°C)

1x 39 A (6 mm² at 40°C)

2x 16 A (6 mm² at 60°C)

1x 32 A (6 mm² at 60°C)

2x 27 A (10 mm² at 40°C)

1x 54 A (10 mm² at 40°C)

2x 21 A (10 mm² at 60°C)

1x 43 A (10 mm² at 60°C)

2x 30 A (16 mm² at 40 °C)

1x 60 A (16 mm² at 40 °C)

2x 24 A (16 mm² at 60°C)

1x 48 A (16 mm² at 60°C)

Nominal input current (IN)    2x 20 A

1x 40 A

Maximum current Imax    2x 17 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 35 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

2x 14 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 28 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

2x 24 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 49 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

2x 19 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 39 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

2x 27 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 54 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

2x 22 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

1x 44 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2. Groups A, B, C, D; T4)

Transient surge protection    Transil diode

Voltage drop, input/output    approx. 0.7 V

Efficiency    > 97 %

Nominal output voltage    47.3 V DC (Input/output voltage drop of 48 V ... 0.7 V )

Nominal output current (IN)    40 A

Power loss nominal load max.    28 W

Connection in series    no

Connection method    Screw connection

Conductor cross-section, rigid min.    0.5 mm²

Conductor cross-section, rigid max.    16 mm²

Conductor cross-section flexible min.    0.5 mm²

Conductor cross-section flexible max.    10 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    6

Stripping length    10 mm

Screw thread    M4

Tightening torque, min    1.2 Nm

Tightening torque max    1.5 Nm

Output

Connection method    Screw connection

Conductor cross-section, rigid min.    0.5 mm²

Conductor cross-section, rigid max.    16 mm²

Conductor cross-section flexible min.    0.5 mm²

Conductor cross-section flexible max.    10 mm²

Conductor cross-section AWG min.    20

Conductor cross-section AWG max.    6

Stripping length    10 mm

Screw thread    M4

Tightening torque, min    1.2 Nm

Tightening torque max    1.5 Nm

Insulation voltage output / PE    1 kV

Insulation voltage input / PE    1 kV

Product family    QUINT DIODE

LED    no

Insulation characteristics

Protection class    II

Degree of pollution    2

Width    62 mm

Height    84 mm

Depth    102 mm

Horizontal pitch    3.4 Div.

Installation dimensions

Installation distance right/left    5 mm / 5 mm

Installation distance top/bottom    50 mm / 50 mm

Mounting type    DIN rail mounting

Assembly note    alignable: horizontal 20 mm, vertical 50 mm

Mounting position    horizontal and vertical DIN rail NS 35. EN 60715

Housing material    Metal

Type of housing    AIMg (hood), GD-ZnAICu (cooling unit)

Ambient conditions

Degree of protection    IP20

Ambient temperature (operation)    -25 °C ... 70 °C (> 60 °C derating,  -25 ... 60°C)

Ambient temperature (storage/transport)    -40 °C ... 85 °C

Max. permissible relative humidity (operation)    ≤ 95 % (at 25 °C, non-condensing)

Shock    30g, 18 ms in accordance with IEC 60068-2-27

Vibration (operation)    3 Hz ... 15 Hz, amplitude ±2.5 mm; 15 Hz ... 100 Hz, 2.3g according to IEC 60068-2-6

Temp code    T4 (70 °C)

Declaration of conformity in acc. with EN 60079-15     II 3 G Ex nA II T4 X

Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations    EN 50178/VDE 0160 (PELV)

Standard - Electrical safety    EN 60950-1/VDE 0805 (SELV)
